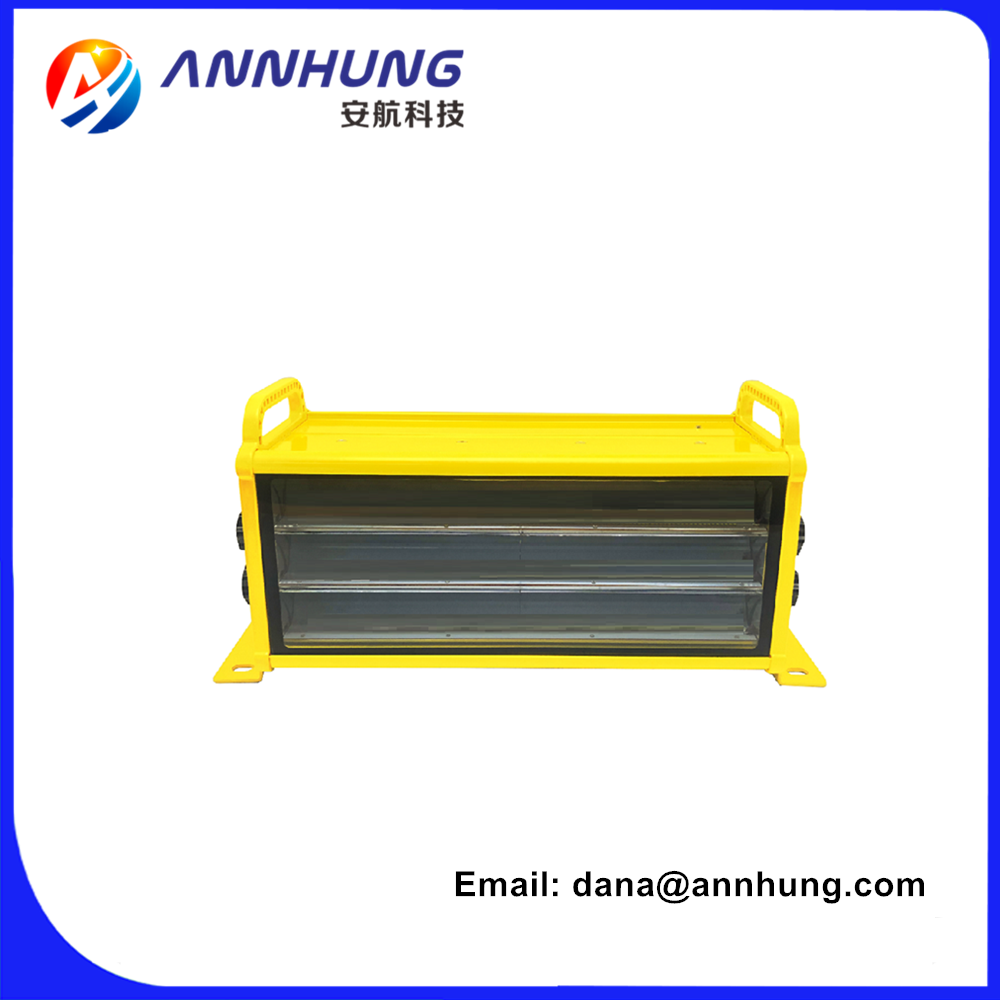

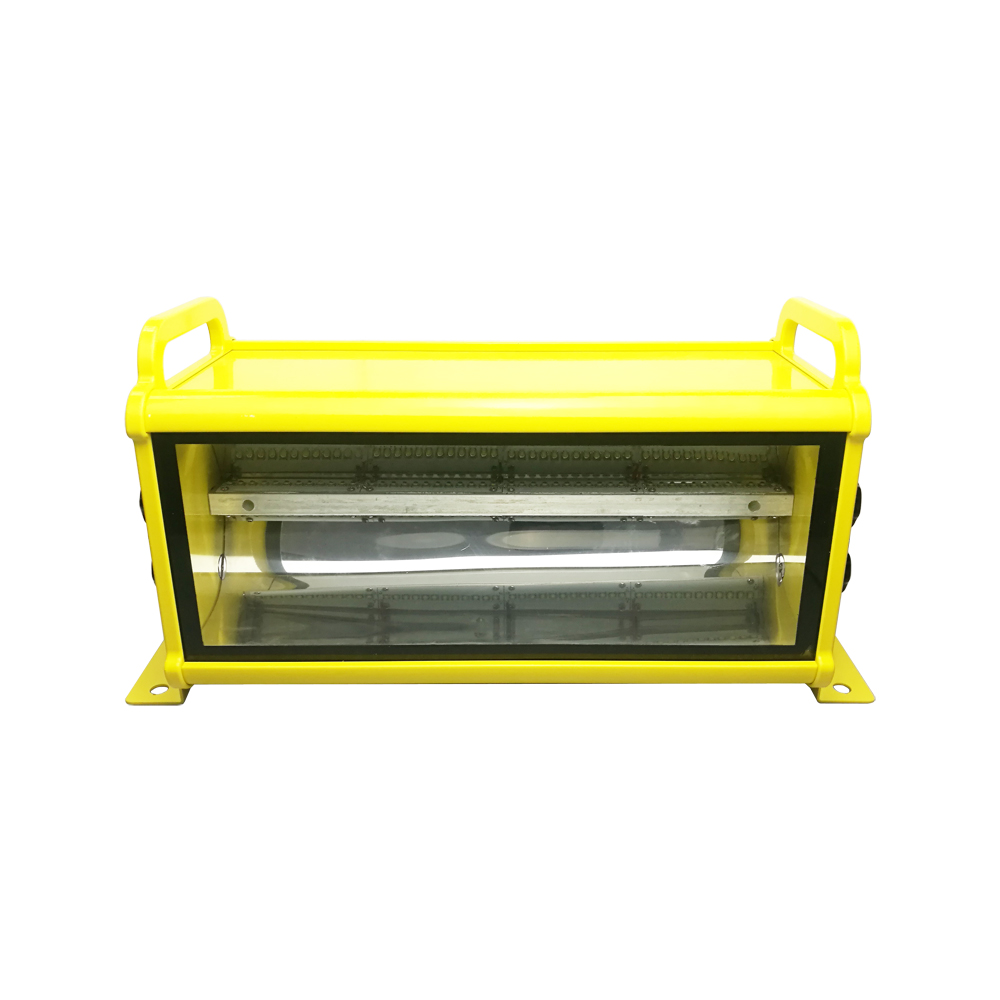

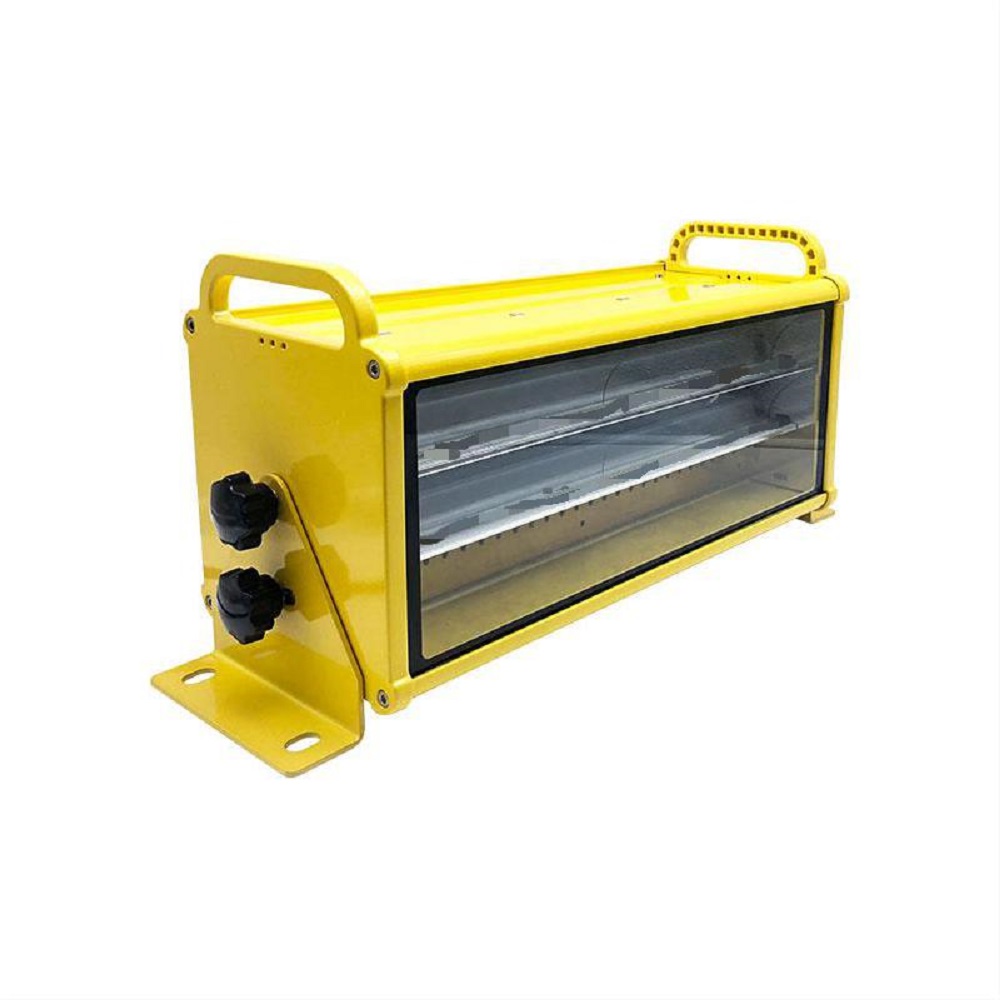

LED High-Intensity Aviation Obstruction Light

FOB Price:	866.00 - 999.00 USD/Piece
Supply Ability:	2,000 Piece(s) per Month
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Type: Aviation Obstruction Lights
Brand Name: ANNHUNG
Light Source: LED
Emitting Color: White
IP Rating: IP67
Type: High-intensity
Model Number: AH-HI-A0
Lamp Body Material: Aluminum Alloy

Specifications

AH-HI-A0 LED High-intensity Type A Aviation Obstruction Light

this High-intensity Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 High Intensity Type A Obstruction Light

FAA L-856, L-857

Features

Electrical

CREE ultra high intensity LED as light source saving power

Power supply available in DC(48V) or AC(110V, 240V)

Physical

Unique design and UV protected polycarbonate lens for converging light and saving LED power

UV protection Powder coated bright yellow color base make better visibility

System design

Surge and lightning protection

Optional

GPS synchronization

Solar powered system

Application

AH-HI-A0 High-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower place.

Description	Parameter
Light Source	LED
Flash Characteristics	40-60FPM(40fpm as factory setting)
Operation Mode	24hours operation, 3 different modes
LED Life Experience(hours)	>100,000
Intensity(CD)	≥200,000cd(Daytime) (ICAO Type A) Optional: 270,000cd±25%(Daytime) (FAA L-856) ≥20,000cd(Twilight) ≥2,000cd(Night)
Horizontal Output(degrees)	90
Vertical Divergence(degrees)	3-7
Operating Voltage	DC(48VDC) or AC(110, 240V) or others
Ambient Temperature(℃)	-55~55
Storage temperature(℃)	-55~70
Humidity	0%-100%
Wind Speed	80m/s
Waterproof	IP66
Average Power(W)	76W(40fpm)

LED Highintensity Aviation Obstruction Light
