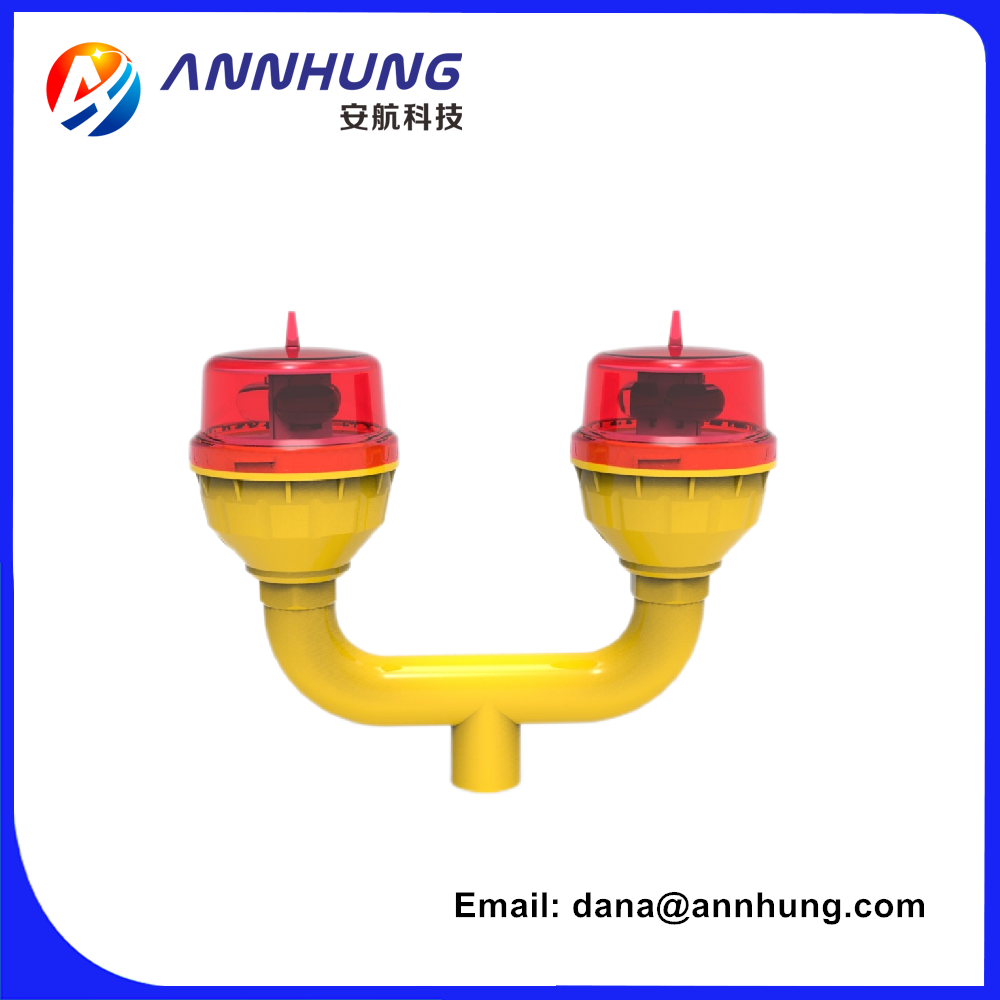

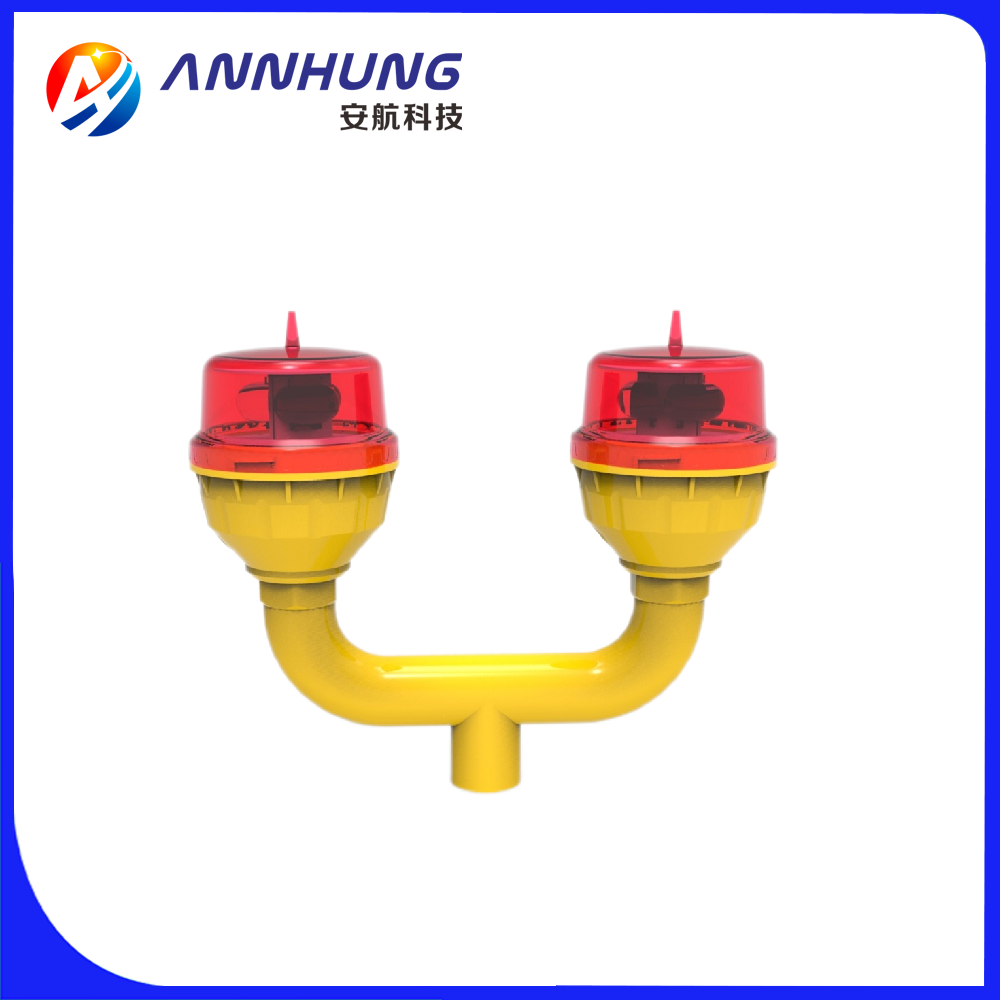

LED Low-Intensity L810 Double Aviation Obstruction Light

FOB Price:	129.00 - 199.00 USD/Piece
Supply Ability:	2,000 Piece(s) per Month
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Type: Aviation Obstruction Lights
Brand Name: ANNHUNG
Light Source: LED
Emitting Color: Red
IP Rating: IP66
Type: Low - Intensity
Model Number: AH-LI-D2

Specifications

Low Intensity Double LED Aviation Obstruction Lights/Aircraft Warning Lights

this LED Low-intensity Double light is a steady burning (20/30/60fpm is adjustable) aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.

Main-standby mode ensure the obstacle is always marked even one light fail.

Compliance:

** ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B /E Obstacle Light

** FAA L-810

Electrical

CREE LED, make sure LED keep bright while use for long time

Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC

Physical

Bird deterrent spike on top

Unique designed PMMA lens for converging light and good transparency.Save your power.

High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing. Better quality for your projects.

UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments()

Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

3/4inch thread hole make pole installation easy

No screw fix type - just twist, the cover will be fixed tightly. It's convenient for test.

System design

Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2

Steady/20FPM/30FPM/60FPM DIP switches on PCB. Meet your needs to different useages.

Surge and lightning protection

Main-standby mode, when the main light fail, the standby light automatically switch on to ensure the obstacle is always clearly marked.

Optional

Alarm contact(Dry contact- NO COM NC) for remote monitoring

Infrared LED for pilot using NVG. If you are interested, contact me now!

Application

AH-LI-D2 low-intensity safe aviation warning light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m. Compliance FAA L810

Light Source	LED
Available Colors	Red
Intensity(CD)	> 32cd (Support customized)
Reflector Type	Fresnel Lens
Flash Characteristics	Steady/20/30/60fpm adjustable
Easy test	Just twist, the cover will be fixed tightly
Body Material	Polycarbonate
Base Material	Die-casting aluminum
Mounting	3/4inch
Dimension(mm)	25421090
Weight(kg)	1.5
Product Life Expectancy	5 years Plus
Humidity	10%-95%
Wind Speed	240Km/h
Waterproof	IP66
ICAO	Annex 14 Volume 1,'Aerodrome Design and Operations' Sixth edition 2013, table 6.3
FAA	L-810
