Volke Automation Control Co., Ltd.
China Manufacturer with main products: Flow Switch, Flow Sensor, Pressure Sensor, Temperature Sensor, Liquid Level Sensor, Moisture in Oil Sensor, Generator Carbon Brush Dust... |
for Industrial Machinery Water Oil Flow Sensor Switch for Water Pump
| FOB Price: | 190.00 - 230.00 USD/Box |
|---|---|
| Supply Ability: | 3,000 Box(es) per Month |
| Shipping: | others |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton |
Quick Details
- Flow Rate: 0.03 ~3m/s
- Operating Temperature: -10~60
- Media Type: Liquid
- Brand Name: VOLKE
- Float Materials: SS304

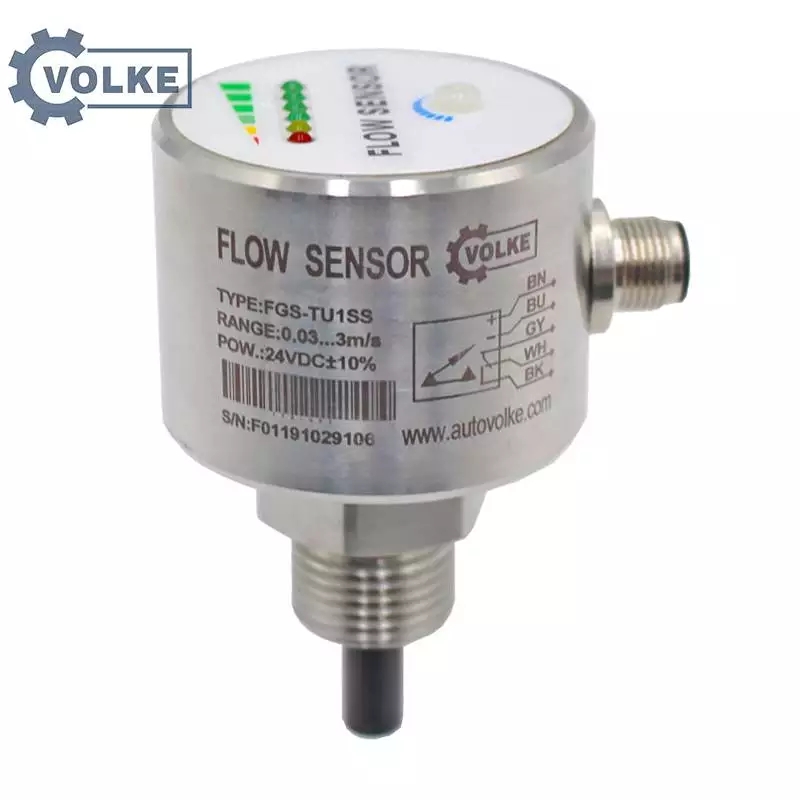

- Model Number: FGS
Specifications

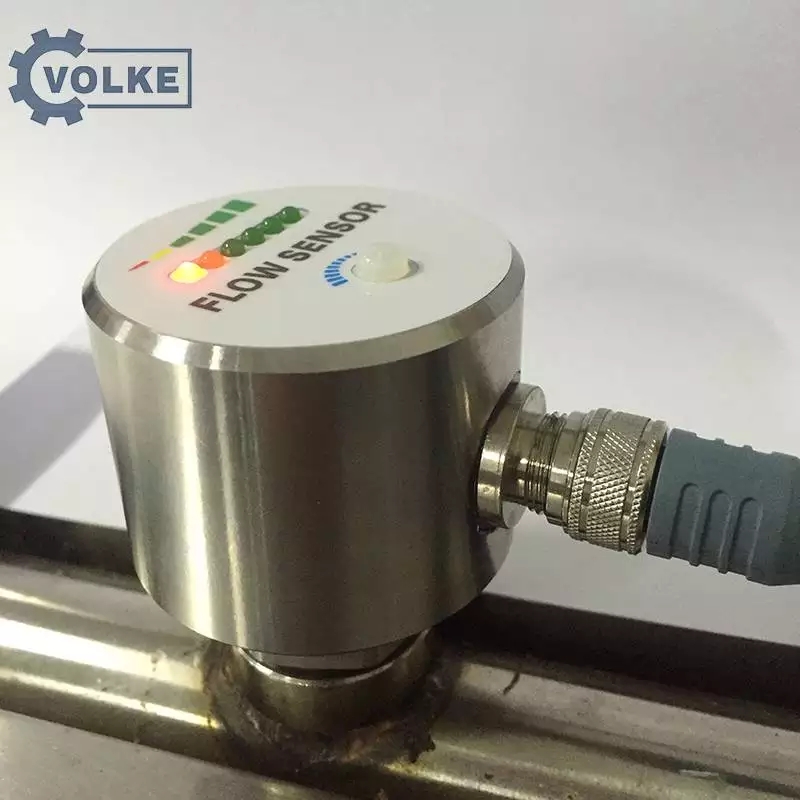

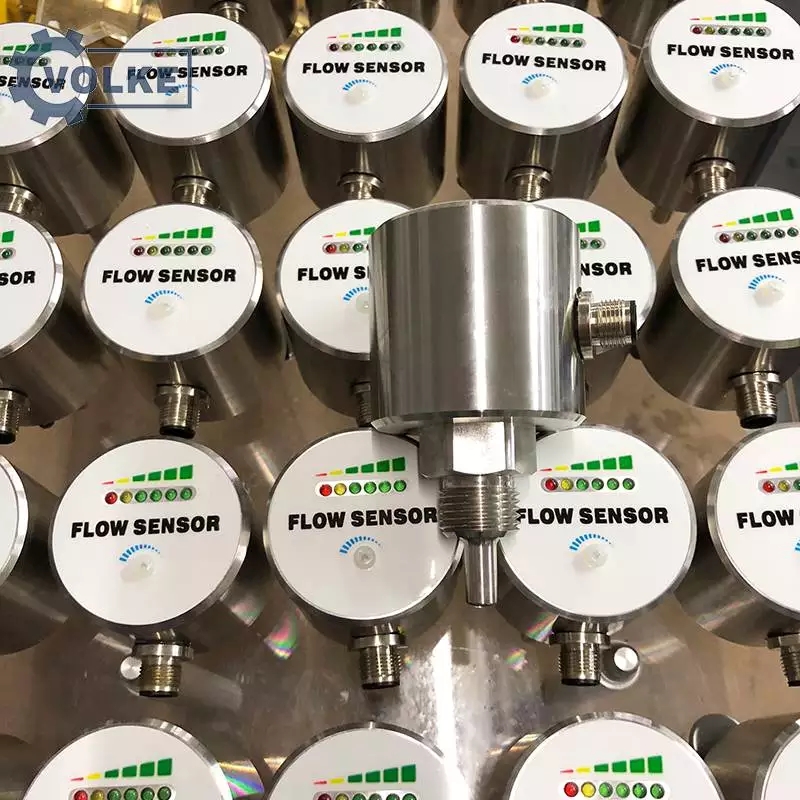

FGS thermal conductivity flow switch monitors the liquid flow in the pipeline in real time, provides switching output, and 6 LEDs display the fluid status in real time, which can realize the following monitoring functions: medium reduction/increase flow rate; medium presence/absence; medium flow/static. It is suitable for monitoring the fluid velocity and flow cutoff in the pipeline to prevent the idling of the pump. It is widely used in petrochemical, electric power, metallurgy, steel mills, papermaking, food processing, water treatment, battery factories and other industries.
the working principle of FGS flow switch:

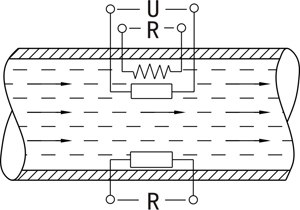

FGS thermal conductivity flow switch is designed based on the principle of heat exchange.
the probe has a built-in heating module and a heat-sensing module. the heat conduction of the flow switch is closely related to the flow rate of the medium.
during measurement, the heating module emits heat according to the working principle of the thermal conductivity flow switch. If there is no medium flowing in the pipe, the heat received by the thermal module is a fixed value; when there is a medium flowing, the heat received by the thermal module It will change with the flow rate of the medium, and the thermal module converts the temperature difference signal into an electrical signal, and then converts it into a corresponding standard analog signal or contact signal output through the processor, and the flow switch uses this signal to control the flow rate of the medium. Display and control.
Its characteristics:
the anti-fouling coating of the probe can effectively prevent the adhesion of scale, rust and other dirt in the pipeline, and has stronger anti-fouling ability.
the fully waterproof shell design is suitable for a large range of pipe diameters, and the set point can be adjusted arbitrarily.
Effectively prevent entanglement.

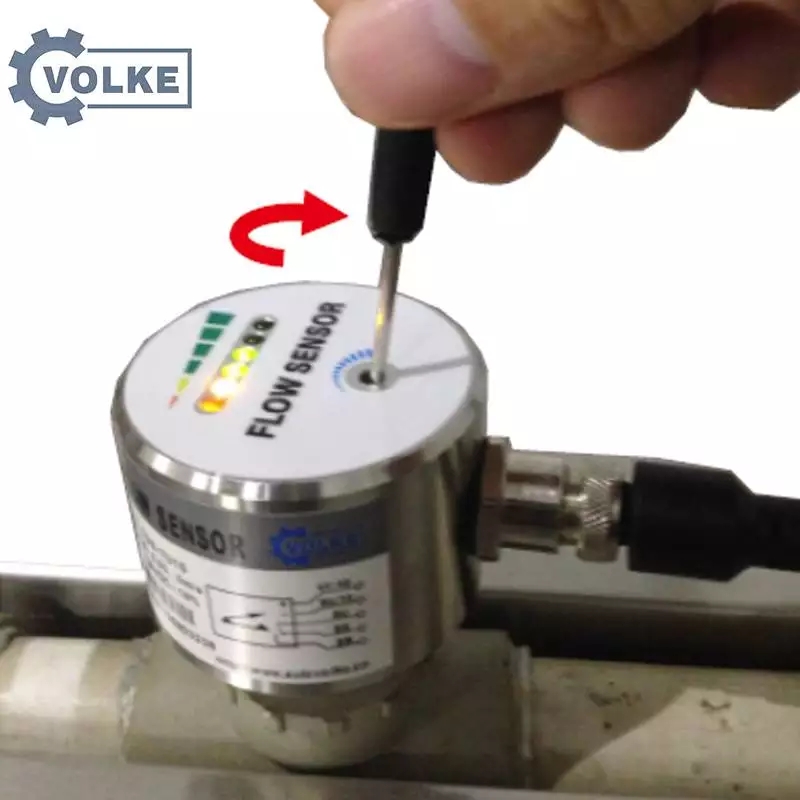

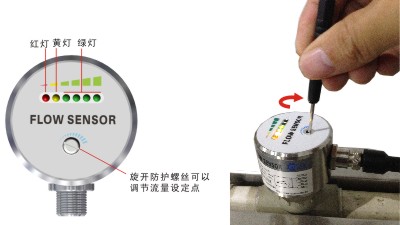

FGS thermal flow switch can easily set the flow alarm node, unscrew the protective screw, and use the provided screwdriver to adjust the setting knob to set the flow alarm point. for the flow switch whose output form is P N P, N P N and relay, the meaning of its LED indication is as follows:
- Red light on Flow rate below set point (transistor not conducting/relay not operating)
- Yellow light on Flow rate equal to or higher than set point (transistor on/relay action)
- Yellow and green lights the extent to which the flow rate exceeds the set point (green lights 1, 2, 3 or 4 are on together with the yellow lights)
Technical parameter:
Measuring range:
Water: 0.03 ~3 m/s;
Oil: 0.03 ~3 m/s;
Air: 2 ~ 20 m/s
Withstand voltage: 4 M P a (special 6 0 M P a)
Temperature change response time: ≤1 2 s

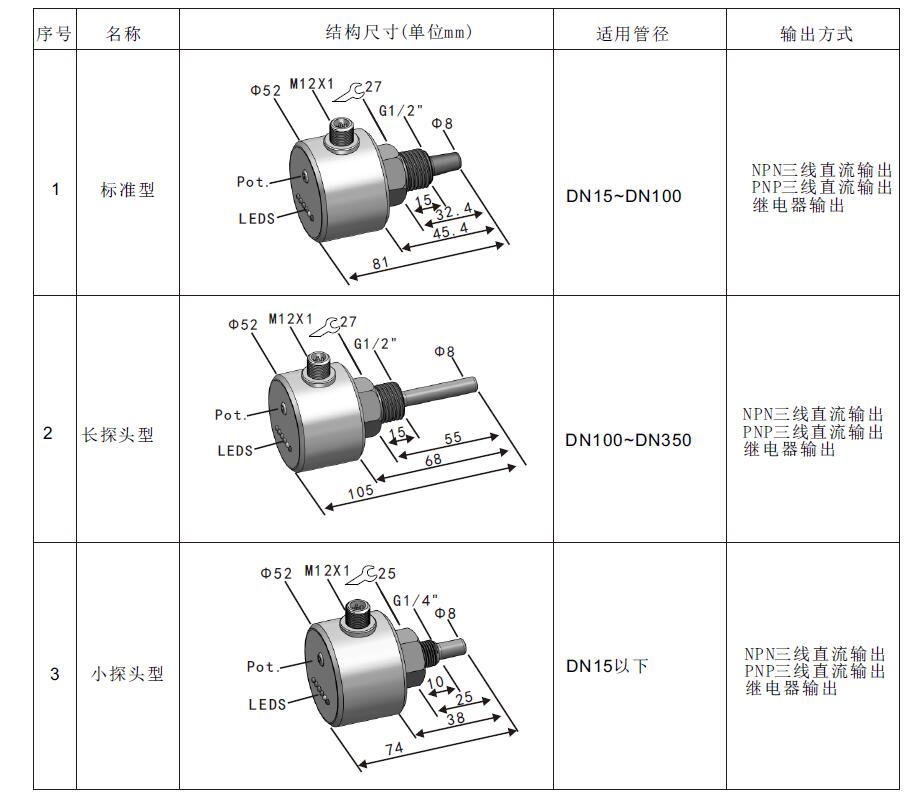

Connection: Thread G 1 / 2 ", G 1 / 4 ", other
Switching time: on: Typical ≥4 s (1 ~1 3 s);
O F F: Typical ≥4 s (1 ~1 5 s)
Operating voltage: DC 2 4 V, AC / DC 2 2 0 V
Power consumption: 2 W, output: relay, N P N / P N P output
Contact capacity: 0.4 A / 1 2 5 V A C, 2 A / 3 0 V D C
Insulation resistance: 50 MΩ at 100 V DC
Probe material: 304 stainless steel, housing material: 304 stainless steel
Working temperature: - 10℃- 60℃
Environmental conditions: - 2 0 ~8 5℃,≤8 5 % RH
Protection class: IP 6 7
