High Sensitivity Stainless Steel Material Sensor Electronic Water Pump Flow Switch

FOB Price:	350.00 - 400.00 USD/Box
Supply Ability:	3,000 Box(es) per Month
Shipping:	others
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Carton

Quick Details

Flow Rate: 0.03 ~3m/s
Operating Temperature: -10~60
Media Type: Liquid
Brand Name: VOLKE
Float Materials: SS304
Model Number: FGI

Specifications

FGI flow and temperature integrated sensor can monitor the liquid flow and temperature in the pipeline in real time, provide flow 4-20mA signal and alarm switch output, temperature 4-20mA signal and alarm switch output, and use digital LED to display fluid in real time Flow rate and temperature, and can be set to alarm through the meter to connect the output to realize the integrated monitoring function of temperature and flow in the pipeline. It is widely used in petrochemical, electric power, metallurgy, steel mills, papermaking, food processing, water treatment, battery factories and other industries.

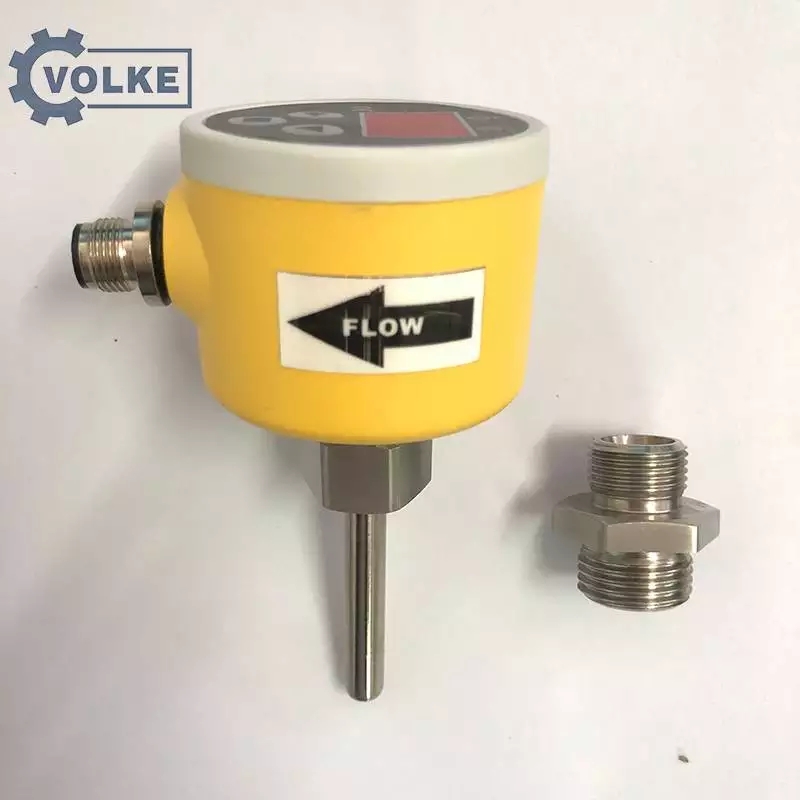

High Sensitivity Stainless Steel Material Sensor Electronic Water Pump Flow Switch

FGI flow temperature integrated sensor features:

1. the temperature transmitter controller and the flow switch are integrated.
2, digital LED display flow and temperature.
3. Intelligent flow display and alarm contacts.
4. Intelligent temperature display and alarm contact.
5. Flow and temperature 4-20mA output can be switched.

Technical parameter:

Flow parameters

Measuring range: Water: 0.03 ~1.5 m/s
Oil: 0.03 ~3 m/s
Display: 3-digit digital LED display
Switching time: on: ≥5 s (1 ~ 1 3 s); O F F: ≥ 5 s (1 ~ 1 5 s)
Output: One alarm contact, 4 - 20 mA (configurable)
Contact capacity: 0.1 5 A / 1 2 5 V A C, 0.5 A / 3 0 V D C
Insulation resistance: 50 MΩ at 100 V DC
Alarm Contact Type: Relay, N P N, P N P
Measuring range: -1 0 ~8 0 ℃, customized

Temperature parameter

Display: 3-digit digital LED display
Output: One alarm contact, 4 - 20 mA (configurable)
Contact capacity: 0.1 5 A / 1 2 5 V A C, 0.5 A / 3 0 V D C
Insulation resistance: 50 MΩ at 100 V DC
Alarm Contact Type: Relay, N P N, P N P

Other parameters

Display: 3-digit digital LED display
Operating voltage: 24V DC
Protection class: IP 6 5
Power consumption: 3 W (2 4 V DC)
Shell material: P P
Interface: M 1 8 X 1.5 internal thread
Environmental conditions: - 2 0 ~8 5 ℃, ≤ 8 5 % RH
Probe material: 304 stainless steel

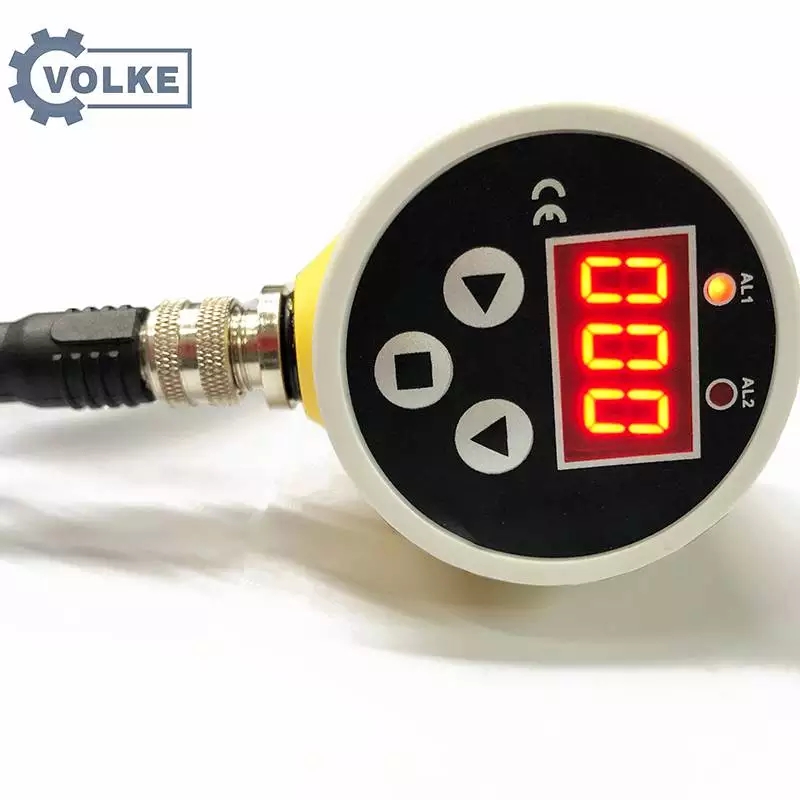

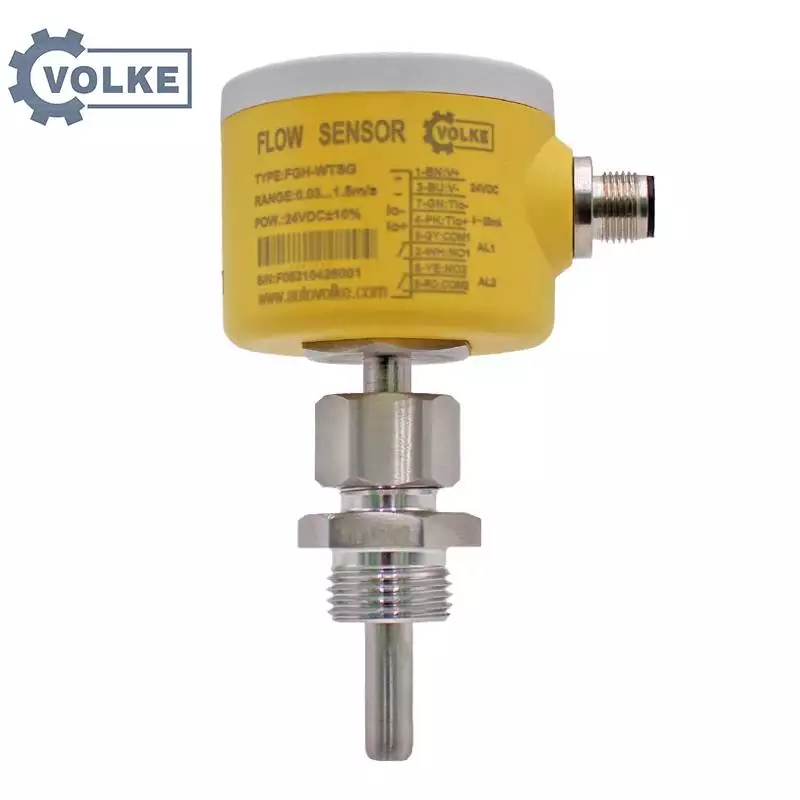

High Sensitivity Stainless Steel Material Sensor Electronic Water Pump Flow Switch
