| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | carton |
Quick Details
- Brand Name: VOLKE
- Usage: Thread G1 / 4, G1 / 2, m20x1 five
- Output: RS485/4-20mA
- Theory: Ceramic or stainless steel pressure sensing element
- material: 304 / 316L stainless steel
- Model Number: PXW
Specifications

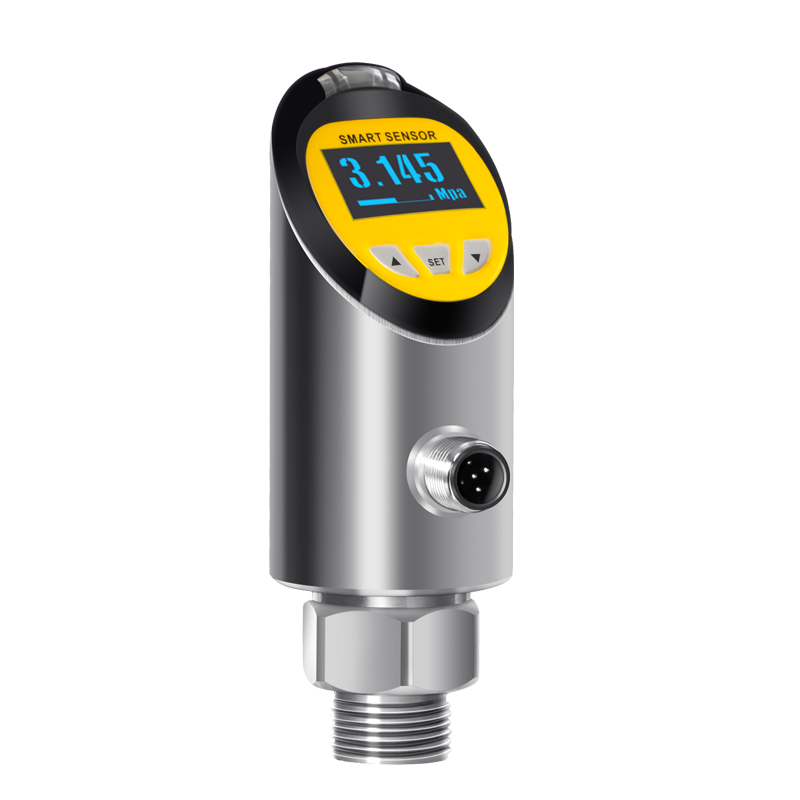

Pxw intelligent pressure transmission controller, easy to install, OLED display meter. It is applicable to the measurement of gauge pressure, absolute pressure and negative pressure of gas and liquid media and the same measurement of temperature. It is widely used in pressure measurement in petroleum, chemical industry, metallurgy, electric power, hydrology and other industries.
Pxw intelligent pressure transmission controller features:
1. Self luminous OLED; the display is clear and sharp
2. High precision pressure core; Good stability and long service life
3. Chinese + graphical interface; Fool menu
4. Digital communication; Analog integrated
5. Temperature self compensation; Wider adaptation
6. Dual alarm contact output
7. Damping design; Strong impact resistance
8. Ceramic or stainless steel pressure sensing element; Good corrosion resistance and high protection grade
9. Mobile phone code scanning installation guidance function; Online engineer professional service without instructions
Main technical parameters:
Range: - 0.1 0~0MPa (Max)
Working voltage: 18 ~ 36VDC
Output signal: 4 ~ 20mA, RS485
Output contact: 2

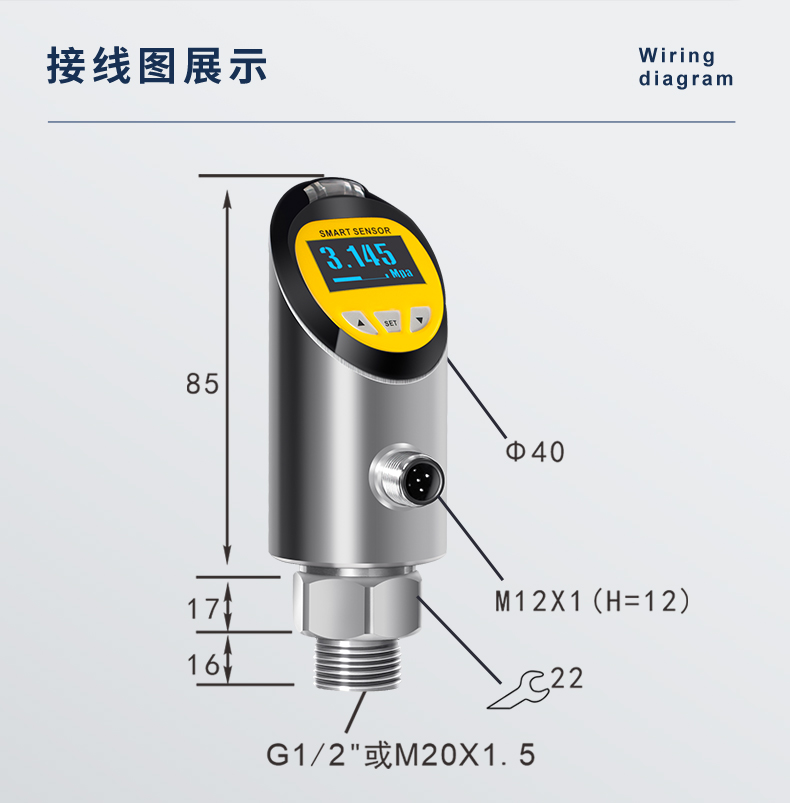

Interface mode: thread G1 / 4, G1 / 2, m20x1 five
Accuracy grade: 0.1, 0.2, 0.5
Temperature influence: ± 0.07% FS / 10 ℃
Stability: ± 0.10% FS / year
Display: OLED display
Overvoltage capacity: 1.25 times of the measuring range
Insulation impedance: 100M Ω at 100VDC
Load impedance: < 500 Ω
Shell material: 304 stainless steel
Medium temperature: - 20 ℃ ~ 85 ℃
Protection grade: IP67
