China -ValFLUX/ Bo Flow - External Clip Ultrasonic Flowmeter -X3

FOB Price:	300.00 - 800.00 USD/Set
Supply Ability:	5,000 Set(s) per Month
Shipping:	Shenzhen Yantian Port Group Co.Ltd
Payment Terms:	D/P, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

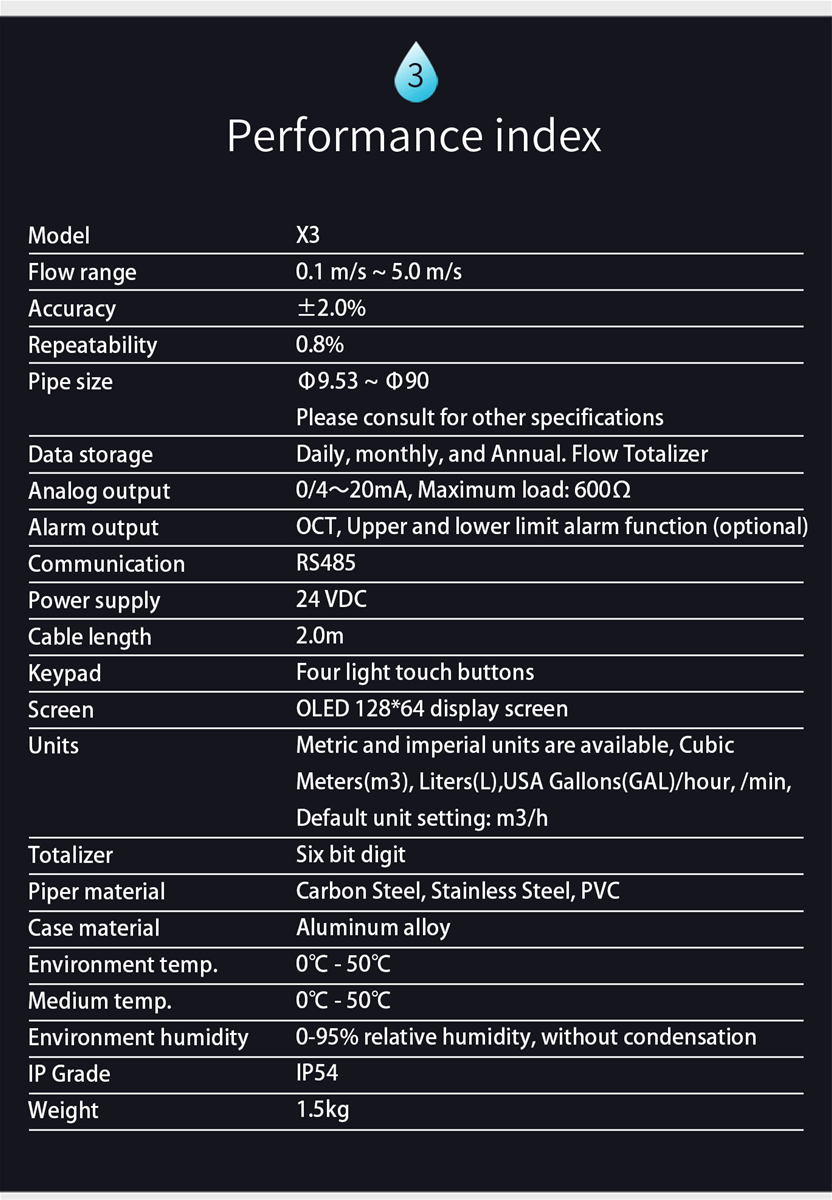

Brand Name: ValFLUX
Accuracy: 2%
Power Supply: 24 VDC
output: 4-20mA and RS485
Medium: liquid
Model Number: X3

Specifications

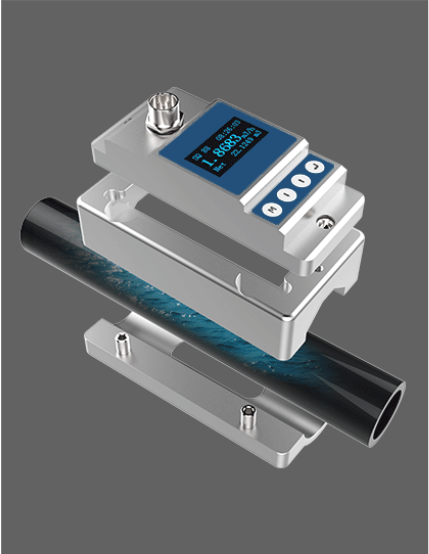

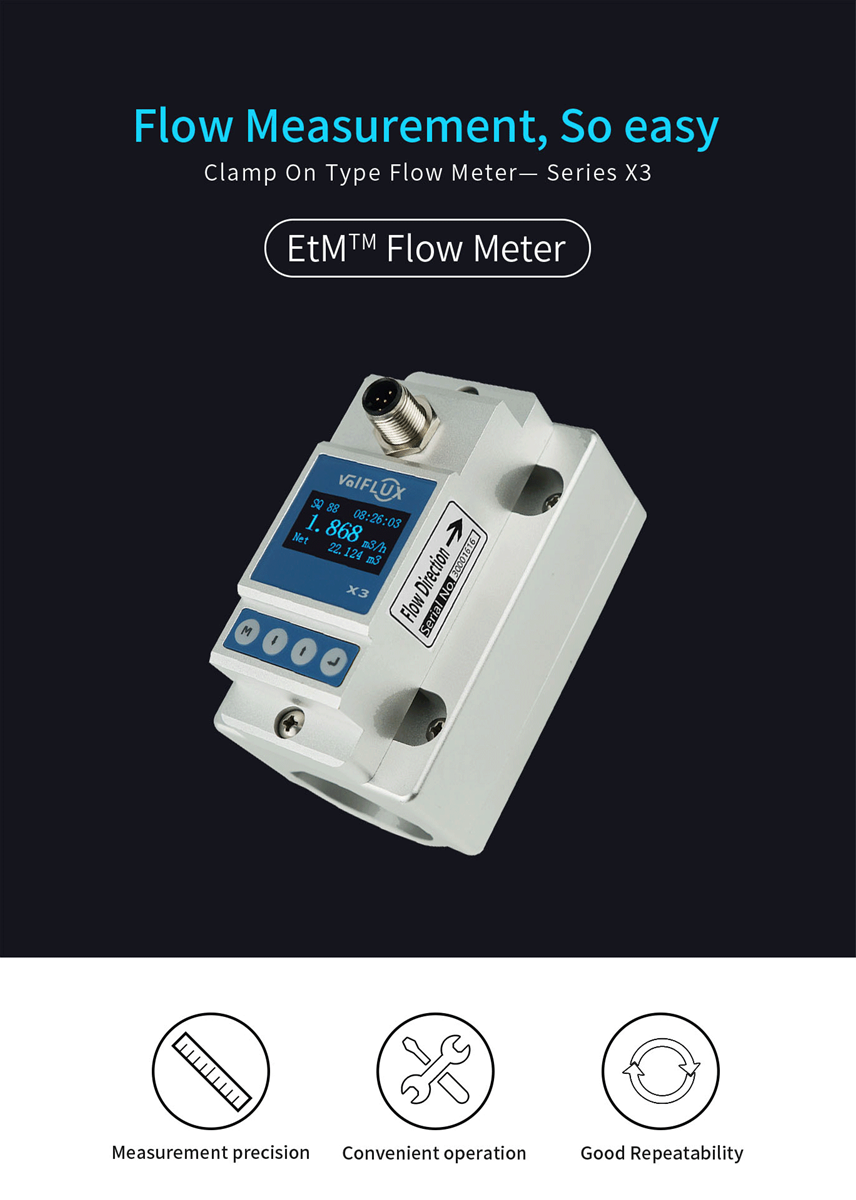

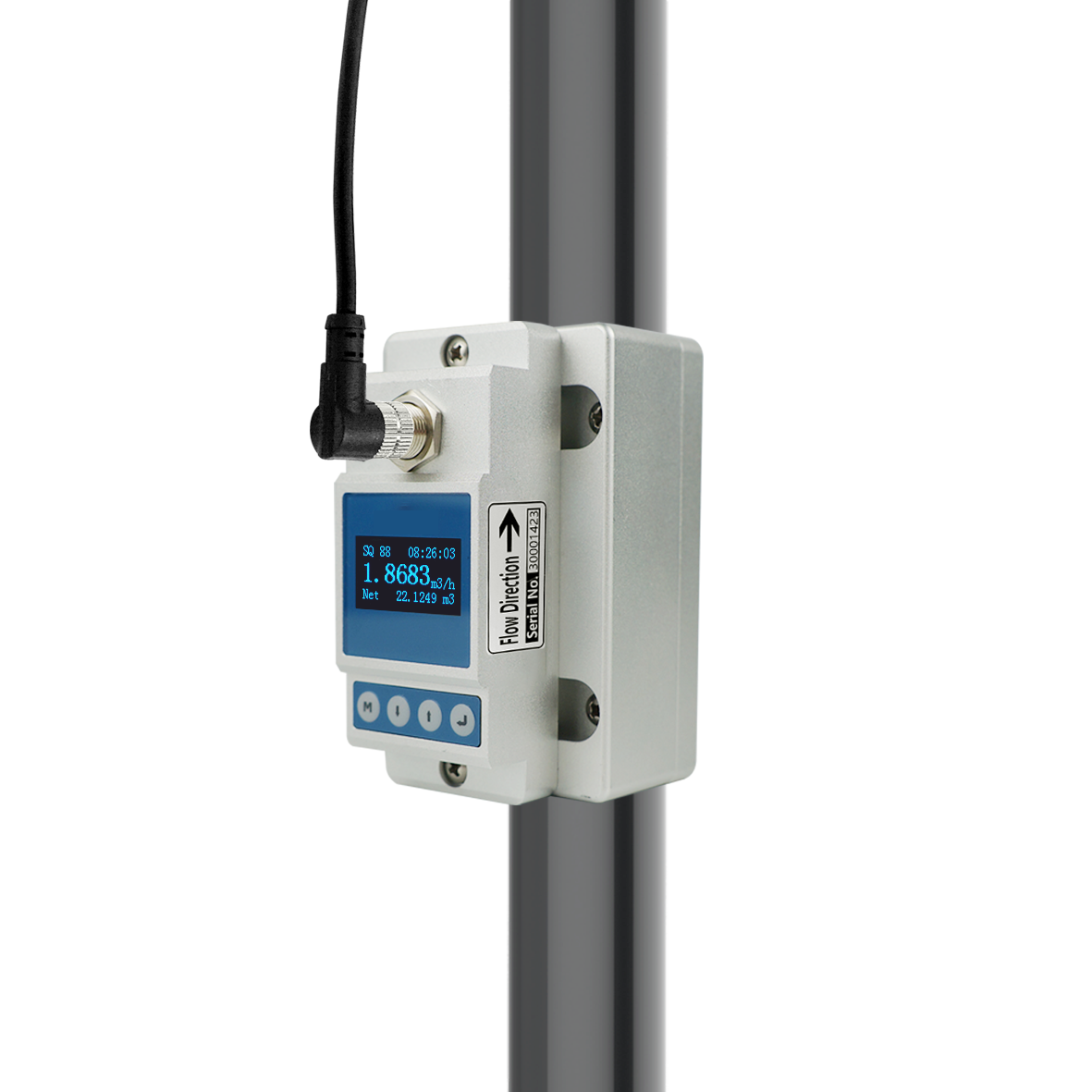

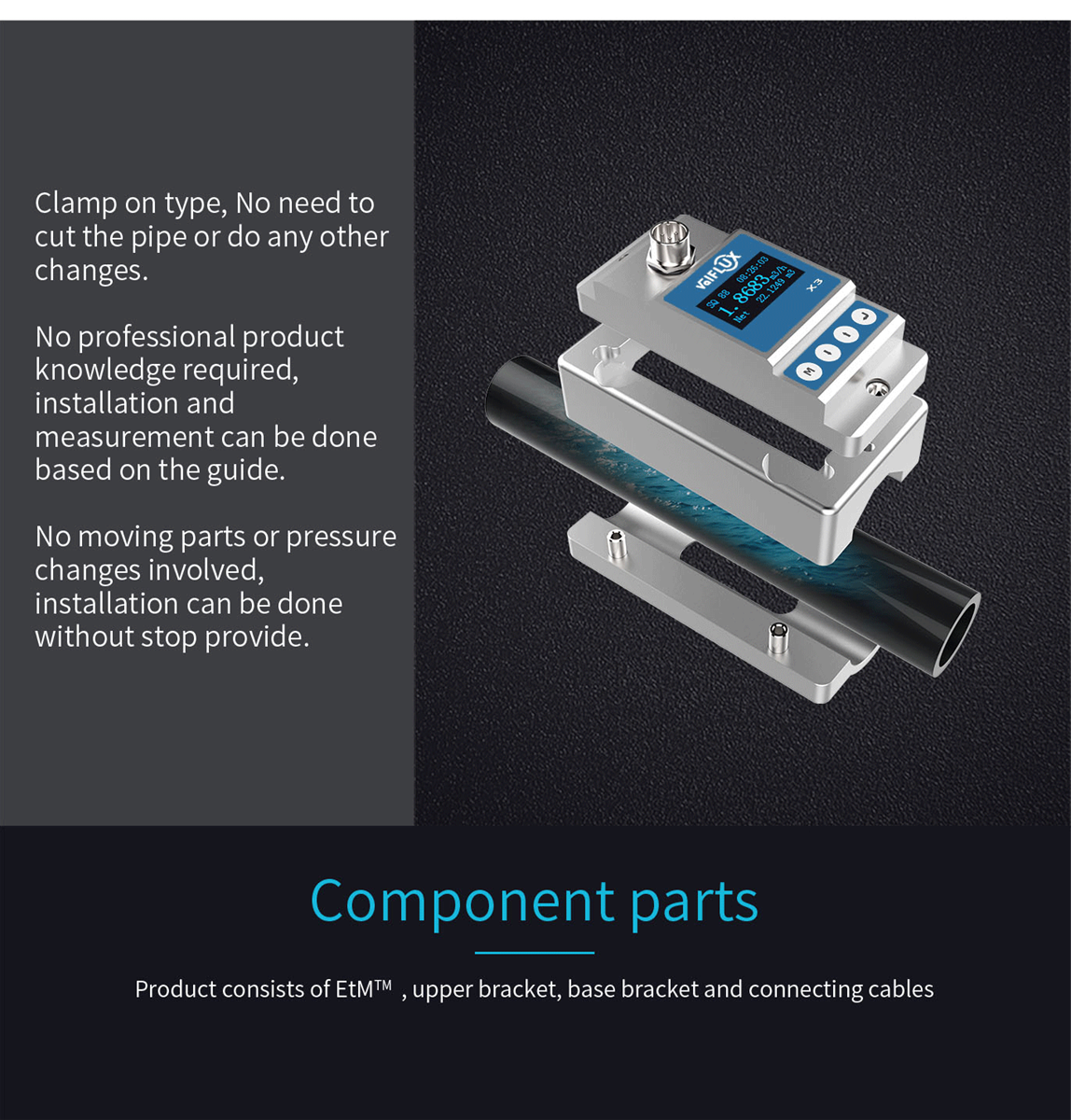

X3 is a clamp type ultrasonic flowmeter designed for measuring small pipe diameter, which solves the problem that the external clamp type flowmeter is not suitable for installation and measurement instability on the small pipe diameter.

in order to ensure the numerical stability of measurement, X3 adopts the world time measurement chip (time resolution 50 picoseconds), with strong anti-interference ability and improved sampling accuracy.

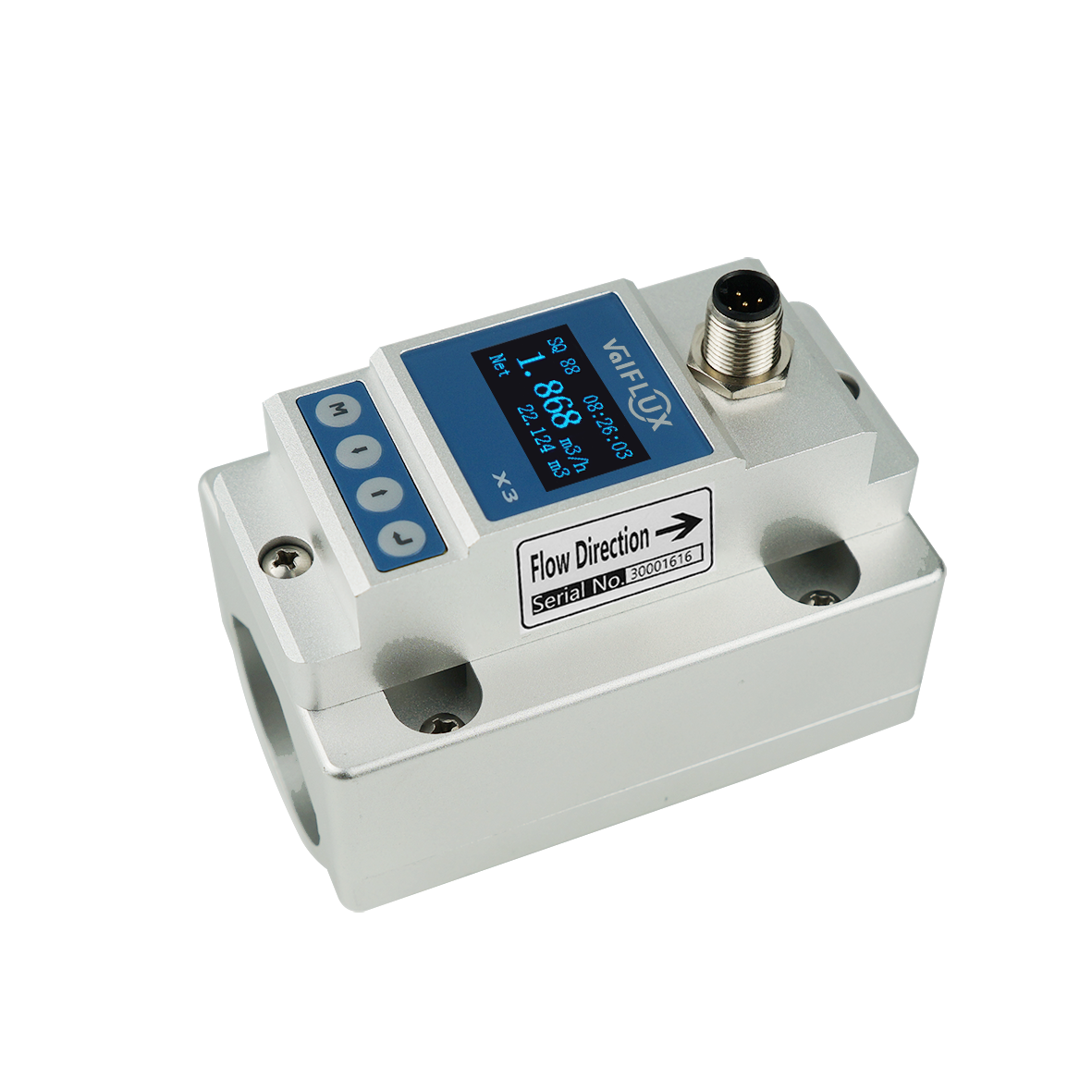

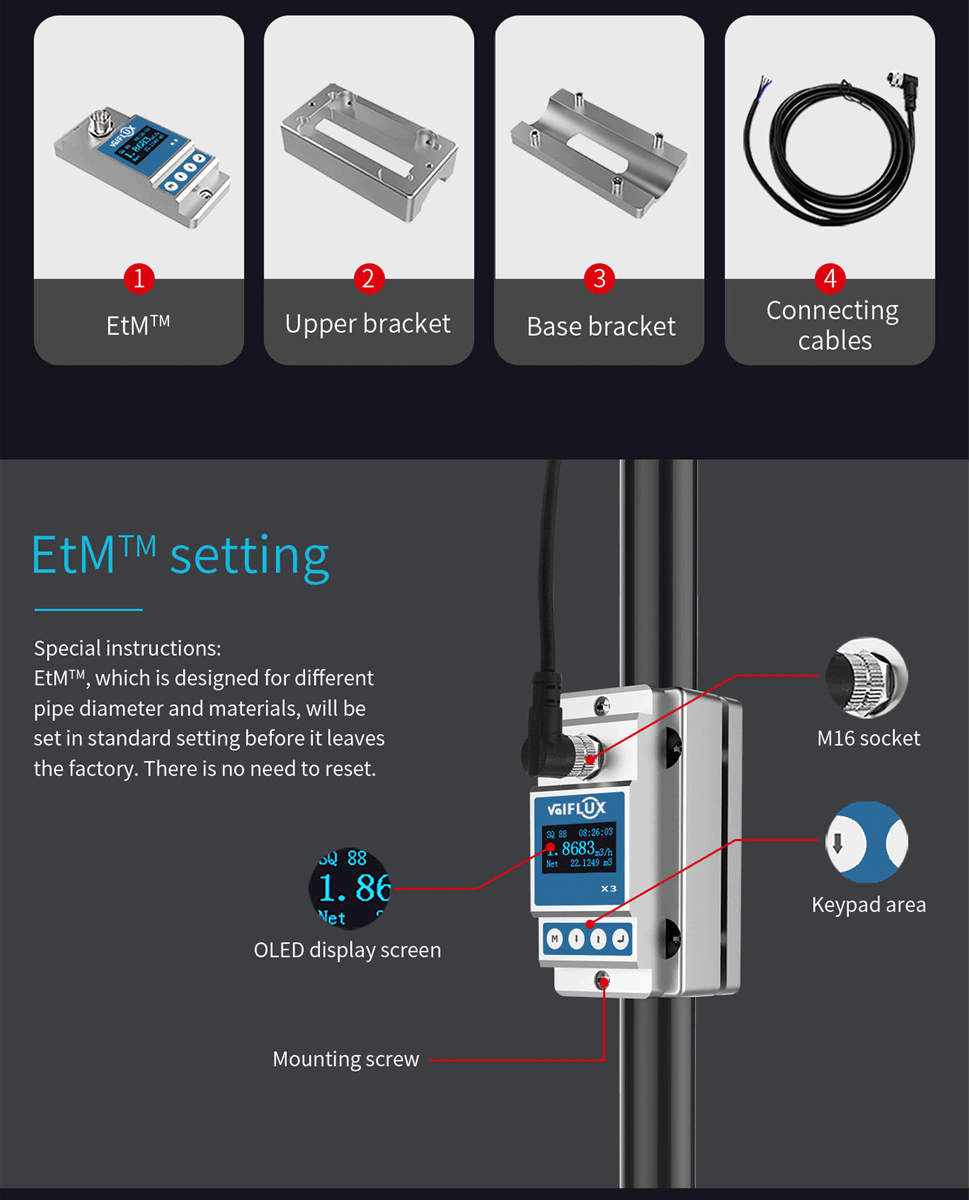

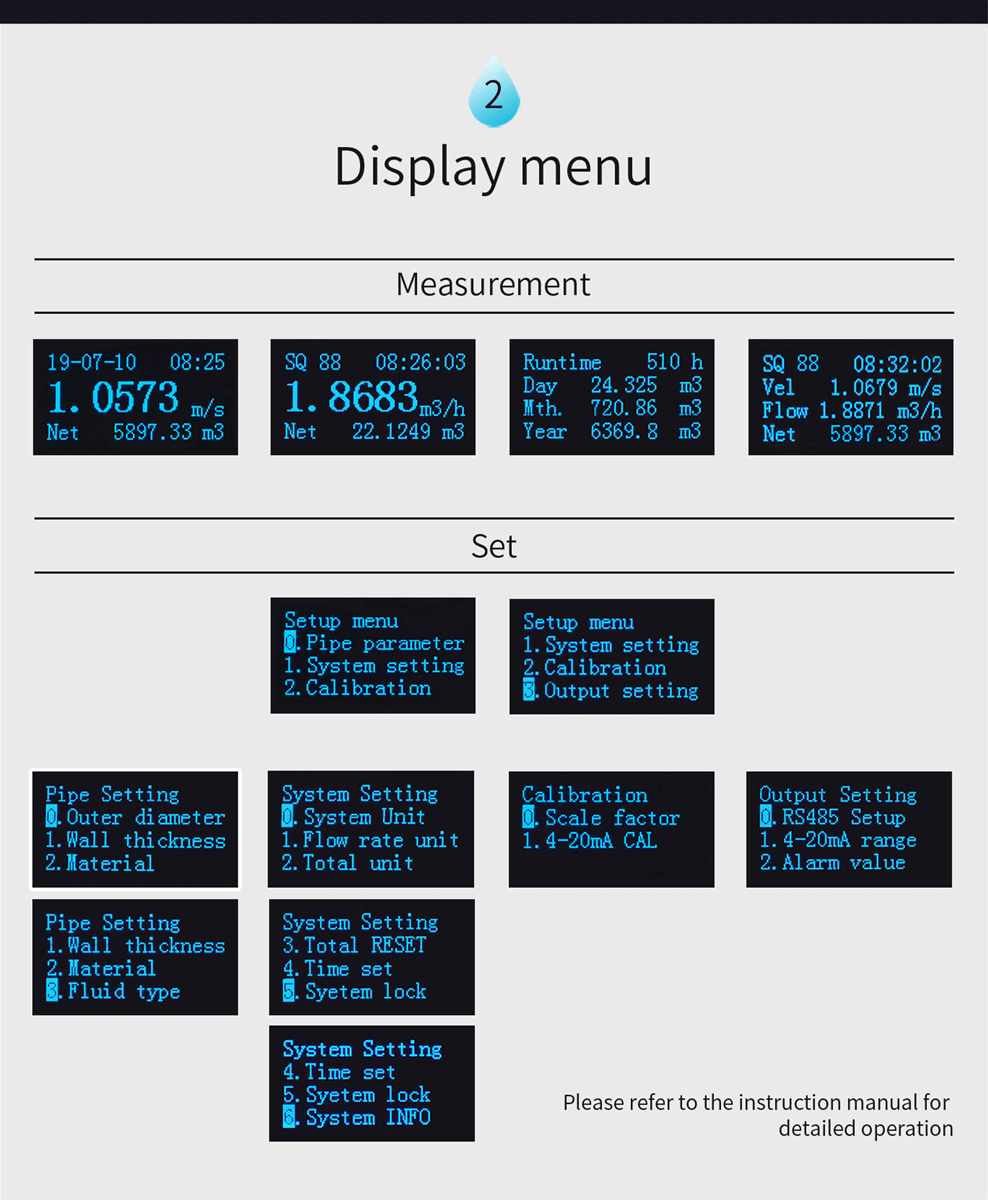

X3 host uses OLED display and has its own self-luminous display. the product is installed in a dim location or dark environment, and data can be viewed at a glance without any other facilities.

X3 supports 4-20MA and RS-485 communication protocol, simple and convenient to implement. Rs-485 connects local network and multi-branch communication link, and the transmission distance can reach 1.5km. Supports communication protocols such as OCT, LoRa, and BACnet.

X3 is suitable for a variety of pipe requirements: stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe (PVC, PVDF, PPR, PPH, HDPE, etc.)

X3 can also meet different cleaning fluid measurement: various acids, chemical solvents, alcohol, beverage water, Coca Cola, etc.
