Cast Iron Floor Plate Surface Platform CNC Machine Table Manufacturer

FOB Price:	5000.00 - 10000.00 USD/Set
Supply Ability:	10,000 Set(s) per Year
Shipping:	by sea

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Place of Origin:	Shanxi in China
Packaging Details:	by wooden case

Quick Details

Dimensions: 4000*2000*250
Material: Iron
Application: CNC machine centre
Brand Name: Jinggong
Type: Industry
Model Number: 004

Specifications

Jinggong Cast Iron Layout Plates are used in the dynamic test and debugging of equipments, engines, electric motors and so on. They have well plane stability and tenacity.

T-slots are available on their surface for fixing the experimental equipment.

Usually the layout plates installed at the ground level.

If need large-scale, joint several pieces together is ok.

L Material: GG20-GG30 (HT-200-HT-300).

L Standard: flatness according to and T-slots according to .

L Specification: 750x1000-3000x8000mm or customize.

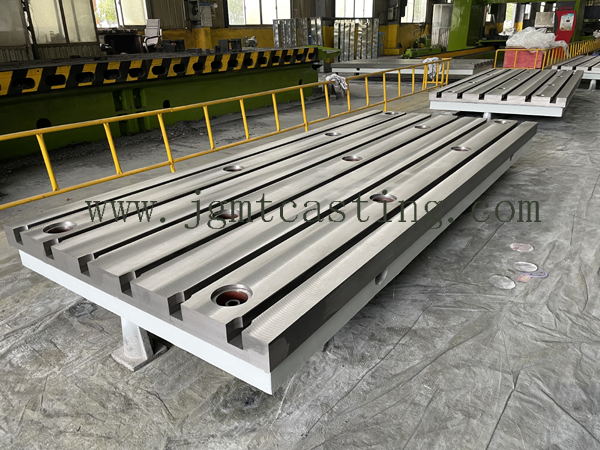

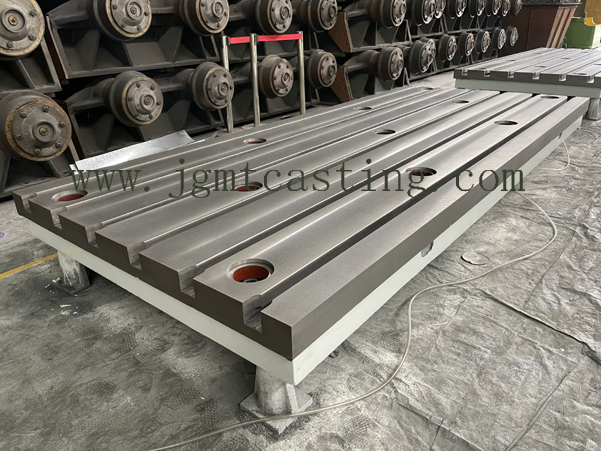

cast iron floor plates

Standard sizes for reference:

No.	Sizes (mm)	Surface accuracy (according to )
1	20002000300	I/II/III
2	25002000300	I/II/III
3	30002000300	I/II/III
4	35002000300	I/II/III
5	40002000300	I/II/III
6	45002000300	I/II/III
7	50002000300	I/II/III
8	55002000300	I/II/III
9	60002000300	II/III
10	65002000300	II/III
11	70002000300	II/III
12	80002000300	II/III

Other sizes and surface accuracy on request!

Large plates can be connected by single piece as following:

L(mm)		W(mm)
		2000	2500	3000	3500	4000
3500	3500	2000	1250+1250	1500+1500	1500+2000	2000+2000
4500	4500
5500	5500
6500	6500
7500	7500
8500	4000+4500
9500	4000+5500
10500	4000+6500
11500	4000+7500
12500	4000+4000+4500
13500	4500+4500+4500
14500	4000+4000+6500
15500	4000+4000+7500
16500	4500+4500+7500
17500	5500+5500+6500
18500	5500+6500+6500
19500	6500+6500+6500
20500	6500+6500+7500
