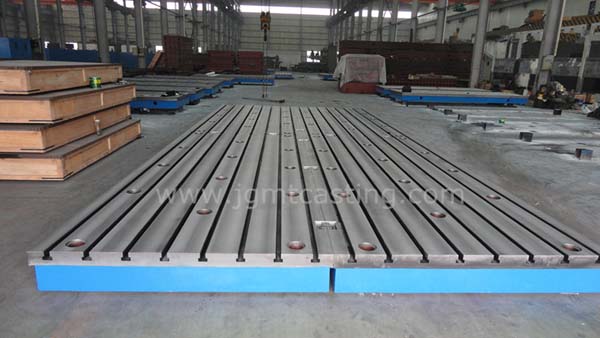

Cast Iron Clamping Tables Marking-off Platform For Grinding Centre

FOB Price: 5000.00 - 10000.00 USD/Set
Supply Ability: 10,000 Set(s) per Year
Shipping: by sea
Payment Terms: L/C, T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shanxi in China
Packaging Details: by wooden case

Quick Details

  • Dimensions: 4000*2000*250
  • Material: Iron
  • Application: CNC machine centre
  • Brand Name: Jinggong
  • Type: Industry
  • Model Number: 007

Specifications

Jinggong Cast Iron T-slot Tables are specially configured to suit customer requirements. the design, dimensions, and loading capacity of the plate can be tailored to suit the size and weight of the work pieces to be clamped.



the number and shape of the ribs can be adjusted to suit the specified loading requirements. the size of the T-slots in the plates is determined by the customer's requirements in strength, tensile and compression.

 cast iron rivet welding plates

Standard sizes for reference:

No.

Sizes (mm)

Surface accuracy

(according to )

1

2000*2000*300

I/II/III

2

2500*2000*300

I/II/III

3

3000*2000*300

I/II/III

4

3500*2000*300

I/II/III

5

4000*2000*300

I/II/III

6

4500*2000*300

I/II/III

7

5000*2000*300

I/II/III

8

5500*2000*300

I/II/III

9

6000*2000*300

II/III

10

6500*2000*300

II/III

11

7000*2000*300

II/III

12

8000*2000*300

II/III

Other sizes and surface accuracy on request!

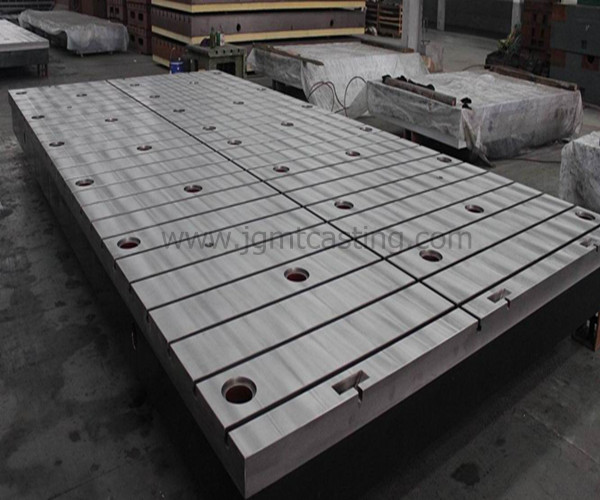

Big table and plates can be divided by several parts as following:

L(mm)

W(mm)





2000

2500

3000

3500

4000

3500

3500

2000

1250+1250

1500+1500

1500+2000

2000+2000

4500

4500

5500

5500

6500

6500

7500

7500

8500

4000+4500

9500

4000+5500

10500

4000+6500

11500

4000+7500

12500

4000+4000+4500

13500

4500+4500+4500

14500

4000+4000+6500

15500

4000+4000+7500

16500

4500+4500+7500

17500

5500+5500+6500

18500

5500+6500+6500

19500

6500+6500+6500

20500

6500+6500+7500
