UK Perkins Diesel Generator 50kva 40kw Powered by 1103A-33TG2 Engine Silent Type with Automatic Transfer Switch
| FOB Price: | 7499.00 - 9199.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set(s) per Month |
| Shipping: | by sea FOB Qingdao |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | plywood cases |
Quick Details
- Rated Power: 50KVA / 40KW
- Frequency: 50HZ/60HZ
- Speed: 1500rpm/1800rpm
- Output Type: AC Three Phase
- Brand Name: Uleen
- Rated Voltage: 400/230V, 220/127V
Specifications
UK Perkins diesel generator 50kva 40kw 1. Genuine industrial diesel engine, with 12V /24V DC start motor and alternator, with Dry type air filter, fuel filter, oil filter, etc. 2. Radiator 40°C / 50°C max, fans are driven by belt, with safety guard 3. Original Stamford, Leroy Somer, Marathon, Mecc alte, Engga or China alternator, brushless, AC 380V, 400V, 415V, 440V, 220V, 50HZ/60HZ at your choice. 4. Choice of manual/auto start and AMF control panels and protection systems 5. Anti Vibration Suspension absorbers 6. Base frame with 8-hour operation fuel tank 7. Circuit breaker or ATS 8. 10. Start batteries, rack and cable 9. Exhaust pipe, exhaust siphon, flange, and muffler 10. Silent canopy, weatherproof canopy or container type at your choice. Multiple air inlets/outlets ensure power performance of the genErator. Large composite impedance muffler effectively reduces the genErator noise. Internal high-performance rubber shock absorbers and flexible materials can reduce vibration. Fuel tank at the bottom can enable the genErator to work for 8 hours. Soundproof enclosure is made by cold steel. the best powder coating with chemical surface treatment ensure corrosion resistance and coating quality. Nice appearance and reliable quality. Stainless steel locks and hinges. All-weather operation is available. 10. Fireproof, waterproof and dust-proof 11. High-performance insulation materials can effectively reduce noise. 12. Transparent sight glass allows users to clearly see the content of control panel. 13. Emergency stop button mounted outside the genErator to facilitate emergency operations. 14. Coolant filler is set on the top of the enclosure.
Diesel genset
MODEL
UP50GFS Standby Power
40KW/50KVA Prime Power
36KW/45KVA Size (silent type)
22409501450mm Weight
1000kg Diesel engine
Manufacturer /Model
Perkins1103A-33TG1 Air intake System
Turbocharged Cylinder Arrangement
3 in LINE Displacement
3.3L Bore and Stroke
105*127 (MM) Compression Ratio
17.25:1 Rated RPM:
1500rpm Prime power at rated RPM
41KW Max standby Power at Rated RPM
46KW Governor Type
Mechanical Frequency Regulation,Steady State
<±0.5% Oil capacity
7.9L Fuel consumption
207g/kw.H Alternator
Manufacture /Type
224DS Number of Phase
Three Number of Bearing
one Power Factor
0.8 Protection Grade
IP23 Exciter Type
Brush less, self-exciting Insulation Class, Temperature Rise
H/H Telephone Influence Factor (TIF)
< 50 Alternator Capacity
45KVA
Perkins diesel generator specification

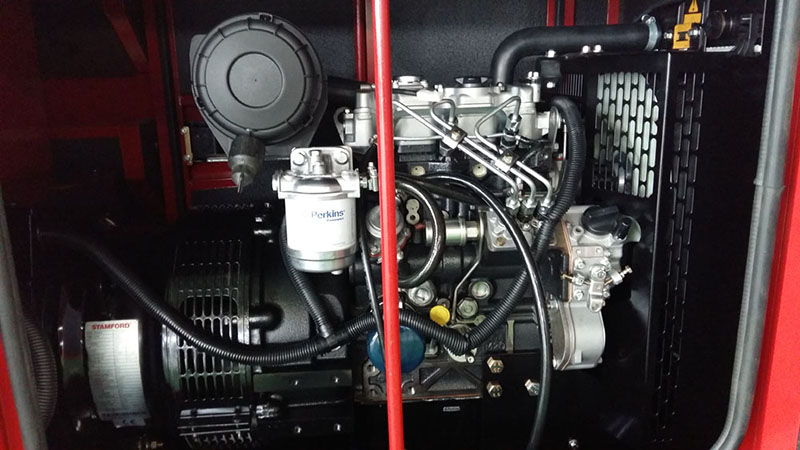

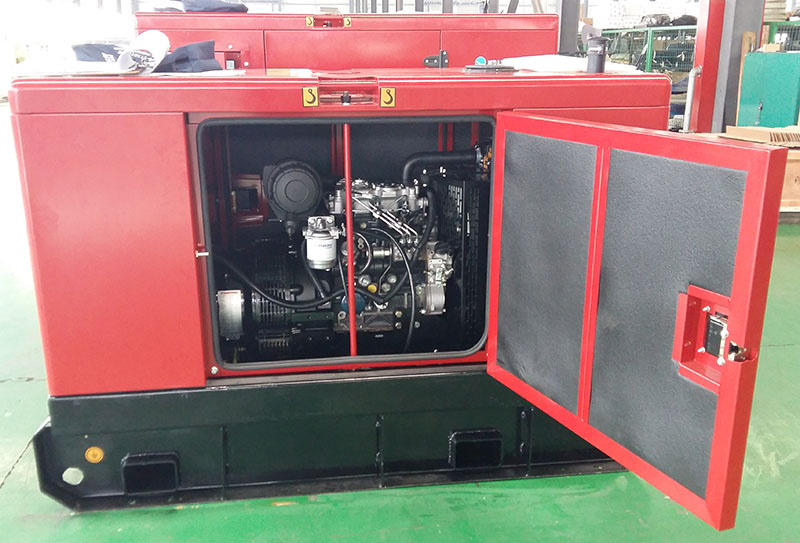

Photos of Perkins generator
Supply scopeSupply scope
Silent canopy feature
