80KW 100KVA UK Perkins Diesel Generator Silent Type Powered by 1104C-44TAG2 with ATS 3 Phase
| FOB Price: | 9999.00 - 11000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set(s) per Month |
| Shipping: | by sea FOB Qingdao |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | plywood case |
Quick Details
- Rated Power: 100KVA /80KW
- Frequency: 50HZ/60HZ
- Speed: 1500rpm/1800rpm
- Output Type: AC Three Phase
- Brand Name: Uleen
- Rated Voltage: 400/230V, 220/127V
Specifications
80KW 100KVA UK Perkins Diesel Generator specification
1. Genuine industrial diesel engine, with 12V /24V DC start motor and alternator, with Dry type air filter, fuel filter, oil filter, etc. 2. Radiator 40°C / 50°C max, fans are driven by belt, with safety guard 3. Original Stamford, Leroy Somer, Marathon, Mecc alte, Engga or China alternator, brushless, AC 380V, 400V, 415V, 440V, 220V, 50HZ/60HZ at your choice. 4. Choice of manual/auto start and AMF control panels and protection systems 5. Anti Vibration Suspension absorbers 6. Base frame with 8-hour operation fuel tank 7. Circuit breaker or ATS 8. 10. Start batteries, rack and cable 9. Exhaust pipe, exhaust siphon, flange, and muffler 10. Silent canopy, weatherproof canopy or container type at your choice. Multiple air inlets/outlets ensure power performance of the genErator. Large composite impedance muffler effectively reduces the genErator noise. Internal high-performance rubber shock absorbers and flexible materials can reduce vibration. Fuel tank at the bottom can enable the genErator to work for 8 hours. Soundproof enclosure is made by cold steel. the best powder coating with chemical surface treatment ensure corrosion resistance and coating quality. Nice appearance and reliable quality. Stainless steel locks and hinges. All-weather operation is available. 10. Fireproof, waterproof and dust-proof 11. High-performance insulation materials can effectively reduce noise. 12. Transparent sight glass allows users to clearly see the content of control panel. 13. Emergency stop button mounted outside the genErator to facilitate emergency operations. 14. Coolant filler is set on the top of the enclosure.
Diesel genset
MODEL
UP80GFS Standby Power
88KW/110KVA Prime Power
80KW/100KVA Size (silent type)
2650*1000*1500mm Weight
1250kg Diesel engine
Manufacturer /Model
Perkins 1104C-44TAG2 Air intake System
Turbocharged, air to air charge cooler Cylinder Arrangement
4 in LINE Displacement
4.4L Bore and Stroke
105*127 (MM) Compression Ratio
18.2:1 Rated RPM:
1500rpm Prime power at rated RPM
90KW Max standby Power at Rated RPM
103KW Governor Type
Electric Frequency Regulation,Steady State
<±0.5% Oil capacity
8L Fuel consumption
207g/kw.H Alternator
Manufacture /Type
274C Number of Phase
Three Number of Bearing
one Power Factor
0.8 Protection Grade
IP23 Exciter Type
Brush less, self-exciting Insulation Class, Temperature Rise
H/H Telephone Influence Factor (TIF)
< 50 Alternator Capacity
100KVA
UK Perkins diesel generator specification

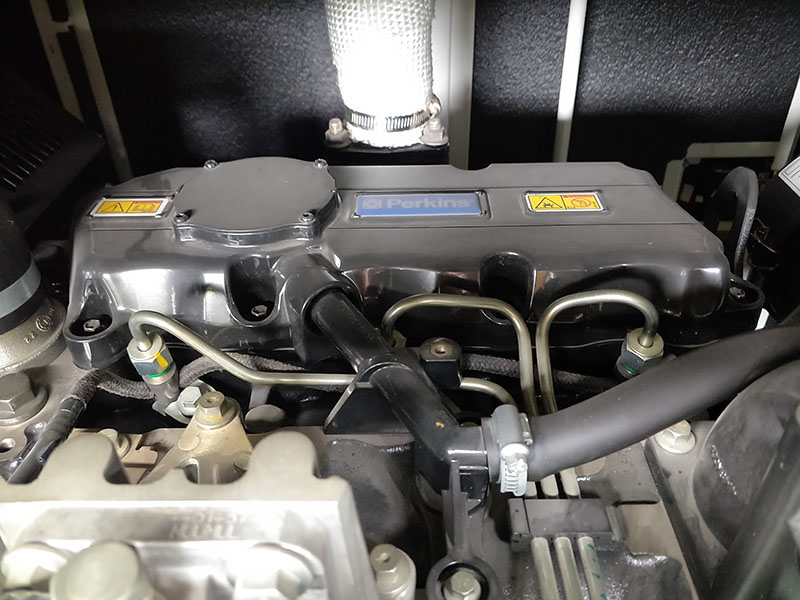

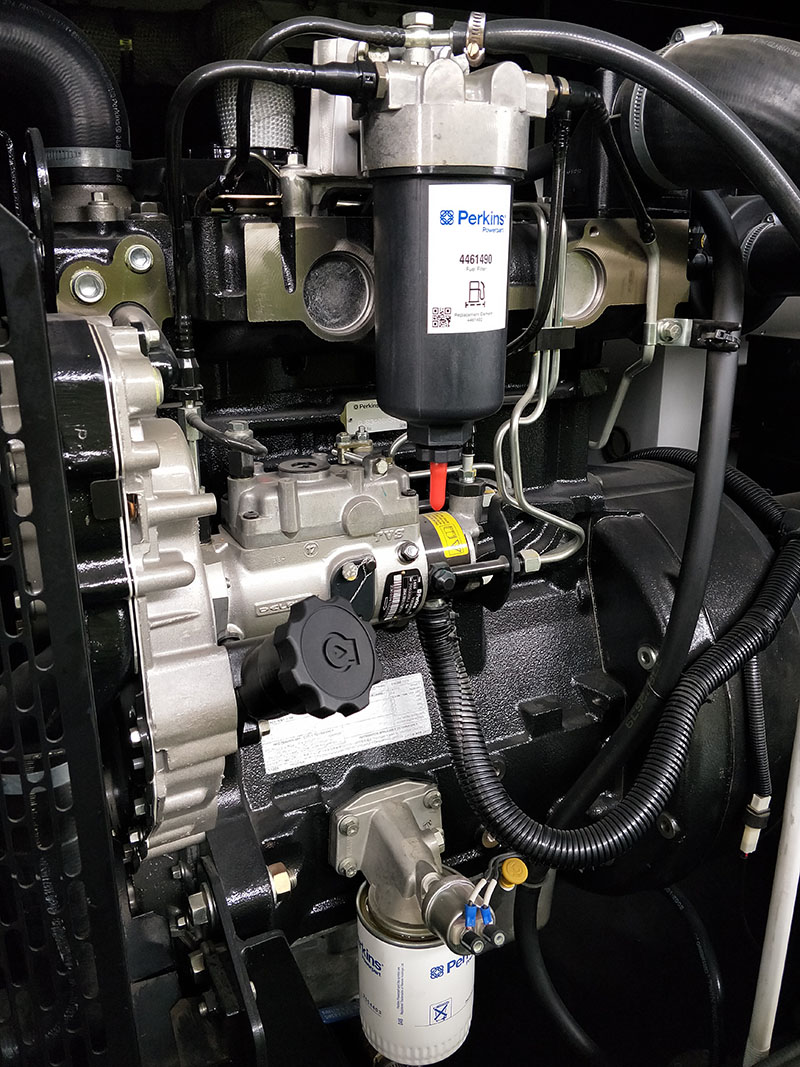

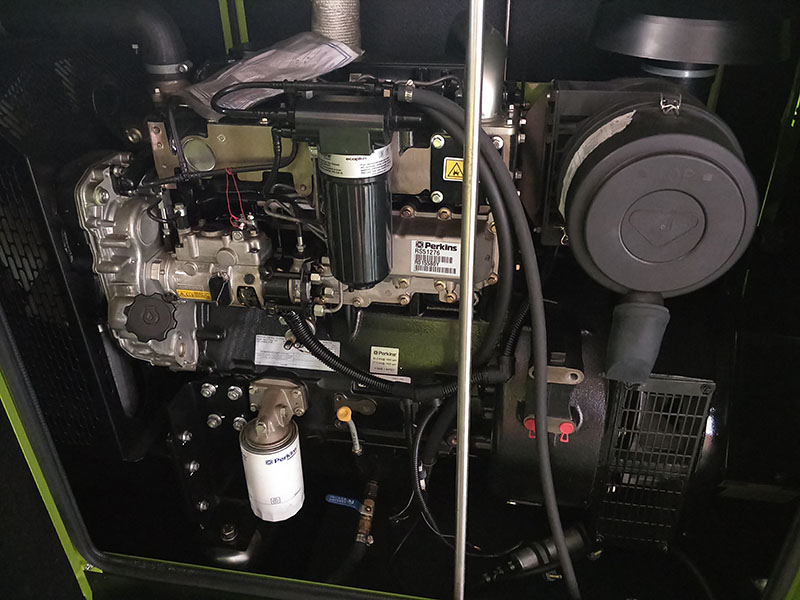

Photos of Perkins diesel generator
Supply scope

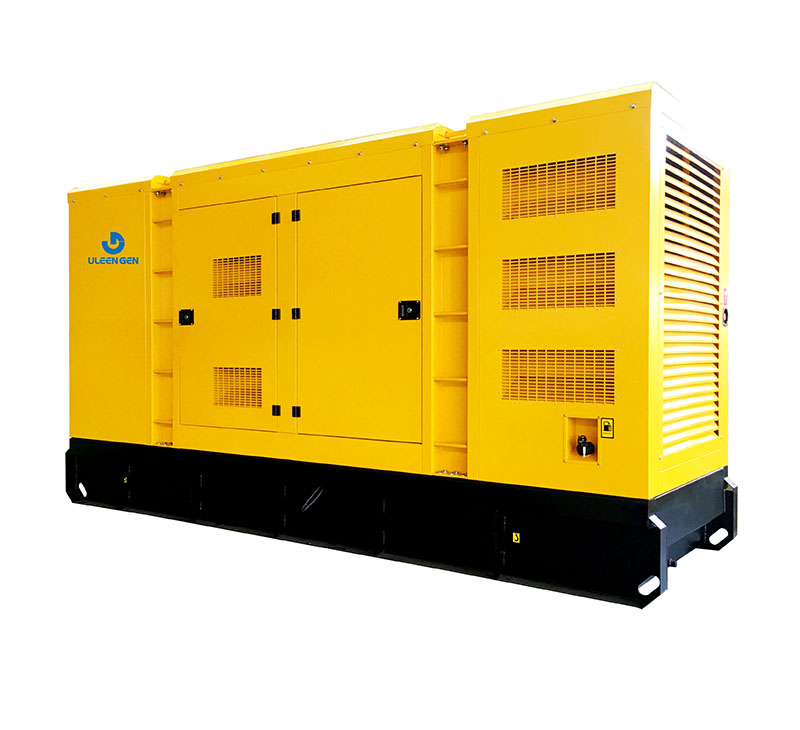

Silent canopy feature
