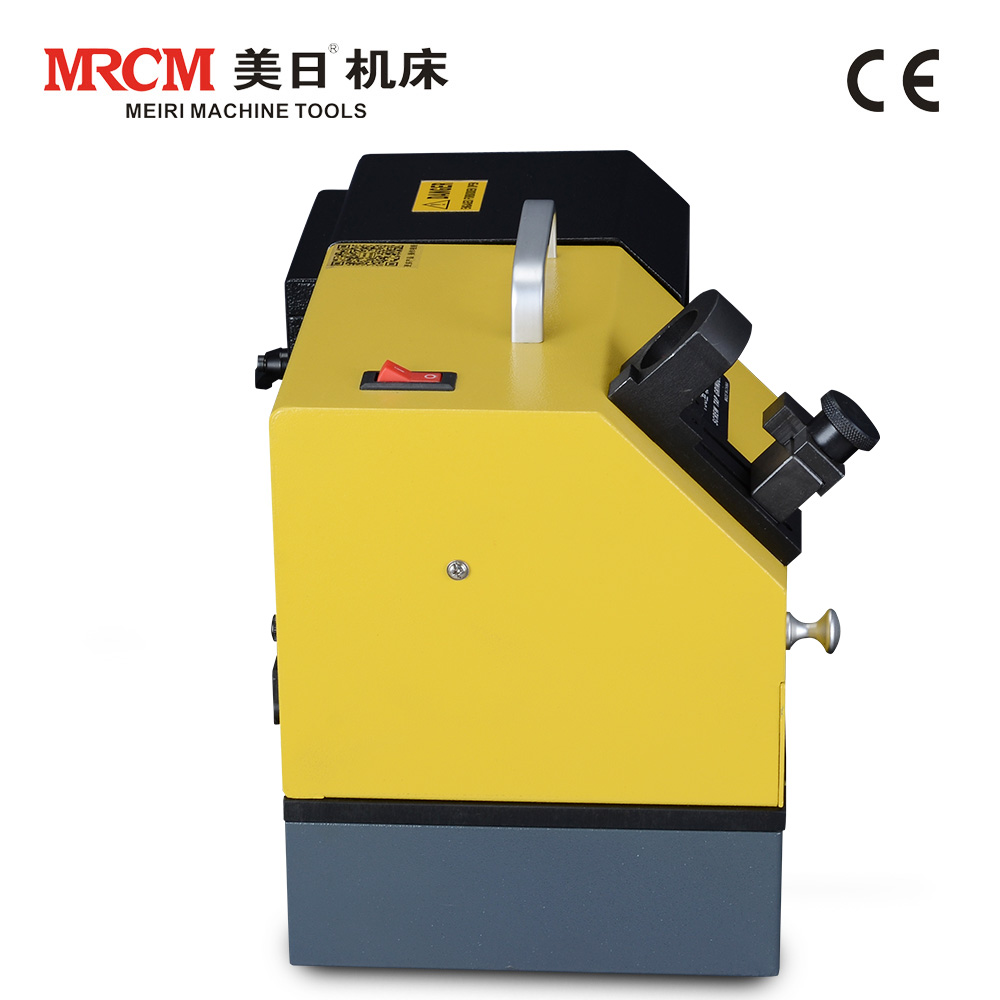

Screw Tap Sharpener Machine MR-Y3C

FOB Price:	560.00 - 590.00 USD/Piece
Supply Ability:	5,000 Piece(s) per Year
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Plywood Case

Quick Details

Weight: 16 kg
Brand Name: MEIRI
CNC or Not: Normal
Type: screw tap grinding machine
Condition: New
Certification: CE ISO
Dimension(L*W*H): 36*27*30.5 cm
Power(W): 160W
Voltage: 220V 50/60Hz
Model Number: MR-Y3C
Max. Grinding Diameter: 20mm

Specifications

Y3C can be used to grind straight groove taps and tip taps with 3 and 4 flute, and can be customized to sharpen 5 flute, 6 flute and left hand taps.
Y3C can sharpen the tap guide angle (tip angle), straight or chute and end face.
Grinding Range: M5-M20 mm
Point Angle: 5°~30°
Power: 220V 50/60Hz 160W
Speed: 4400 RPM
Grinding Wheel: CBN (for HSS) or SDC (for Tungsten Steel)
Standard equipment: Y3C six collets(5-14);
Standard grinding range: Y3C# M5-M20
the thickness for the Y3C standard grinding wheel is 3mm
Screw Tap Sharpener Machine MRY3C
