Rubber Transfer Vulcanizing Machine

FOB Price:	10000.00 - 99999.00 USD/Set
Shipping:	by sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	film

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Voltage: 380v
Brand Name: Geekung
Condition: New
Certification: CE ISO
Weight: 2.3T
Dimension(L*W*H): 1600x1900x3000
Power(W): 5.5kw
Model Number: JC-YCB63T

Specifications

1.Brief Introduction:

Main features for vulcaning :

Clamping mold before , then rubber into mold cavities evenly, ensure the finished products with very less flash and well-distributed physical properties,high qualification rate..
Advanced structural design and advanced material handling technology, with minimum gap and not adhering to cylinder.
No remaining material in barrel, reduce material waste, convenient material changing and easy replacement of molds, ideal for small scale production.
the rubber tansfer molding machine is widely used, it can produce most kinds of of rubber with the max. Hardness Shore 90 degrees.Preparing rubber blank is very easy, greatly shortening curing time.
with two program mode to achieve a machine for dual-use, it can be used as injection press and also the platen vulcanizing machine,wide applicability.
the mold structure is simple, reducing mold manufacturing cost.
Optional special mold opening mechanism (3RT, 4RT, track open mode, etc.), rubber preheating system, servo energy-saving system.

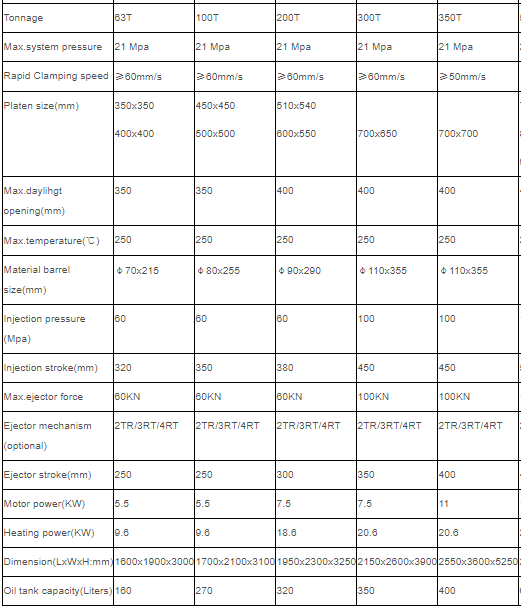

2.Techincal parameters:

Work flow:

Initial state →Program start →Ejector cylinder reset →Mold move in →Fast mold closing →Slow clamping,pressing →Feed material into barrel manually →Exhaust and do curing →mold open →Move out mold →Ejector cylinde works to separate products from mold →Take out the finished product

Rubber Transfer Vulcanizing Machine

3.Performance features:
