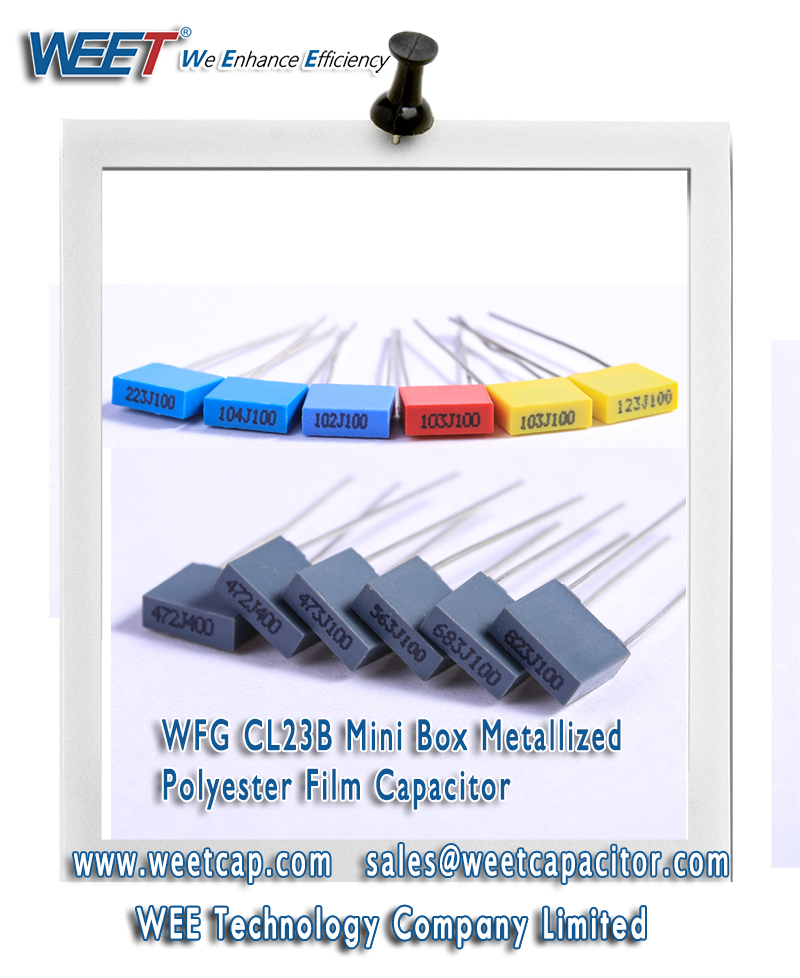

WEET WFG CL23B Mini Box Metallized Polyester Film Capacitor
| FOB Price: | 1.00 - 100.00 USD/Piece |
|---|---|
| Shipping: | EX-Work Dongguan |
| Payment Terms: | L/C, D/A, D/P, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | PP bag Bulk and Ammo Packing |
Quick Details
- Rated Voltage: 50V, 63V,100V, 250V, 400V, 630V.
- Capacitance: 0.001 ~ 2.2uF
- Application: Power
- Type: Polyester Film Capacitor
- Brand Name: WEET
- Operating Temperature: -40C~+100C
- Package Type: Through Hole
- Model Number: WFG
Specifications
WEET WFG CL23B Mini Box Metallized Polyester Film Capacitor Features
Miniature size, Rounded by metalized polyester film, good self-healing effect
Moisture-proof, flame retardant, some small capacitance can be used in series film
Low dissipation factor, high voltage, box type by the epoxy potting
Good self-healing effect, good stability and reliability
Identical appearance is applicable to all kinds of low dissipation and high precision capacitance circuits
Widely used for DC low pulse portion of occasions, typical applications are amplifier, TV, communications, power supply and other products requiring high reliability circuit
Detailed Specifications
Operating
Temperature
-40℃~ +100℃,
40/100/21 Rated Voltage(V.DC)
50V,
63V,100V, 250V, 400V, 630V. Capacitance Range
0.001
~ 2.2F Capacitance Tolerance
±5%,
±10%, ±20% Insulation Resistance
UR≤100V
C≤0.33F ≥3750M? C>0.33F ≥1250S UR>100V C≤0.33F ≥7500M? C>0.33F ≥2500S (20℃ 100VDC 60SEC) P.S:
T[s]=I.R.[MΩ]*CN [F] Dissipation Factor
≤0.01
(at 1KHz 20℃)
Main Applications
WEET WFG CL23B is a winding correction capacitor. CL23B metallized polyester film winding capacitor belongs to ultra small polyester film capacitor, also known as minibox capacitor
Small boxed film capacitors CL23B series use metallized polyethylene film as medium and electrode, non inductive winding structure, encapsulated in small plastic shell and filled with epoxy resin. CL23B series correction capacitors are suitable for various applications of MEF series, especially those with high requirements for capacitor size and square appearance.
Characteristics and functions of CL23B correction capacitor: small volume, light weight, wide capacity range and large ratio capacity; Good self-healing and long service life; Applicable to DC isolation, bypass, coupling and filtering of DC and VHF signals; It is especially suitable for color TV, SPC exchange and military machine LCD monitor rectification, automobile DC motor suppression interference and other occasions.
