Wet Press Felt for Paper Machine

1.Simple structure in linear type,easy in installation and maintaince.
2.Adopting advanced world famous brand components in pneumatic parts,electric parts and operation parts.
3.High pressure double crank to control the die opening and closing.
4.Apply a linker to connect with the air conveyor,which can directly inline with filling machine.

Type
Single Layer paper machine felt is made up of single base layer fabric and fiber layer. Base layer is woven from synthetic filament or multi-filament. The structure is designed base on different paper machine, different press position and different type of paper.

Double Layer paper machine felt includes 1+1 composite structure and double layer of MD yarn structure. 1+1 composite structure BOM is consisted of two different thickness of base material. both of these base materials can be changed to different construction and sizes to suit the requirement of different paper machines.
Triple layer paper machine felt includes 1 +2, 2 +1 and 1 +1 +1 composite BOM felt.
Applying to high speed of the paper machine for suction complex press, large diameter nip roll press and shoe press and can produce high-grade newsprint, write paper, paperboard etc.

Production Processing

the processing method of paper makingfeltIs to make a thick and thin bottom cloth with synthetic fiber, and then lay a mixed fiber net of synthetic fiber and a small amount of wool, which is formed by acupuncture, chemical treatment, resin finishing and heat setting.

Application
Paper making felt are used for paper forming, wet paper pressing, dehydration and transportation.

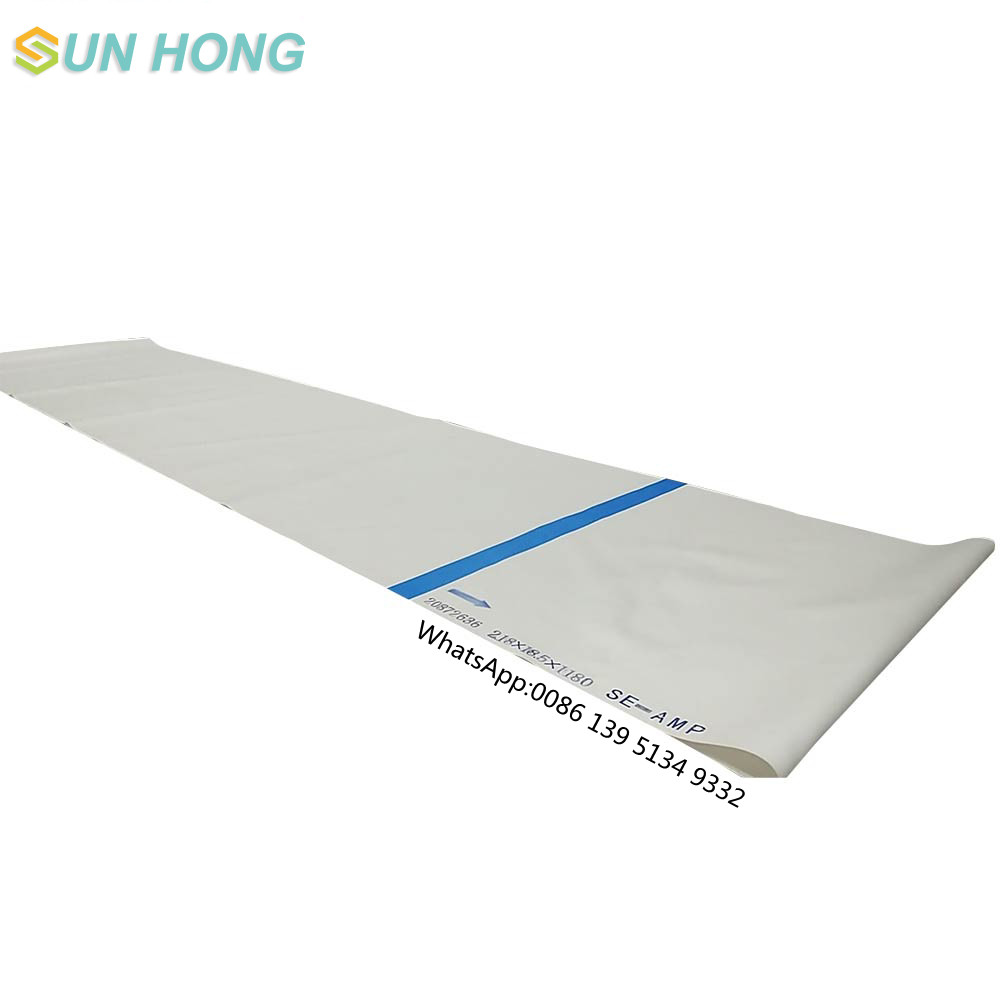

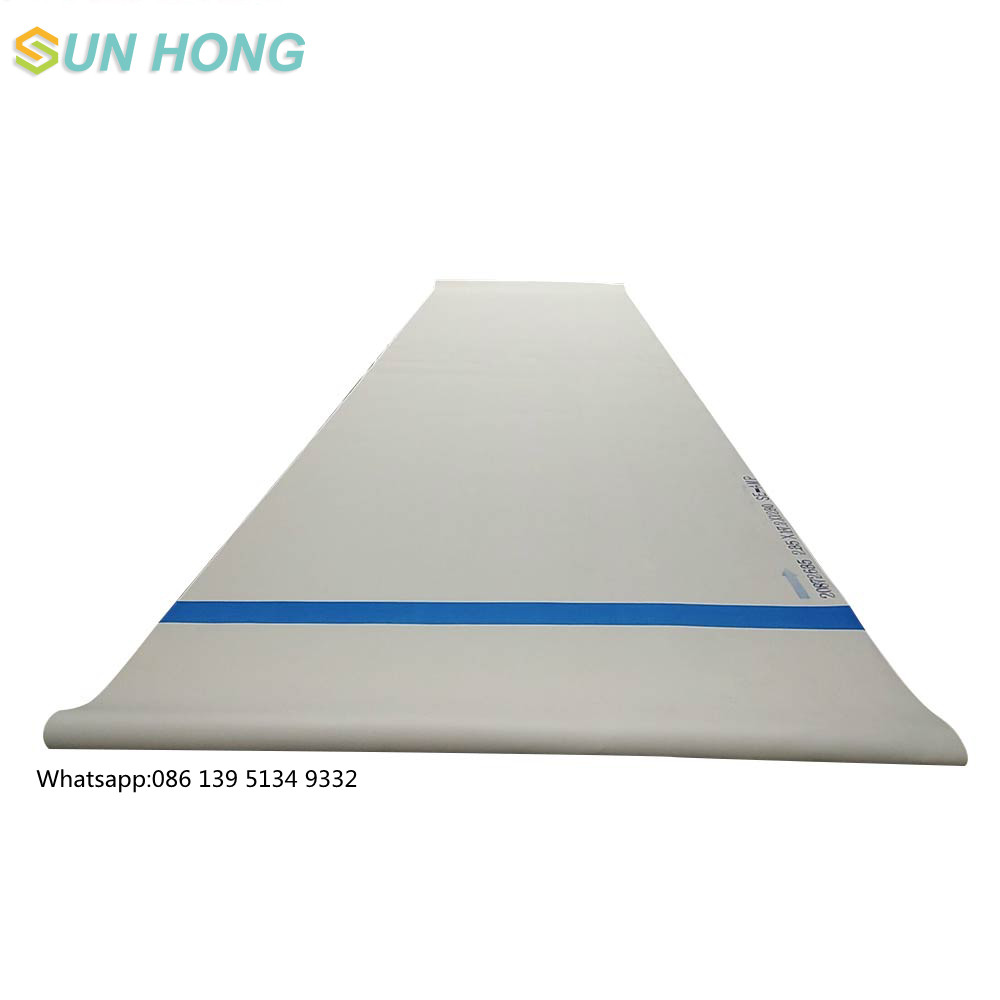

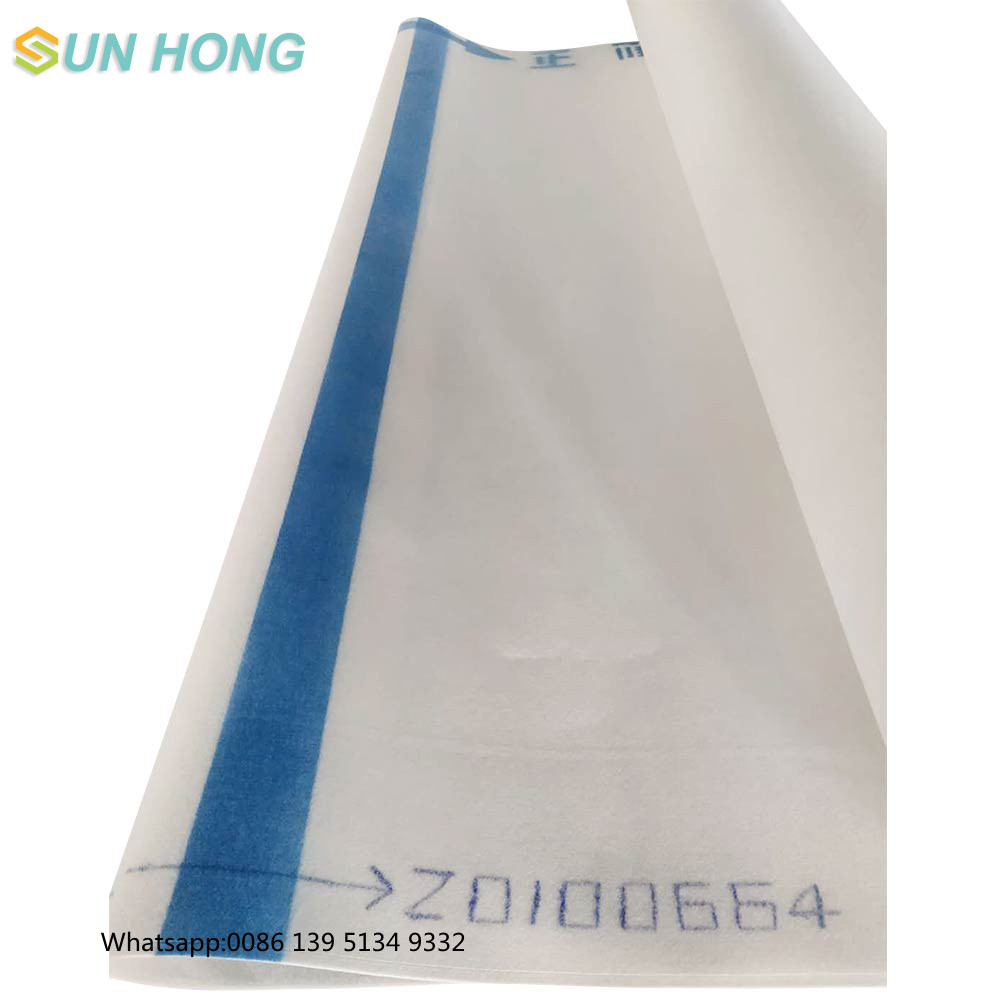

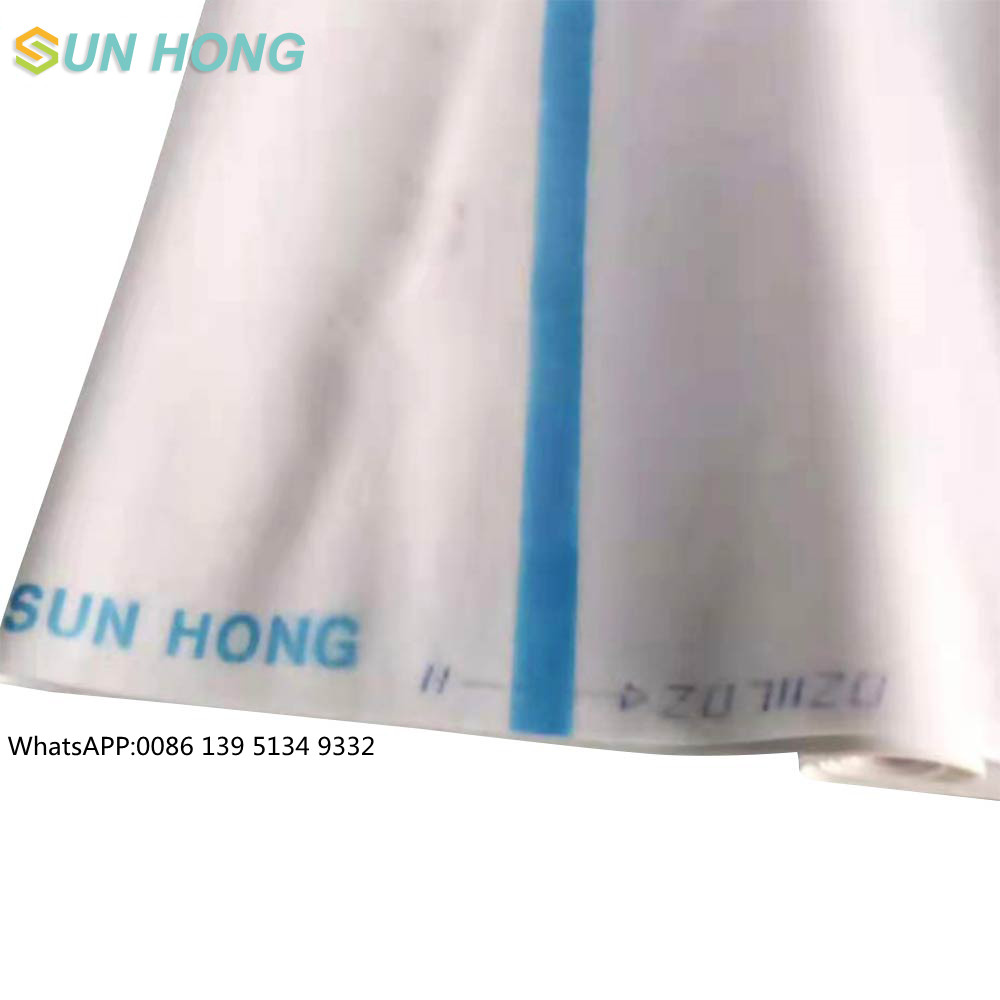

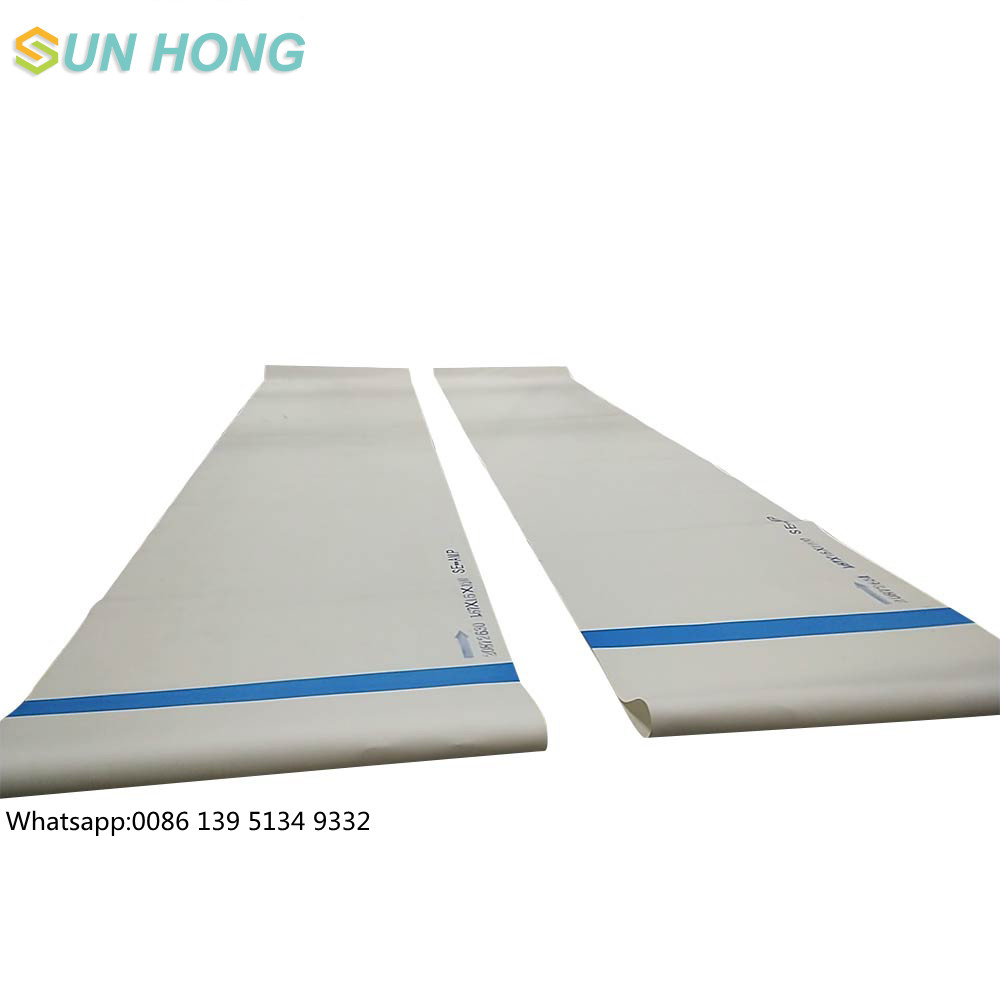

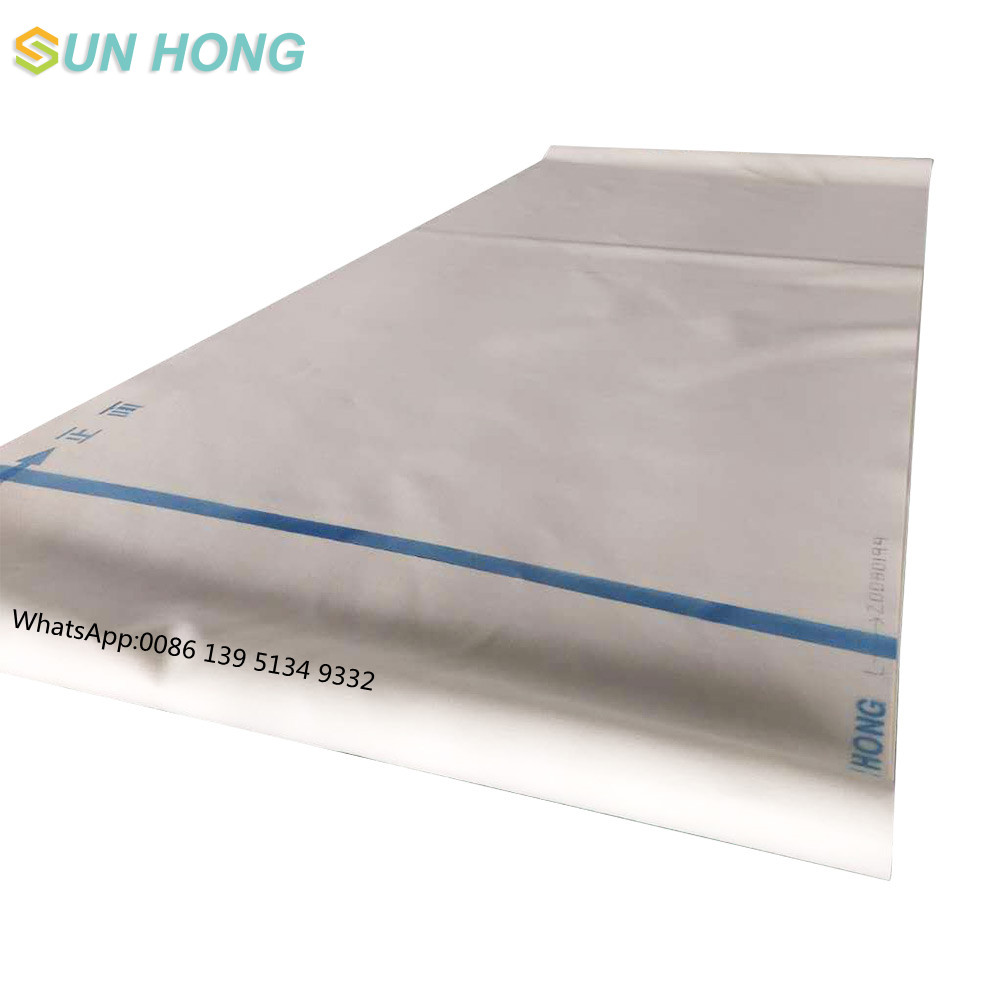

Detail Photos

Tips
Problem:the mesh edge is worn too fast.
Solutions:
1. Try to increase the staggered width of vacuum box openings in turn.
2. Add normal pressure lubricating water to the edge of the vacuum box.
3. Apply stiffeners at appropriate positions.
4. Check whether the edge wiper plate and vacuum box have edges or gaps. in particular, the joint of the ceramic panel is a weak link.
5. Check whether the edge of each roll is seriously worn (the diameter becomes thinner after wear, so that the tension of the mesh is smaller than that of the normal mesh surface, further accelerating the wear)

Packing & Delivery

Bubble Film and waste thick fabric wrapping while protecting inside fabric.
2.Wrapped special fabric package outside(Air shipping).
3.Composite wooden box(seashipping).
