Sida Brand KBM-200 Medium New Dry Ice Pellet Maker Machine

Specifications

SIDA is a reputable and professional dry ice machine manufacturer since 1993 who comes from gas equipment designing and manufacturing industry.

Ms. Vicky Liu

M/W: 008615928354487

Ziyang Sida Cryogenic Machine Co.,Ltd

Address: No.320, Waihuan Road, Yanjiang District, Ziyang City, Sichuan Province, China

Main product:

1. Dry ice pelletizer machine 30-2000kg/h

Small, medium or big dry ice pellet making machine capacity 30-2000kg/h

2. Dry ice block maker machine 100-2000kg/h

Small, medium or large dry ice block production machine capacity 100-2000kg/h, the dry ice block size can be customized

3. Full auto dry ice production line >500kg/h

Mainly consists of dry ice pellet maker, dry ice block reformer machine, dry ice conveyor and dry ice packaging machine

4. Dry ice cleaning machine

5. Small dry ice machine

6. Cryogenic pump

7. Cryogenic valve

8. CO2 gas recovery unit

9. Other cryogenic equipment

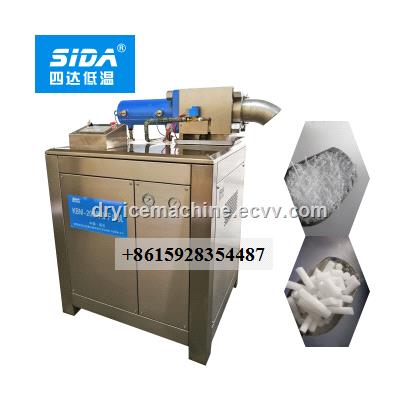

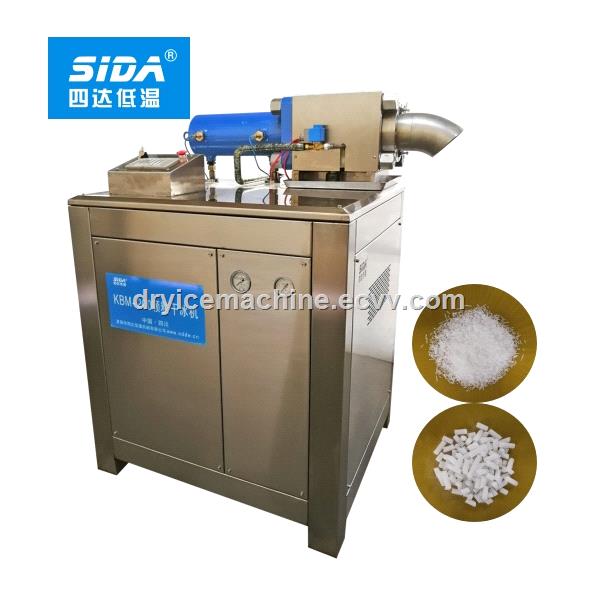

SIDA horizontal dry ice pelletizer machine 200kg/h

1. Model No.: KBM-200 dry ice pellet maker

2. Raw material: liquid CO2 (stored in cryogenic CO2 tank, water content less than 60ppm)

3. Dry ice size: φ3mm,φ19mm

4. Capacity: ≤200kg/h

5. Dry ice density: ≥1500 kg/m3

6. Conversion rate: 40-43% (100kg Liquid CO2 can produce 40-43kg dry ice according to temperature and pressure of raw material liquid CO2)

7. Motor power: 7.5kw, 3phase 380V 50Hz

8. Run: fully automatic hydraulic operation

9. Volume of hydraulic oil tank: 130L

10. Size (L*W*H): 1000*850*1450mm

11. Weight: 680 kg

Main feature:

One of our patented technologies in this dry ice maker is to use the residual CO2 gas from the production of dry ice to enter the hydraulic oil tank for cooling. No need external cooling water or device, which makes the oil tank small in size, requires less hydraulic oil, and the oil temperature can be also maintained at around 40-50℃.

Ms. Vicky Liu

008615928354487

Ziyang Sida Cryogenic Machine Co.,Ltd

No.320, Waihuan Road, Yanjiang District, Ziyang City, Sichuan Province, China
