Sida Brand KBM-1000 Large Dry Ice Pellet Production Machine

Specifications

SIDA is a reputable and professional dry ice machine manufacturer since 1993 who comes from gas equipment designing and manufacturing industry.

Ms. Vicky Liu

M/W: 008615928354487

Ziyang Sida Cryogenic Machine Co.,Ltd

Address: No.320, Waihuan Road, Yanjiang District, Ziyang City, Sichuan Province, China

Main product:

1. Dry ice pelletizer machine 30-2000kg/h

Small, medium or big dry ice pellet making machine capacity 30-2000kg/h

2. Dry ice block maker machine 100-2000kg/h

Small, medium or large dry ice block production machine capacity 100-2000kg/h, the dry ice block size can be customized

3. Full auto dry ice production line >500kg/h

Mainly consists of dry ice pellet maker, dry ice block reformer machine, dry ice conveyor and dry ice packaging machine

4. Dry ice cleaning machine

5. Small dry ice machine

6. Cryogenic pump

7. Cryogenic valve

8. CO2 gas recovery unit

9. Other cryogenic equipment

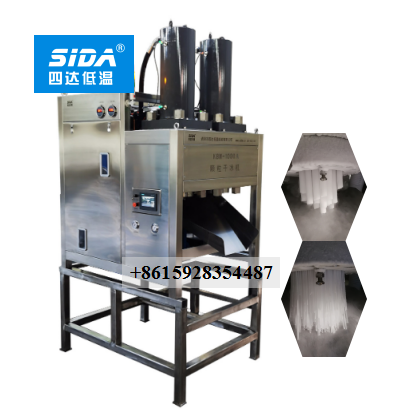

SIDA big dry ice pelletizer machine with vertical design 1000kg/h

1. Model No.: KBM-1000 dry ice production machine (exclusive vertical design, double head)

2. Raw material: liquid CO2 (stored in cryogenic CO2 tank, water content less than 60ppm)

3. Dry ice size: φ3mm,φ19mm

4. Capacity: <1000kg/h

5. Dry ice density: ≥1500 kg/m3

6. Conversion rate: 40-43% (100kg Liquid CO2 can produce 40-43kg dry ice according to temperature and pressure of raw material liquid CO2)

7. Motor power: 22kw, 3phase 380V 50Hz

8. Run: fully automatic hydraulic operation

9. Volume of hydraulic oil tank: 350L

10. Size (L*W*H): 1600*1300*(1470+885)mm

11. Weight: 3200kg

Main feature:

1. the dry ice generator extrusion adopts a vertical arrangement, which will not produce eccentric wear. Compared with the horizontal extrusion structure, it avoids the gravity friction wear of the piston and the defect of pulling the dry ice cylinder when the horizontal cylinder moves horizontally, greatly extending the life of the dry ice cavity, piston and seals.

2. Due to the vertical design, the combination layout of the dry ice pelletizer machine and dry ice block pressing machine is more reasonable and safe in a full auto dry ice production and packaging line.
