>Products Catalog > Tube Screen Printing Machine > HYOO HY-212: Two Print Heads 24 Stations Automatic UV LED Screen Printing Machine

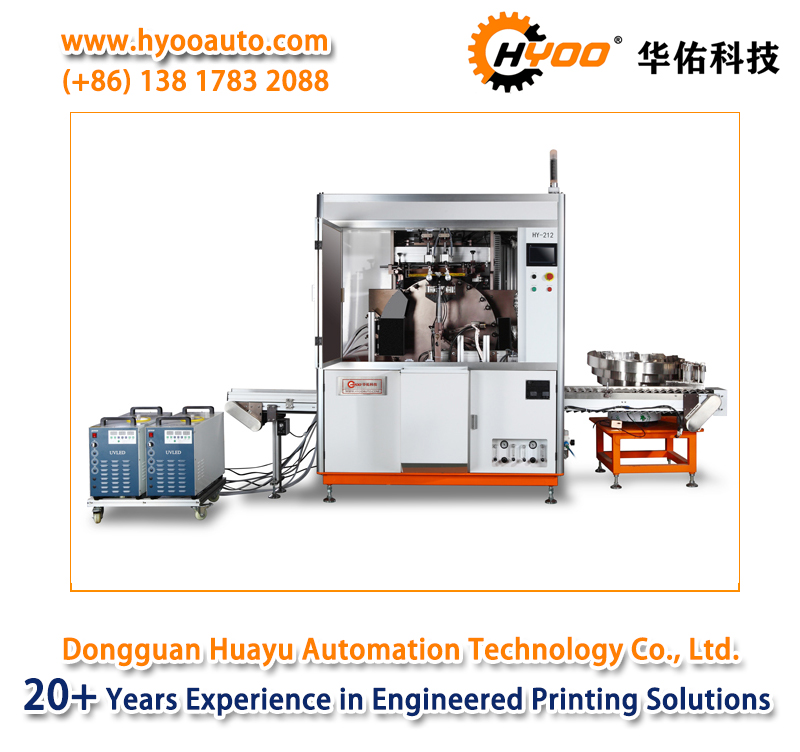

HYOO HY-212: Two Print Heads 24 Stations Automatic UV LED Screen Printing Machine
| FOB Price: | 10000.00 - 15000.00 USD/Piece |
|---|---|
| Supply Ability: | 10 Piece(s) per Month |
| Shipping: | EX-Work Dongguan |
| Payment Terms: | L/C, D/A, D/P |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Plate Type: Screen Printer
- Automatic Grade: Automatic
- Usage: Label Printer,Paper Printer,Tube Printer
- Brand Name: HYOO
- Condition: New
- Plate Type: Screen Printer
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE
- Weight: 2650 KG
- Dimensions(L*W*H): 3370x1400x2300mm
- Gross Power: 5 KW
- Voltage: 380V 3phase 50Hz/60Hz
- Color & Page: Multicolor
- Model Number: HY-212
Specifications
HYOO offers comprehensive, effective and elegant printing solutions.
Medical Pharmacy Industry Printing Machines, Chemical Body Care Industry Printing Machines, Cosmetics Beauty Care Industry Printing Machines, Food and Beverage Industry Printing Machines, Automotive Oil Industry Screen Printing Machines, Electronics and Stationery Industry Printing Machines.
Cylindrical Screen Printing Machine, Plastic Cups Printing Machine,Bottle Screen Printing Machine, Bucket Screen Printing Machine, Tube Screen Printing Machine, Flat Screen Printing, Centrifuge Tube Printing Machine, Tumbler Cup Printing Machine. Hot Stamping Machine, Labeling Machine.We are able to do custom machine based on your request.
Typical Features of Two Print Heads 24 Stations Automatic UV Screen Printing Machine HY-212
the HY-212 is1 color automatic UV screen printer that is suitble for screen printing on flexible or rigid plastic tubes, plastic jars and lids (banding), medical vials, centrifugual/centrifuge tubes, condensor tubes/pipes, shake tubes, syringes and other cylinders up to 75mm in diameter
the HY-212 UV cured screen printing machine offers increased productivity over any semi-automatic solutions and this system holds unrivalled value for the money
the HY-212 is driven by a 24 station vertically mounted rotary indexing table that is equipped with a high-end European brand main drive motor
the HY-212 automatic screen printer is also equipped with intelligent UV curing unit which produces high intensity curing power
the HY-212 is equipped with infeed belt for automatic feeding of parts onto the mandrels with a mechanical pusher-arm
Flame pre-treatment station
Mechanical indexed screen print station
the system can customized includes:
SIMCO de-ionizing station ensure the products without dust before screen print
Keyence optical re-registration system and magnetic motor for alignment of multi-passes with precise color to color alignment
Automatic feeder(bowl vibrating/lifting system)
Automatic capping system for centrifuge tubes
Automatic silicone oil injection system for syringes
Intelligent UV LED system
Automatic eject station onto an outfeed conveyor
Main Specifications of Two Print Heads 24 Stations Automatic UV Screen Printing Machine HY-212
| Model NO.: | HY-212 |
| Print product size (DiameterxLength): | 5mm-75mm, L: 20mm-230mm |
| Max. Print area: | 236x170mm |
| Max. Printing speed: | 100 pcs/min |
| Registration tolerance: | +/- 0.2 |
| Drive: | Mechanical driven |
| Control system: | OMRON PLC & Touch Screen |
| Stations: | 24 stations |
| Deionizing device: | 1 unit |
| Flame treating system: | 1 unit |
| Print head: | 2 units |
| UV system: | 1 unit intelligent UV system |
| Motor: | ITALY SITI |
| Pneumatic parts: | Japan SMC |
| Photoelectric Sensor: | Japan Keyence |
| Frequency Converter: | Japan OMRON |
| Indexer | Japan SANKYO |
| Electrical Supply: | 380V 3phase 50Hz/60Hz |
| Air requirement: | 6-8 bar |
| Power consumption: | 5 KW |
| Printer Dimension (LxWxH): | 3370x1400x2300mm |
| Weight: | 2650 KG |
Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
