PVC Patch Baking & Cooling Machine

Supply Ability:	100 Set(s) per Month
Shipping:	Shenzhen/GuangZhou port
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Voltage: 220V
Brand Name: Hengsen
Condition: New
Certification: ISO
Weight: 200KG
Dimension(L*W*H): 1300x900x1400mm
Power(W): 1050
Model Number: HS-BK01
other name: pvc baking stove
Raw material: Liquid PVC/silicone
Temperature range: 400 center degree
type: vertical
Heating power: 10kw
Voltage: 380V

Specifications

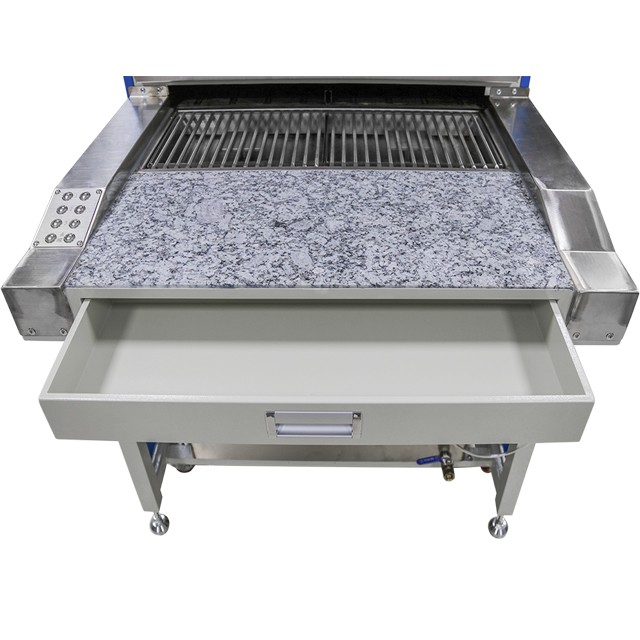

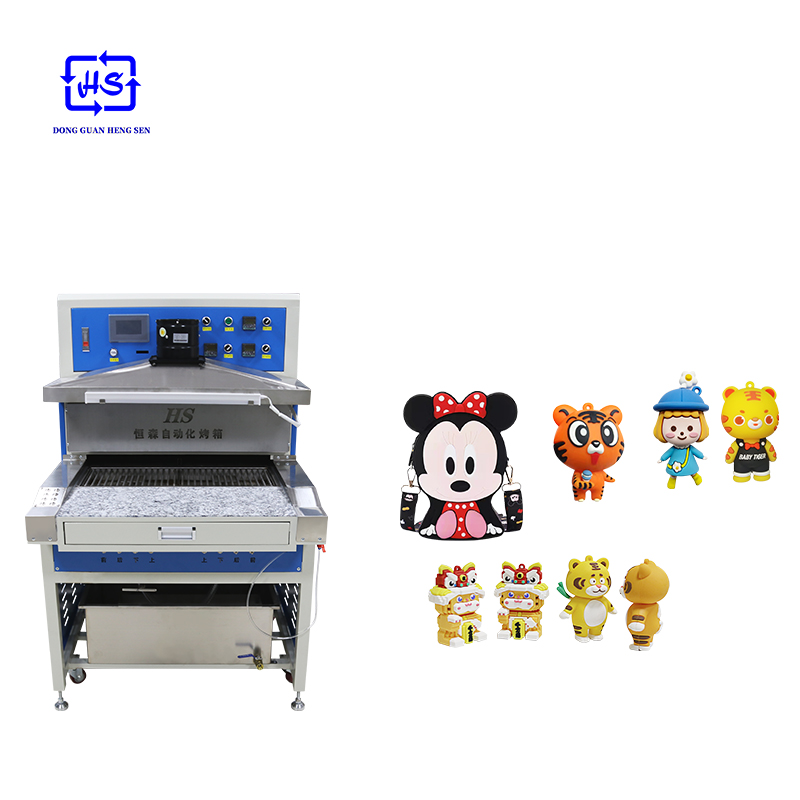

PVC rubber silicone patches baking cooling machine

Feature:
-1.Baking &cooling 2 in 1 system;
-2.Power saving, total 10.5kw only;
-3.Cooling water system;
-4.Cusomized mold inlet dimension and working table;
-5.Precise temperature control system, 3 section;
Application range: PVC rubber badge,patches,PVC coaster, PVC ornaments, shoe sole, slipper upper vamp, etc...
Technical data:

Item name	Baking oven
Working platform width	330mm
Water cooling platform width	330mm
Cooling mode	Circulated water
Heating power	10kw
Voltage:	380V/3P/50hz
Total Loading power	10.5kw
Max. Temperature	400°C
Machine dimension	1300x900x1400mm
Machine Net Weight	200 KG

in the other hand we manufacturing and sell the below machine:
1. PVC patch dispensing machine; 12 colors/18 colors/24 colors for your option;
2. Smart heating oven, Tunnel Furnace with both heating & water cooling system;
3. Automatic Chocolate drip molding machine;
4. PVC/Silicone slipper sole, strap, vamp dispensing machine;
5. Rubber vulcanizing machine;
6. 3D heat press molding machine for 3D patches,mobile phone case production;
7.PVC blender, sandblasting machine, Vacuum machine kit;etc...
8. Cusomized Aluminum mold for PVC patch,silionce sole,rubber badge,etc...
