Guangdong Dayongsheng Technology Co., Ltd.
China Manufacturer with main products: Leveling Machines, CNC Precision Leveler, Quadruple Leveler, Hydraulic Ultra Precision Leveler, Straightening Machines, Laser, Feeder |

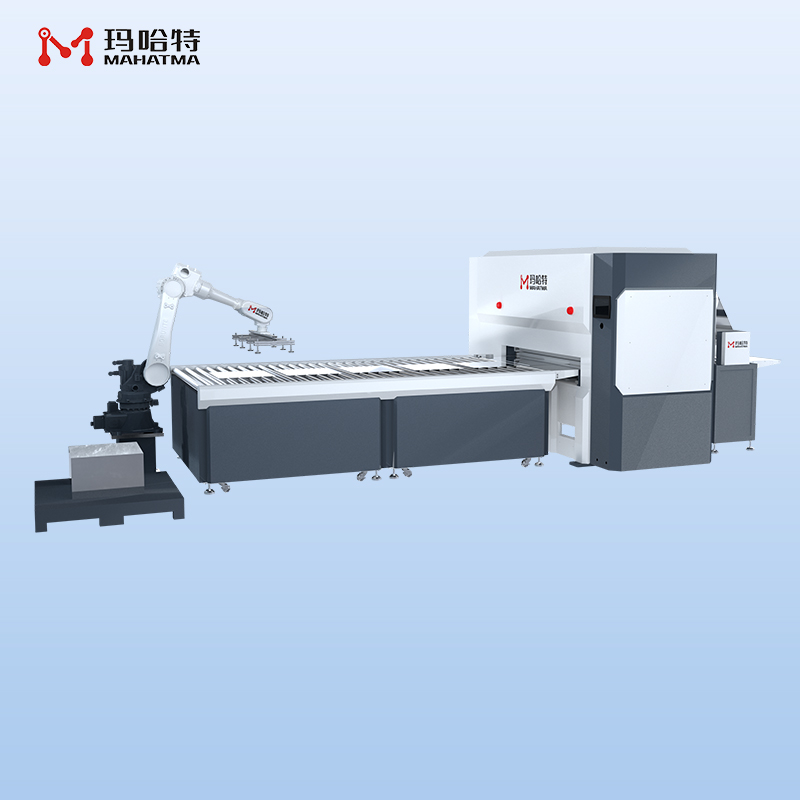

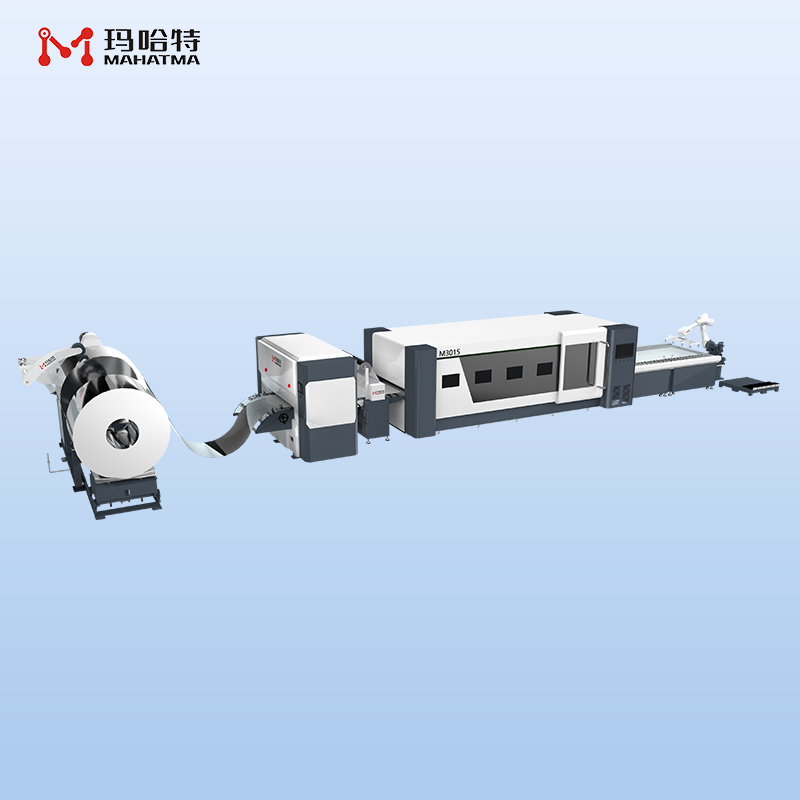

Large Format Laser Cutting Machine
| FOB Price: | 18000.00 - 188000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Month |
| Shipping: | Shenzhen Port |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | wooden case package |
Quick Details
- Application: Laser Cutting
- Certification: CE
- Brand Name: MAHATMA
- Graphic Format Supported: DWG
- Applicable Material: Metal
- Laser Type: Fiber Laser
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: MHTS-1500H
- Control Software: CPY-CUT
- Cooling Mode: Water Cooling
- CNC or Not: Yes
- Cutting Speed: 0-20m/min
- Cutting Area: 0-2600mm
- Cutting Thickness: 0-30mm
- Condition: New
- Color: White
Specifications
| Shear Line Technical features | ||||
| Model | MHTS-1300H | MHTS-1500H | MHTS-2000H | MHTS-2500H |
| Maximum Width(mm) | 1300 | 1500 | 2000 | 2500 |
| Maximum Thickness(mm) | 3/6/10 | 3/6/10 | 3/6/10 | 3/6/10 |
| Roller Diameter(mm) | 60/80/120 | 60/80/120 | 60/80/120 | 60/80/120 |
| Leveling Accuracy(mm/m2) | 0.2 | 0.2 | 0.2 | 0.2 |
| Maximum Weight(t) | 5/10/15/20 | 5/10/15/20 | 5/10/15/20 | 5/10/15/20 |
| Automatic Hydraulic Feeding Trolley | Yes | Yes | Yes | Yes |
| Speed(m/min) | 0-20 | 0-20 | 0-20 | 0-20 |
| Inner Diameter(mm) | ∮508- ∮610 | ∮508- ∮610 | ∮508- ∮610 | ∮508- ∮610 |
| Maximum Outer Diameter(mm) | Φ1500 | Φ1500 | Φ1500 | Φ1500 |
| Numbers of Roller | 19 | 19 | 19 | 19 |
| Controller | CNC | CNC | CNC | CNC |
| Feeding Accuracy(mm) | ±0.2 | ±0.2 | ±0.2 | ±0.2 |
| Air Pressure(kg/cm2) | 5 | 5 | 5 | 5 |
| Rack expansion mode | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Servo Motor | Servo + Reducer | Servo + Reducer | Servo + Reducer | Servo + Reducer |
| Rack motor(kw) | 5 | 5 | 5 | 5 |
| Feeding direction | Left→right | Left→right | Left→right | Left→right |
| Feed line height(mm) | 850±50 | 850±50 | 850±50 | 850±50 |
| Voltage(v) | AC380v | AC380v | AC380v | AC380v |
| Optional | 1. Blanking manipulator 2. Blanking joint robot 3. Automatic film laminating machine 4. Automatic stacking lifting table 5. Blanking platform | |||
