Z28-40 China Steel Metal Hydraulic Threading Machine Factory

FOB Price:	3500.00 - 7800.00 USD/Set
Supply Ability:	30 Set(s) per Month
Shipping:	tianjin seaport
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

electric bolt threading machine

Price:

Min. Order:
Mechanical Three Roller Plate Rolling Machine,T...

Price:

Min. Order:
Round Bar Threading Machine

Price:

Min. Order:
electric pipe /bolt threading machine ZT-50A

Price:

Min. Order:
CNC pipe coupling threading machine

Price:60,000.00-65,000.00 USD/Set

Min. Order:1 Set
Mechanical Three Roller Plate Rolling Machine,T...

Price:

Min. Order:
screw thread rolling machine ADS40

Price:

Min. Order:
RT50 Rebar Thread Rolling Machine

Price:2,000.00-3,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	South America, Mid East
Place of Origin:	Hebei in China
Packaging Details:	automatic thread rolling machine in standard export wooden case

Quick Details

Weight: 1200kg
Power(W): 4kw
Voltage: 3 phase 380v
Brand Name: ZHIHAO
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 18 months
Certification: CE
Dimension(L*W*H): 1450*1300*1300mm
Model Number: Z28-40
Production Capacity: 2m per min
Application: for rolling rebar
Name: thread rolling machine

Specifications

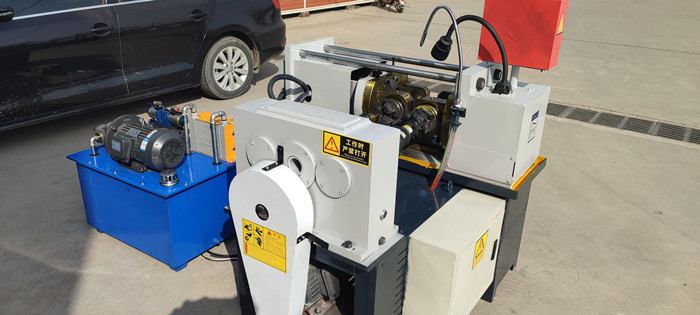

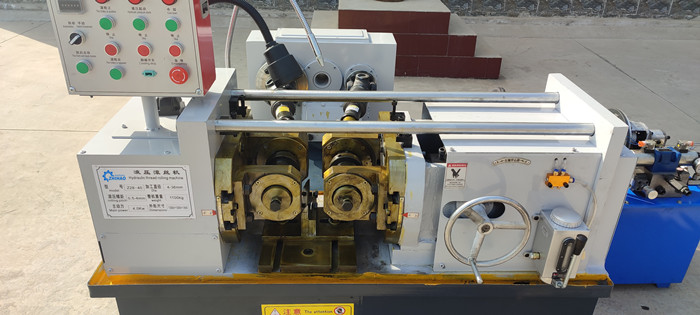

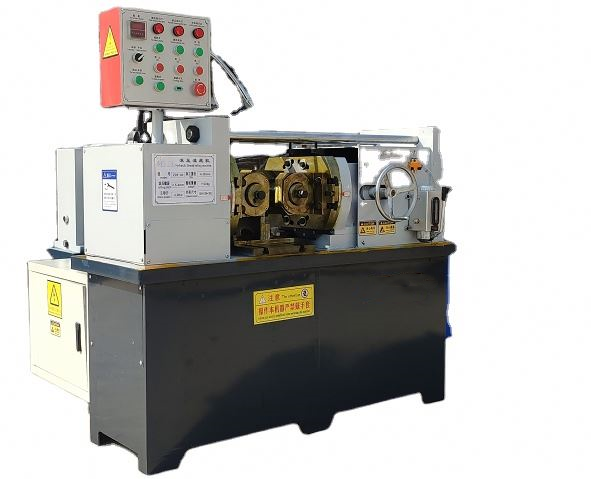

Z28-40 China Steel Metal hydraulic Threading Machine Factory

Automatic vietnam thread rolling machines is mainly used in the construction of ribbed steel bar straight screw thread processing, is to achieve reinforced straight thread connection process of key equipment.

Automatic vietnam thread rolling machine consists of frame, clamp, guide, slide, reducer, stripping rib rolling head, feeding mechanism, automatic opening and closing mechanism, stroke limit structure, cooling system, electrical control box and control system.

Technical Parameter of automatic thread rolling machine:

Items		Z28-150
Rolling thread range	Diameter	5-52mm
	Max thread pitch	5.0mm
Spindle angle		±8°
Max rolling pressure		180kn
Spindle RPM		37/46/63/79rpm
Roller size range	Outside diameter	120-170mm
	Hole	54mm
	Max width	30-100mm
Rolling time		0.1-99.9s
Rest time		0.1-99.9s
Spindle drive power		5.5kw
Hydraulic transmission power		2.2kw
Cooling pump power		90w
Dimension		156014501450mm
Weight		1850kg

Any more question of lead screw thread rolling machine, pls contact zhihaomachinery freely.
