TMW Cellulose Electrodes Pipe Welding Soldaduras E6010 E6011

FOB Price:	1.30 - 1.50 USD/Kilogram
Supply Ability:	10,000,000 Kilogram(s) per Month
Shipping:	FOB Shanghai
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Southeast Asia, Oceania
Place of Origin:	Hubei in China
Packaging Details:	1kg poly bag or 5kg cardboard box

Quick Details

Application: arc welding
Diameter: 2.5-4.0mm
Length: 350-400mm
Material: Cast Iron
Brand Name: TecMig
Operating Temperature: 300
Welding Current: AC DC
Operating Current: 80A
Model Number: E6010 E6011

Specifications

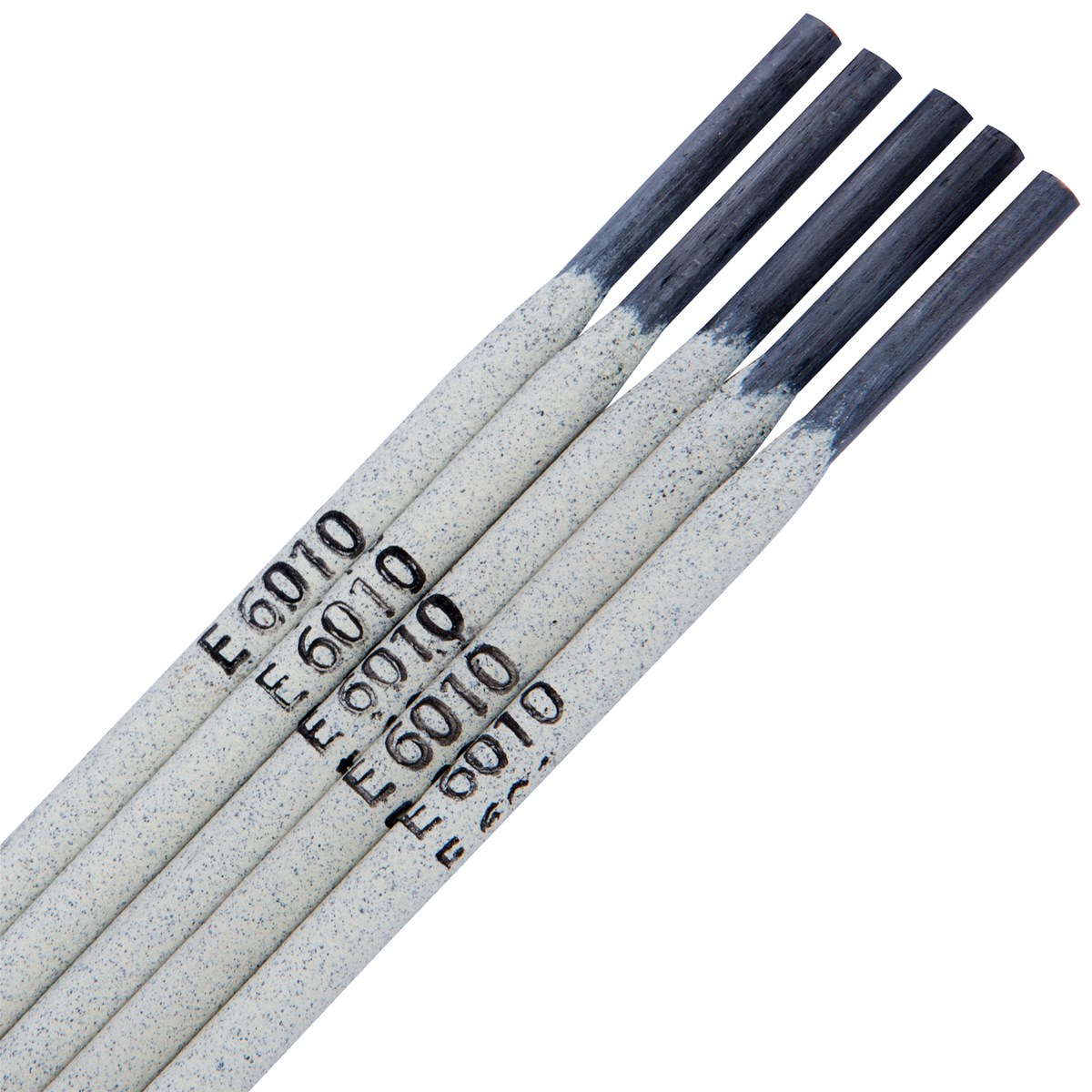

E6010

AWS A5.1 E6010

ISO2560-A E38 0 C 2 1

GB/T5117 E4310

Description:

E6010 is a high cellulose sodium electrode with Excellent vertical down welding pErformance and stronger arc force and deeper penetration. Usually use for butt welding of steel pipes.

Diameters:

2.5mm, 3.2mm, 4.0mm, 5.0mm.

Typical Mechanical Properties:

Tensile strength(MPa):	571
YieldStrength(MPa):	447
Elongation (%):	28
Impact values(≥27J/-30℃):	76

TypicalChemical Compositon:

C	Mn	P	S	Si	Ni	Cr	Mo	V
0.083	0.71	0.017	0.017	0.13	0.024	0.011	0.007	0.008

Welding Current: (DC+)

Diameter(mm)		2.5	3.2	4.0	5.0
Current/A	F/H	60-90	70-110	110-150	150-200
Current/A	V/OH	50-80	60-100	100-140	140-180

Note:

1. the electrodes get Damp easily, pleasesTore themin dry environment.

2.Please bake the electrodes 30-60 minutes in 70℃ before using if they are damp.

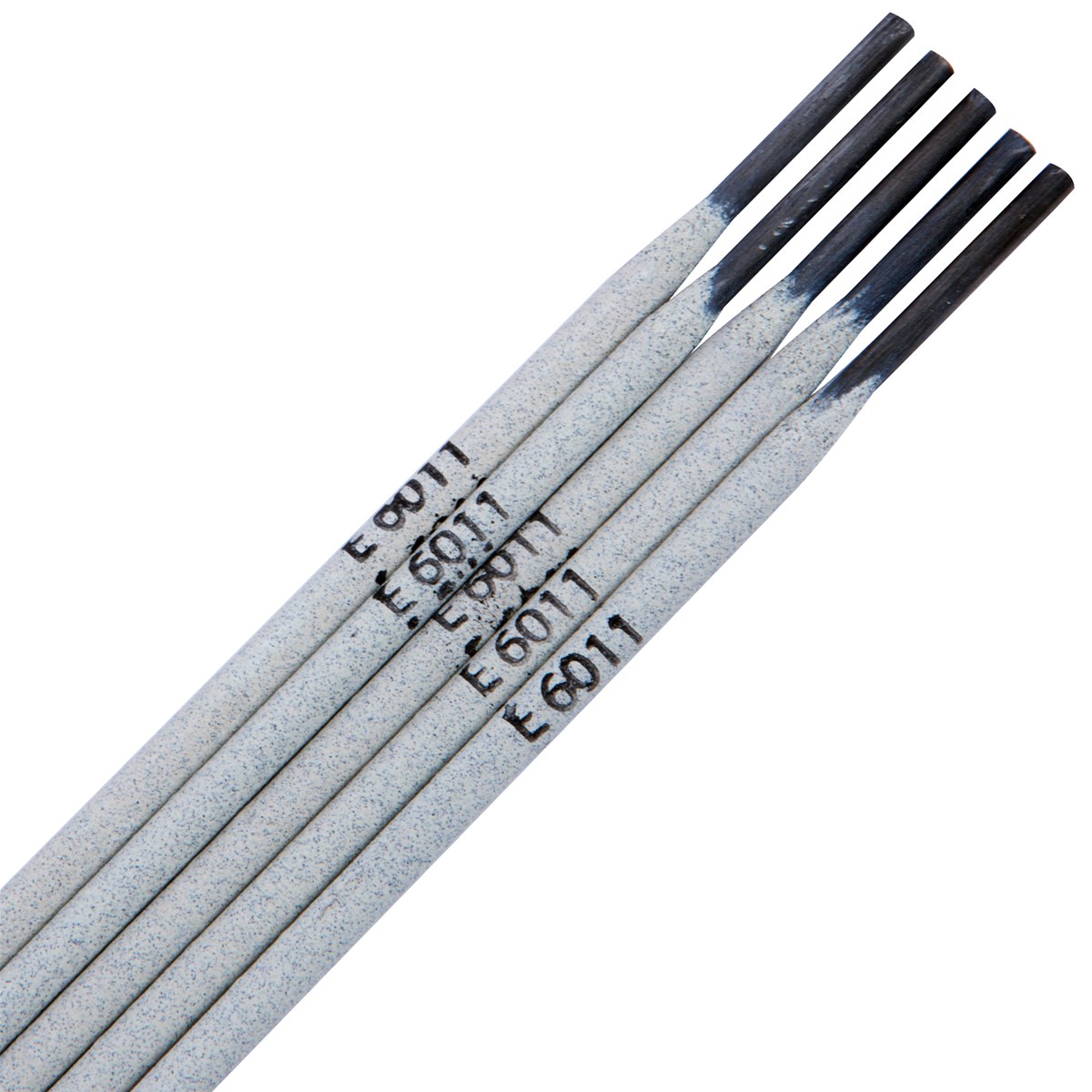

E6011

AWS A5.1 E6011

ISO2560-A E38 0 C 1 1

GB/T5117 E4311

Description:

CEllulose type electrodes forAll positional welding with Excellent vertical down welding pErformance and stronger arc force and deeper penetration.Suitable for butt welding, fillet welding and lap welding of plant chimney, transformer tanks, ships and external low carbon steel sheet structures ofvEhicle etc.

Diameters:

2.5mm, 3.2mm, 4.0mm, 5.0mm.

Typical Mechanical Properties:

Tensile strength(MPa):	490
YieldStrength(MPa):	400
Elongation (%):	28
Impact values(≥47J/-30℃):	100

TypicalChemical Compositon:

C	Mn	P	S	Si	Ni	Cr	Mo	V
0.077	0.73	0.016	0.017	0.15	0.024	0.016	0.002	0.009

Welding Current: (AC/DC+)

Diameter(mm)		2.5	3.2	4.0	5.0
Current/A	F/H	60-90	70-110	110-150	150-200
Current/A	V/OH	50-80	60-100	100-140	140-180

Note:

1. the electrodeget Damp easily, pleasestock it in dry environment.

2. Please bake the electrodes 30-60 minutes in 70℃ before using if they areBecoming damp.
