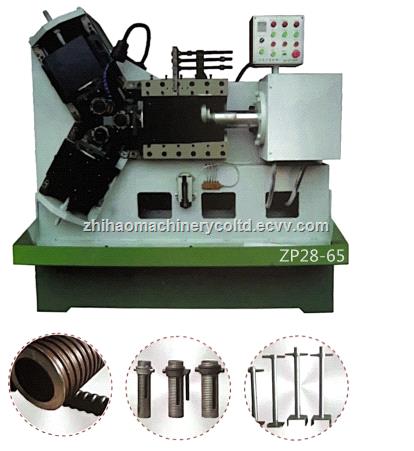

ZP28-65 Automatic Pipe Thread Rolling Machine

FOB Price:	8500.00 - 14900.00 USD/Set
Supply Ability:	30 Set(s) per Month
Shipping:	tianjin seaport
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	pipe thread rolling machine in standard export wooden case

Quick Details

Weight: 3500kg
Power(W): 11kw
Voltage: 3 phase 380v
Brand Name: ZHIHAO
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 18 months
Certification: CE
Dimension(L*W*H): 1800*2200*18800mm
Model Number: ZP28-65
Production Capacity: 2-4m per min
Application: rolling thread on the pipe
Name: tube thread rolling machine

Specifications

ZP28-65 automatic pipe thread rolling machine

Features:

1.Three spindle of the pipe thread rolling machine rotates synchronously in the same direction.Right spindle feed motion in the horizontal direction under the rolling drive.Three rolling wheels make the work as required and other thread shape by rolling.

2.this pipe thread rolling machine is mainly composed of an organism, rotating box, fixed spindle seat, a movable spindle seat, hydraulic system and electrical parts etc.

3.the fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.

4.this automatic pipe thread rolling machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return.

5.the two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.

ZP2865 automatic pipe thread rolling machine
