TMW Metal Core Flux Cored Wires E70C-6M H4

FOB Price:	1.60 - 2.50 USD/Kilogram
Supply Ability:	10,000,000 Kilogram(s) per Quarter
Shipping:	FOB Shanghai
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Southeast Asia, Oceania
Place of Origin:	Hubei in China

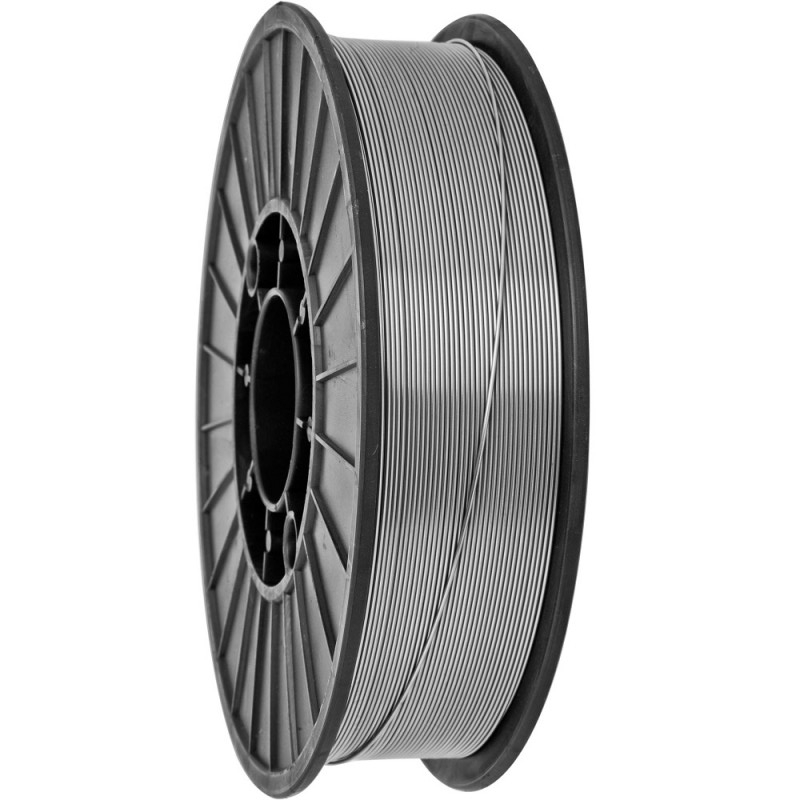

Packaging Details:	15kg spool

Quick Details

Flux Content: iron powder
Application: arc welding
Diameter: 1.2mm
Material: alloy steel
Brand Name: TecMig
Weight: 15kg
Melting Point: 200
Model Number: E70C-6M

Specifications

E70C-6M H4

AWS A5.18E70C-6M H4

Description:

E70C-6M Is a metal type of flux cored wire for flat and horizontal position welding. Slag quality is almost the same as solid wire and multiple pass welding can be performed without removing slag. 20% higher productivity can be achieved when compared to solid wires and it features good penetration, high resistance to porosity, good wetting behavior as well as low hydrogen contents.Typical applications include machineRies,Shipbuilding, offshore structures, bridges and general fabrications, suitable for semi-automatic, automatic, single and multiple pass welding.

Diameters: 1.2mm, 1.4mm, 1.6mm

Typical Mechanical Properties:

Tensile strength(MPa):	590
YieldStrength(MPa):	520
Elongation(%):	27
Impact values(≥47J/-20℃):	85

TypicalChemical Compositon:

C	Mn	P	S	Si	Ni	Cr	Mo	V
0.04	1.47	0.013	0.012	0.80	--	--	--	--

Welding Current:(DC+)

Diameter(mm)		1.2	1.4	1.6
Current/A	--	140-300	150-360	180-400
Voltage/V		20-32	20-34	20-38
Gas speed/(L/Min)		20-25	20-25	20-25

Note:

1. Shield gas: 80% Ar +20% CO2;

2.Wire extension length: 15-25mm

3. Stock in dry environment, please use up in short time once opened.
