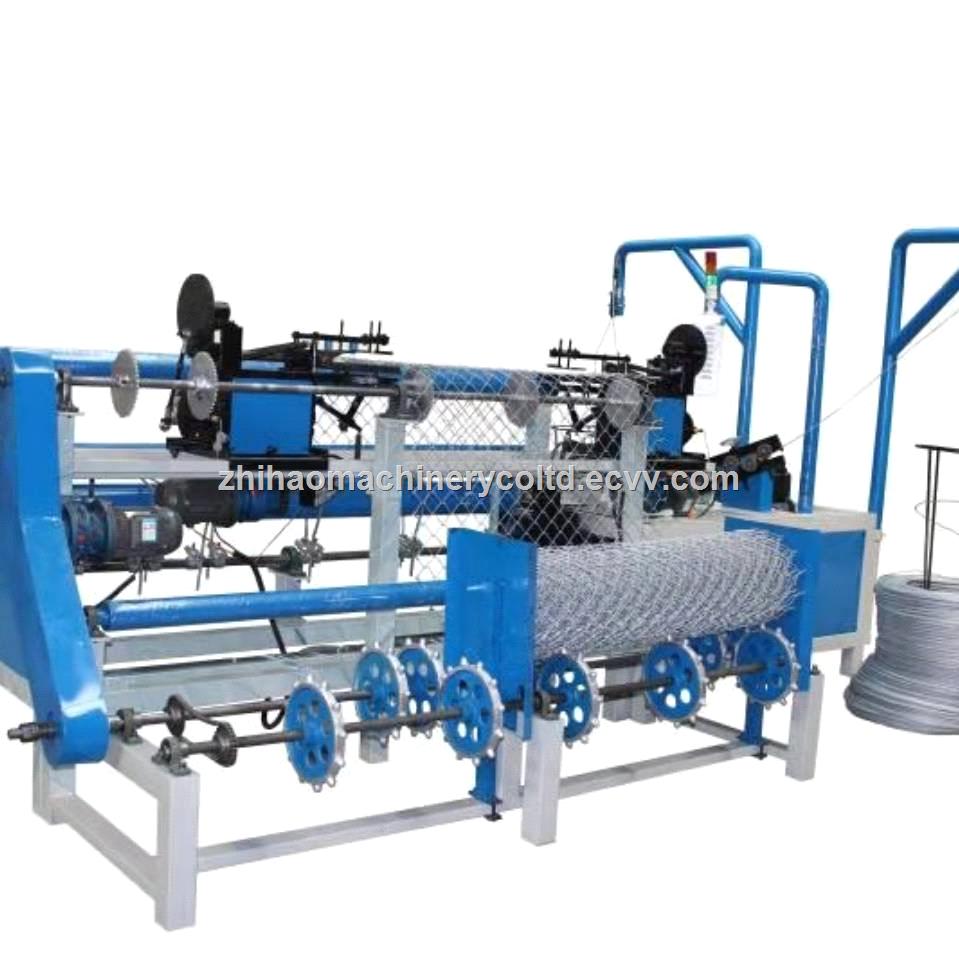

Full Automatic Chain Link Fence Making Machine

FOB Price:	5500.00 - 11500.00 USD/Set
Supply Ability:	30 Set(s) per Month
Shipping:	tianjin seaport
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Full automatic chain link fence making machine in standard export wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: ZHIHAO
voltage: 3 phase 380v
weight: 1700kg
Condition: new
Model Number: 1-2000
Name: chain link fence machine

Specifications

Full automatic chain link fence making machine from China zhihaomachinery

Fully automatic single wire chain link fence making machine can produce many different hole size of the mesh with different molds. the machine is controlled by PLC, we can set the length of the fence by PLC. the machine only need one worker for operating.

Whole automatic chain link fence machine line include: main machine, chain link fence weaving machine, mesh rolling machine, border wire twisted and wind machine, PLC control cabinet, and all related accessories. It could start production directly after installation.

Model: 2-2000
Machine width: 2m
Wire mesh width: 0.5-2m
Overall dimension: netting: 5.8m *1m *2.2m, Lockrand: 5.7m *1m *1.4m, rolling mesh: 2.7m *1m *0.7m
Machine weight: 1700kg
Wire diameter: 2.0-4.5mm
Grid size: 25-120mm
Capacity: 50-120m2/h
Voltage: 3 phase 380v ( if need other volatge, can custom made)
Power:
Major motor: 5.5kw Servo motor 1 set
Cutter: 2.2kw brake motor 1 set
Lockrand: 0.75kw 3 phase motor 2 sets
Rolling mesh: 0.75kw 3 phase motor 1 set (rolling mesh machine)
Water pump: 30w motor 1 set

Full automatic chain link fence making machine
