Xingtai Zhihao Machinery Co., Ltd.
China Manufacturer with main products: Thread Rolling Machine, Stirrup Bending Machine, Steel Rod Necking Machine, Wire Bending Machine, Hook Making Machine, Nail Making Machine |
Automatic CNC 2d Wire Bending Machine
| FOB Price: | 7500.00 - 9500.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Month |
| Shipping: | tianjin seaport |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | Automatic cnc 2d wire bending machine in standard export wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Automation: Automatic
- Power: Cnc
- Brand Name: ZHIHAO
- Condition: New
- Extra Services: Cut To Length
- Material / Metal Processed: Carbon Steel
- Raw Material: Steel Bar
- Machine Type: Roller-Bending Machine
- Model Number: ZH206
- Name: 2d wire bending machine
Specifications

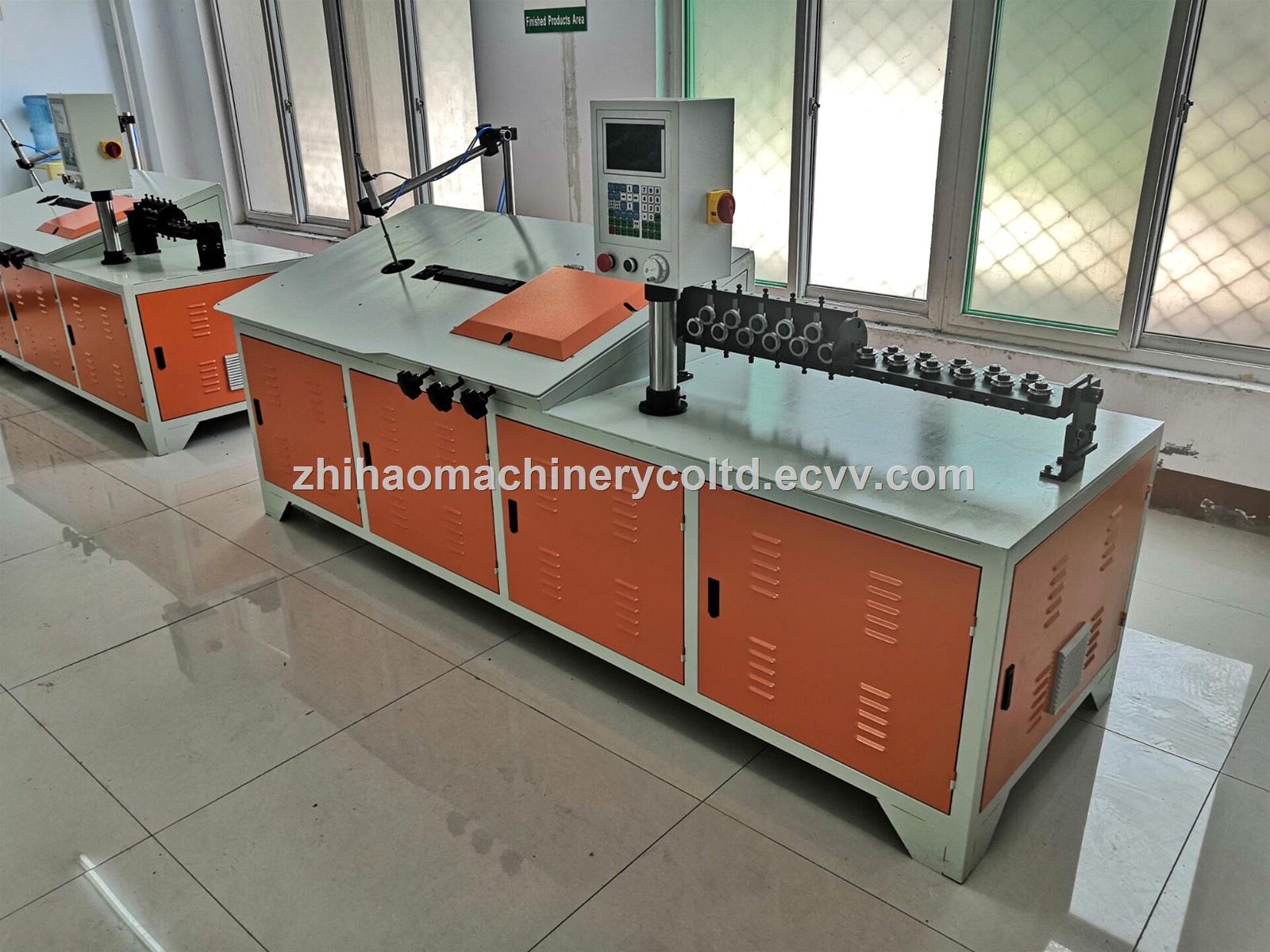

Automatic CNC 2d wire bending machine

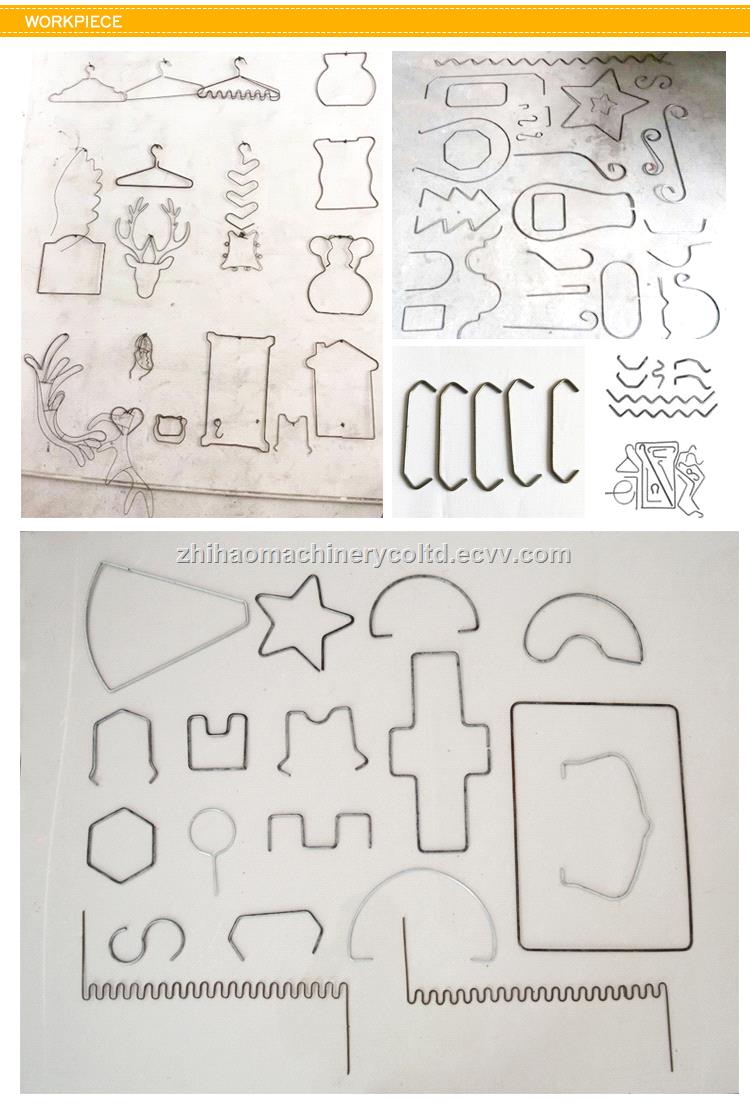

Application of CNC 2d steel wire Bending Machine:
1, Automobile parts:automobile seat frame,door lock pull rod,snake spring,including single snake and double snake,automobile cat head clip spring,automobile safety belt clip spring,automobile seat bracket steel wire,motorcycle parts,bicycle parts, basket are more suitable for wire forming machine production;
2, Daily hardware products:kitchen display rack,shelf,egg beater,cabinet basket,refrigerator rack,shelf steel products used in toilet,supermarket shopping basket,cart, display pendant,etc.
3, Iron wire craft products,lighting wire molding products,fishing gear accessories products,including wine racks,fruit pots in KTV,Christmas gifts made of various steel wires, all use flat or three-dimensional pieces made of different shapes of steel wires or iron wires.
4, All kinds of cage processing: pet cage,bird cage,dog cage,breeding cage,rat cage,etc.
5, Hanger,shoe hanger,curtain hook,shelf hook,display hook and other hooks.
Technical parameter
Model 2.0-6.0mm automatic 2D Wire Bending Machine
Axle number 3
Steel Wire Diameter 2-6mm
Number of feeder wheels (group): 3
Wire Range: Round line, flat line, square line (suitable for any wire material)
Storage: 10,000 data, 300 actions in a group
Maximum feeding speed (m/min): 100
Servo motor power of feeding shaft (kW): 2.3
Cutter Shaft Servo Motor Power (kW): 1.5
Power of bending Axis Servomotor (kW)): 2.3
Irection of action: Internal and external die can be lifted and bended in both directions.
Feeding accuracy (mm): ±0.1
Maximum bending speed: 800 rpm, angle (+180)
Capacity 25-30pcs/min, (200*200mm square)
Operating system:32-bit Chinese and English (with upload and download functions)
Woltage 380V,50HZ/60HZ
Weight (KG) 1400KG
Machine size (length * width * height mm) 2500*1000*1680mm
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
