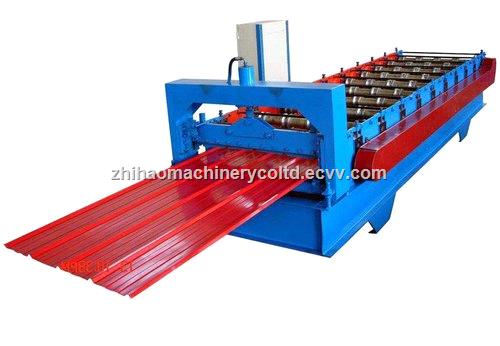

Metal Work Roof Sheet Roll Forming Machine

FOB Price:	5500.00 - 14900.00 USD/Set
Supply Ability:	30 Set(s) per Month
Shipping:	tianjin seaport
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Metal work Roof sheet roll forming machine in standard export wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 18 months
Certification: CE
Brand Name: ZHIHAO
Condition: New
Weight: 4000kg
Dimension(L*W*H): 6500*1500*1500mm
Voltage: 3 phase 380v
Power(W): 5.5kw
Model Number: ZH
Production Capacity: 8-12meters/min
Use: Roof
Tile Type: Colored Steel
Type: Tile Forming Machine
Name: roof sheet roll forming machine

Specifications

Metal work Roof sheet roll forming machine from China zhihaomachinery

1Coil Width 914mm/1000mm/1200mm /1250mm or according to your request
2Diameter of shaft 70mm
3Forming Speed    8-12meters/min
4Middle plate 16mm
5Material of shaft 45#steel with tempering
6forming thickness 0.2mm-0.6mm
7material of rollers    45#steel
8Cutting type hydraulic -cutting
9Main power 4kw/5.5kw /7.5kw/11kw according to machine
10Main frame 350H steel
11Control system PLC
12Brand of electrical parts Delta
13Manual decoiler    5 tons
14Power3 Phase,380 Voltage,50Hz
15Dimensions(L*W*H)about 6.5*1.2*1.2M
16Weightabout 3 tons

Metal work Roof sheet roll forming machine
