Transformer Parallel Winding Machine

Specifications

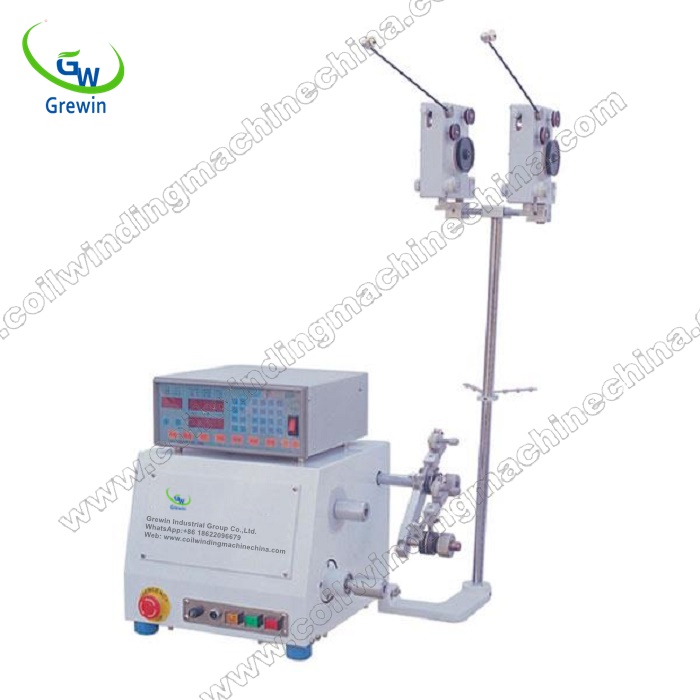

NAME:GW-9800Transformer Parallel Winding Machine

SPECIFICATION:

FEATURES:

Transformer Parallel Winding MachineHas microprocessor design,easy for program-setting handing.

Wire guiding traverse shaft stepper motor with a constant-current driver offering fast wire guiding speed.

Multiple spindles synchronal winding for highest efficiency

More convenience by using foot-switch

Transformer Parallel Winding Machine is specially designed for winding toroidal / rectangular /oval cores from CRGO electrical silicon steel full automatically.

Transformer Parallel Winding Machine adtops Panasonic PLC control system, full closed-loop control all the procedure, including clamping, fixing, pressing, winding, cutting, welding, releasing, etc.

ADVANTAGES:

You can change the program to achieve functionality as needed.

the position of the spool can beAdjust with the teaching function, which can assist the setting of the winding point and width position.

0~999 groupdata Is easy to set, with powerful DC motor and precision stepper motor, it can easily set forward reverse, cross slot and flow tight winding work.

Transformer Parallel Winding Machine Can beEquipped with lengthenedWinding Width, the longestwire Width can be arranged 1500mm

Winding head adoptGuide pin,Winding wire will be Neat and accurate

Wire wheel adopts ceramic guide wheel, high temperature resistance and non - damage enameled wire.

APPLICATION:

Typical applications for high torsion parallel spindle winding Machine with a single wire size, include the manufacture of gas ignition coils, solenoids, relays, motors and many forms of sensor coil in small and medium batch quantities.It is ideal for use in the production of small inductors, particularly bobbins wound with a single wire size and high turns count. the high maximum winding spindle speed (up to 6000 rpm) enables coils with a high turns count to be wound in a short cycle time.

PRACTICAL APPLICATION:

TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :

1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.

2.Guide the user to use accurately and how to maintain theTransformer Parallel Winding Machine.

Provide free consultation about production process technology of electronic products.

 order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
