NGM6.0 Rail Profile Grinder Railway Equipment

FOB Price:	2500.00 - 3000.00 USD/Set
Payment Terms:	T/T

In Stock

Inquiry Now

Quick Details

Brand Name: lianjie
Dimensions (L x W x H) (mm): 1410x500x850
Material: sus
Type: rail grinder
SURFACE: sus
Model Number: NGM6.0
usage: rail profile grinding work

Specifications

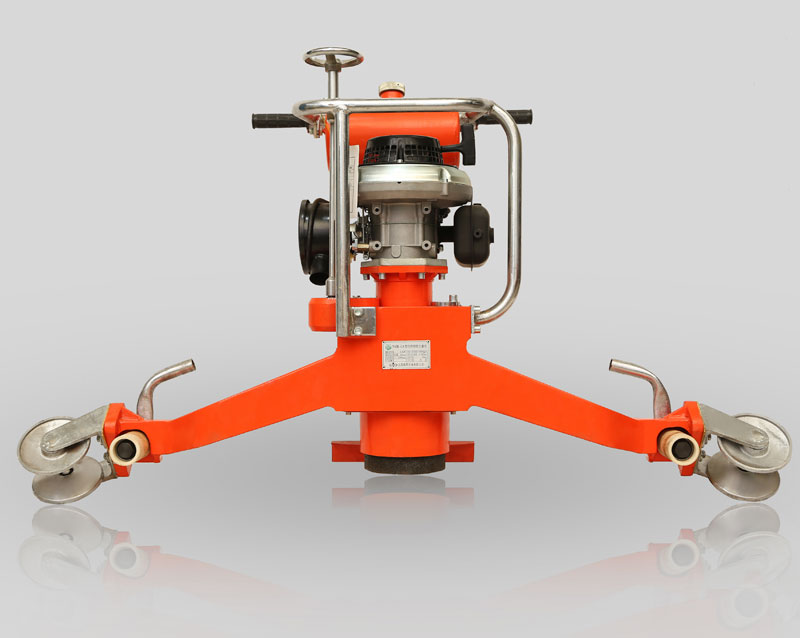

this machine is powered by the M165 two-stroke petrol engine imported from Spain. It is a small machine used for forming and grinding the rail head welding joints and surface repairs. It is suitable for rails of 43~75kg/m. the special diaphragm carburetor make sure the engine does not stall after turning 90°, and the output torque is stable without power attenuation, thus ensuring the precision of rail grinding.

Engine	2 stroke petrol engine M165
Power	6.0kW
Grinding stone speed	≥3900r/min
Grinding stone inclination	0~90°
Grinding stone feeding stroke	42mm
Grinding stone specification	Φ150xφ55x70mm
Fuel tank volume	4.5L
Profile wheel span	1000mm
Feed adjustment accuracy	0.125mm
Dimensions	1410x500x850mm
Weight	60kg
