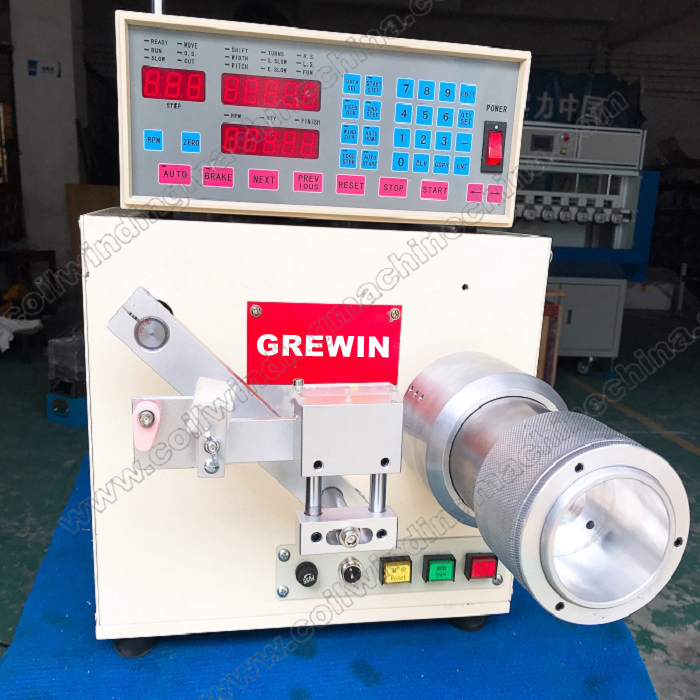

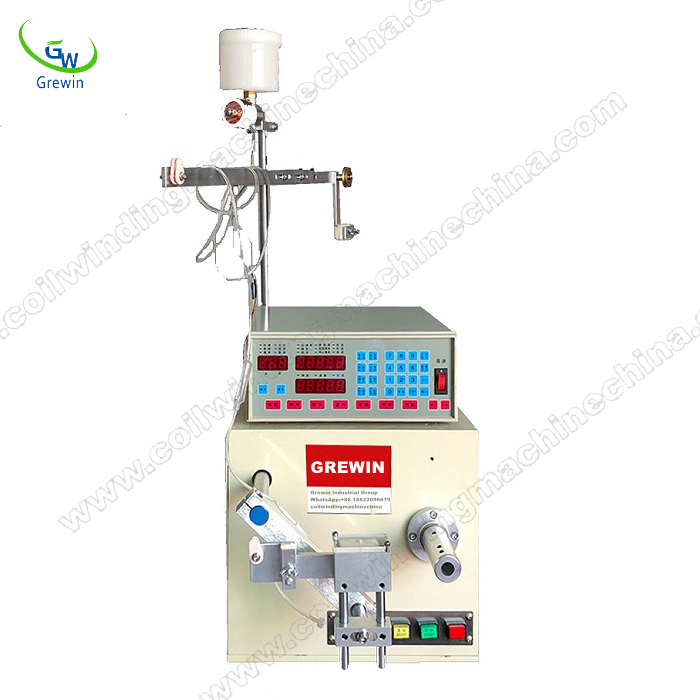

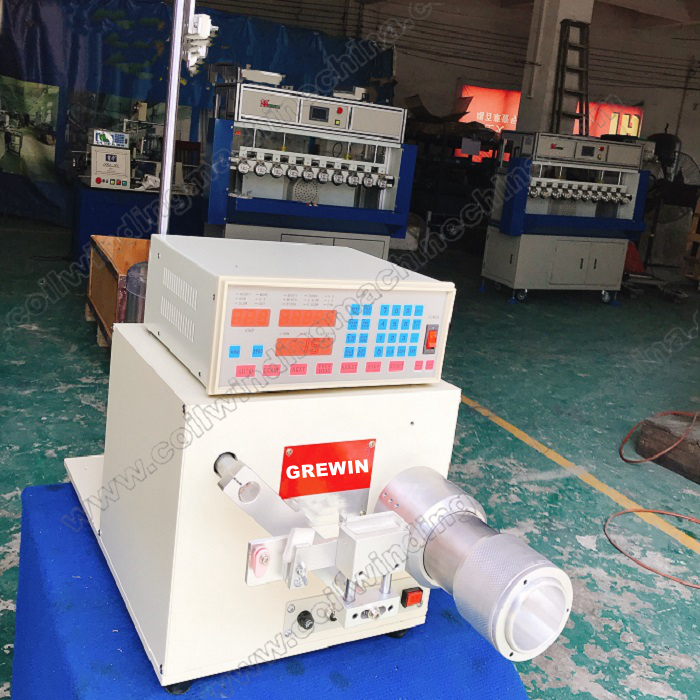

Semi-Auto Voice Coil Winding Machine

FOB Price:	2000.00 - 3500.00 USD/Other
Supply Ability:	5 set per Month
Shipping:	About 15 days
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	wooden box

Quick Details

Coil Number: Autotransformer
Coil Structure: Toroidal
Phase: Single
Usage: voice coil
Brand Name: Grewin
Model Number: GWCM-1901
Wire diameter: 0.02-1.2mm
Spindle number: 1
Winding width: 0-110
The max coil diameter: 150
Max speed: 6000

Specifications

NAME:GWCM-1901 Semi auto voice coil winder

Specifications

Spindle number	1
Wire size range	0.02-1.2mm
Winding width	0-110mm
the maxCoil diameter	150mm
Max speed	6000 RPM
Spindle motor	Brushless DC motor
Winder motor	Stepping motor
Machinepower	220V 50HZ
Machine Size	750400450mm
Package size	1090620620mm
Net weight	72kg

Features:

Multi-function micro computer design,easy data setting,shutdown can save data,and have power down protection function.

0-999sets of step setting capacity, can easily set fonward and reverse, cross slot and density winding work.

the starting point and width can be adjusted by teaching input and the data setting is accurate.

the surface paint of the Semi auto voice coil winder is baked at high temperature

Semi auto voice coil winder is eAsy and fast to replacement of winding fixture.

Brushless motor is used with low noise and clean sanitation.

Semi auto voice coil winder canCary automatic alcohol drop, alcohol flow can be controlled.

Equipped with foot switch device to improve working efficiency.

Error alarm function, which can display error information and prompt sound.

Application scope:horN voice coil,alcohol self-adhesive wire, hollow coi,. Hot coiling coil,etc.

Advantages:

Easy and fast to replacement of winding fixture.

Brushless motor is used with low noise and clean sanitation.

Semi auto voice coil winder Can cary automatic alcohol drop, alcohol flow can be controlled.

Equipped with foot switch device to improve working efficiency.

Warranty period 1 year

the technicians are experienced

APPLICATION:

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
