High Speed Toroidal Core Winding Machine for Toroidal Transformer

FOB Price:	2000.00 - 3500.00 USD/Other
Supply Ability:	15 set per Month
Shipping:	About 15 days
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	wooden box

Quick Details

Coil Number: Autotransformer
Coil Structure: Toroidal
Phase: Single
Usage: toroidal transformer
Brand Name: Grewin
Model Number: GWM-0520P
Wire diameter: 0.20-0.80
Max.Final OD: 60(110)
Min .Final ID: 8
Max.Final Height: 30
Max. speed: 800rpm

Specifications

NAME:GWM-0520P Auto Air Coil Winding Machine

SPECIFICATION:

Wire diameter	0.20-0.80	Max.Winding speed
Max.Final coil.O.D	Φ60(110)	Wire spacing	Proportional linkage
Min.Final coil.I.D	Φ8	Supply voltage	AC 220V(50Hz)
Max.Finalcoil height	30	Mechanical dimensions	550500580
Controller storage capacity Programs	29 set	Weight	83kg

FEATURES:

Auto Air Coil Winding Machine are fast machines for mass production of small inductive components.

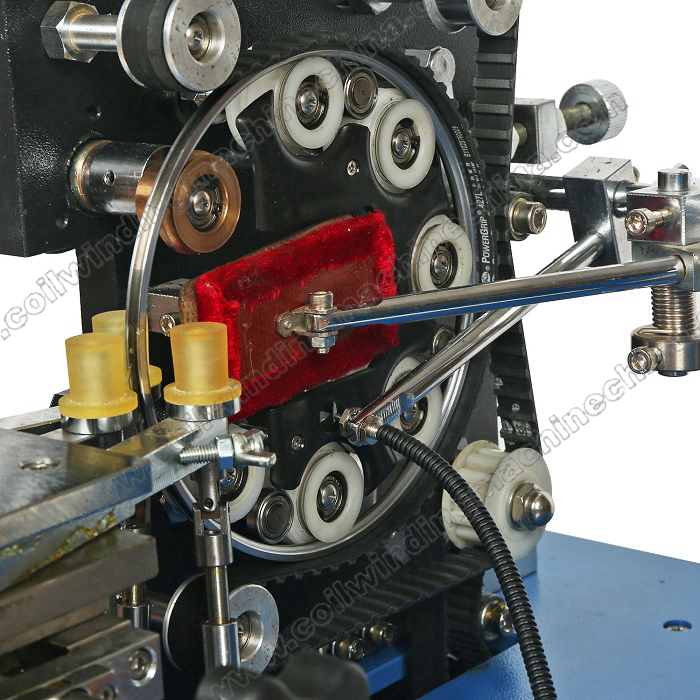

Collocate belt type winding head,interchangeable roller table with different size shuttle(magazine)for different toroid coil demensions wire diamete turns,so that to reduce the cost.One set standard automatic toroid winding machine include

Auto Air Coil Winding Machine utilize slider heads and belt heads to accommodate a wide range of core sizesand wire diameters.

Main drive and core rotation are accomplished by powerful,long life AC motors and proportionally linkedvariable speed controllers.

Auto Air Coil Winding Machinecan aCcurately count length of loading wire by length sensor,the wire length sensor be integrated in the winding motor.

ONe PCS shuttle only,Other sizes winding shuttle are optional

Hi-tech shuttle for highest efficiency.

Separate speed controls for wire loading and winding.

ADVANTAGES:

Wide application range, large speed adjustment range, suitable for winding diameter span, iron core clamping styles, the brake can adjust the pressure, large diameter, small inner hole coarse wire diameter can be solved.

the Auto Air Coil Winding Machine efficiency is high. the winding efficiency can be greatly improved by appropriately adjusting the brake to match the corresponding speed.

All the wire crossing parts can ensure that the wire is not damaged.

High versatility of parts and easy maintenance.

Complete varieties, wide wire diameter cross domain, can be used in one machine

APPLICATION:

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,coNverter inductor and heavy toroidal core etc.
