Rectangular Coil Winding Machine
| FOB Price: | 2000.00 - 3500.00 USD/Other |
|---|---|
| Supply Ability: | 10 set per Month |
| Shipping: | About 15 days |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | wooden box |
Quick Details
- Coil Number: rectangular
- Coil Structure: rectangular
- Phase: Single
- Usage: rectangular core transformer
- Brand Name: Grewin
- Model Number: GWM-0319
- Wire diameter: 0.50-1.60
- Max.final coil.O.D: 65-430 55
- Min .Final ID: 45-385 35
- Max.Final Height: 60
- Controller storage capacity Programs: 29SET
- Max.winding speed: 200RPM
- Wire Spacing: Proportional linkage
Specifications

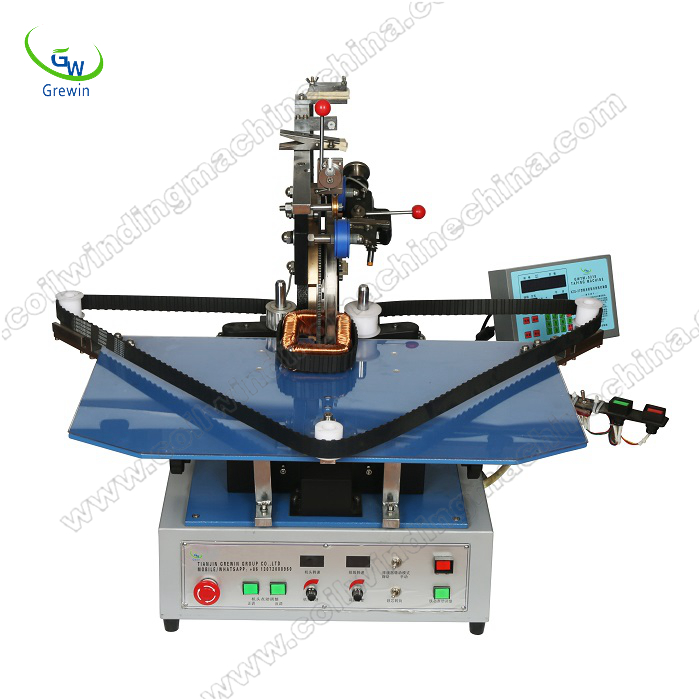

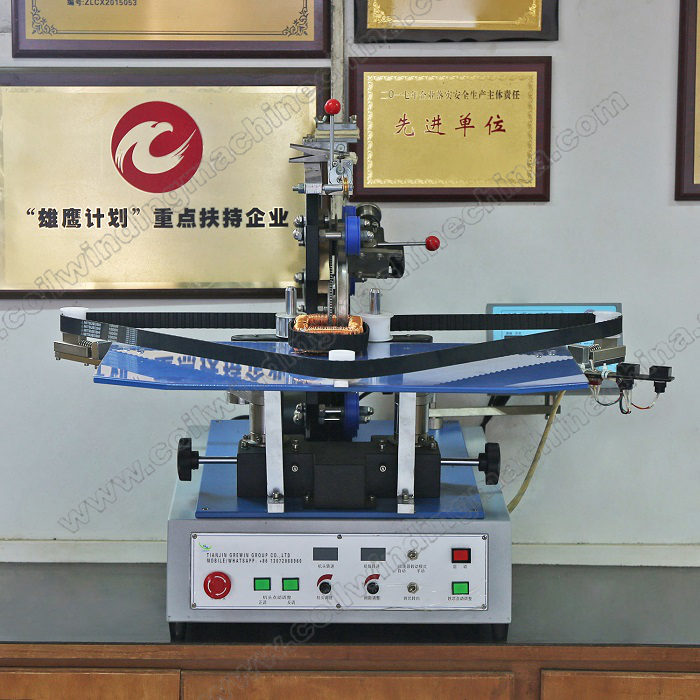

NAME:GWM-0319 Rectangular Coil Winding Machine
SPECIFICATION:
Wire diameter |
0.501.60 |
Max.Winding speed |
200rpm |
Max.Final coil.O.D |
Φ65430,φ55 |
Wire spacing |
Proportional linkage |
Min.Final coil.I.D |
Φ45-385,φ35 |
Supply voltage |
AC 220V(50Hz) |
Max.Finalcoil height |
60 |
Mechanical dimensions |
1000950750 |
Controller storage capacity Programs |
29 set |
Weight |
100kg |
FEATURES:
GWM-0319 Rectangular Coil Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire without insulation damage.

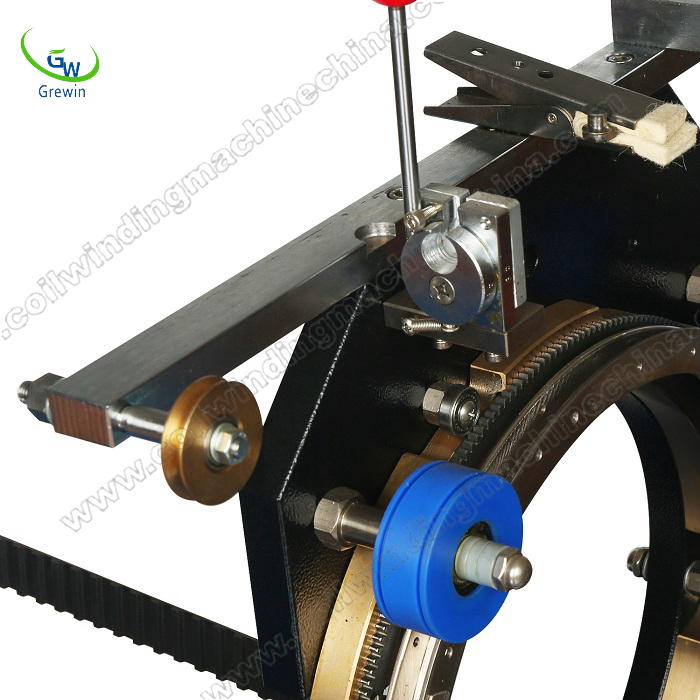

the open gap gear rack and hinged gap magazine of Rectangular Coil Winding Machine facilitate core change,maximzing output.
Easily exchangeable magazines secure maximum flexbility.

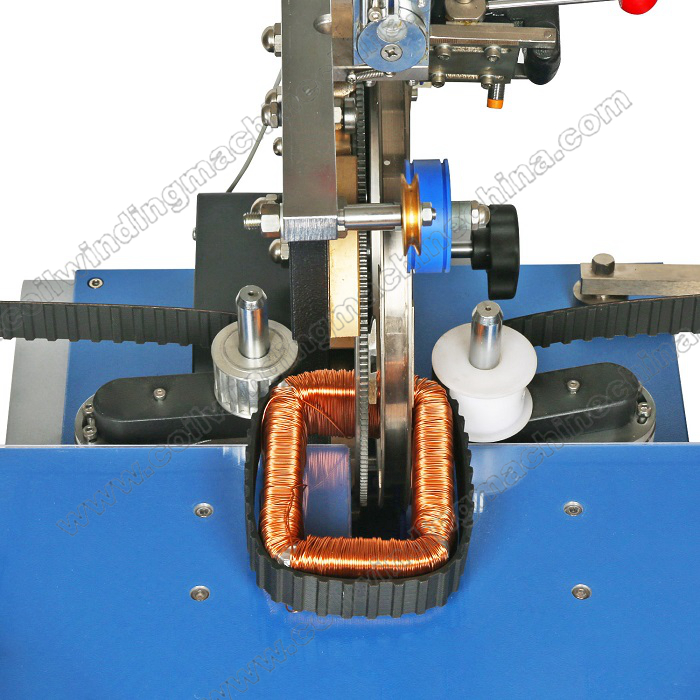

Rectangular Coil Winding Machine can adopts the gear type winding heads,one winding head and interchangeable roller table with different size shuttle (magazine) for different dimensions coils and different wires and tapes,turns,so that to reduce the cost.
Extremely powerful,maintenance free AC motors for main drive and core rotation.
Memory capacity accommodates 29 sets programs with off-power memory retention.
ADVANTAGES:
Wide range of application, Large range of Speed adjustment, wide range of the wire diameter, Multi-style of core, Brake tension adjustable, Good settlement for large outer diameter, small inner diameter, heavy wire coils.
High production efficiency, increase winding efficiency by adjustment of suitable brake tension,
Each wiring part guarantee no wire damage.
Parts highly optimized and universal for general use, Easy maintenance
Enquiries can be quoted one day service

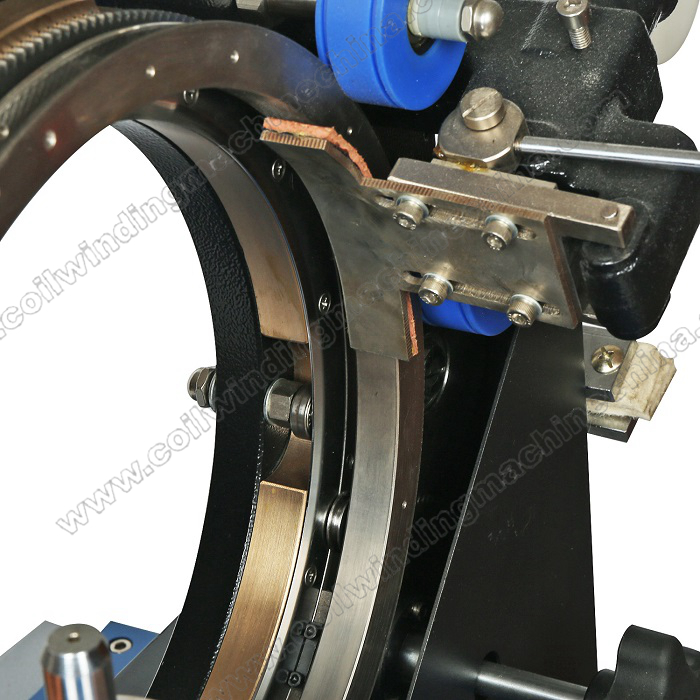

the storage ring has good material and long service life
Stable machine performance
Communicate parameters in a timely and thoughtful manner
Complete specifications and data
APPLICATION:
Rectangular Coil Winding Machine is the best suited to inductor,rEctangular transformers,rEctangular coil, power inductors,UPS inductor,coNverter inductor etc.
