Wedge Wire Screen Nozzle Filter for Industry

FOB Price:	1.00 - 1000.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Month
Shipping:	tianjin
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	wooden

Quick Details

Brand Name: yuanlv
Condition: new
Medium Material: stainless steel
Certification: 90001
Weight: 20

Specifications

Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as under-drain media retention elements, flow distributors in demineralizers, water softeners in pressure, and gravity sand filters.

Except for filtering and screening applications, wedge wire nozzles have other applications. Just install several nozzles uniformly to be used as collectors at the bottom of the vessels.

All spec of water filter cap suit for matched Ion-exchange column, activated carbon filters, drainage systems can also be used for the rapid sand filter. the water Filter nozzle is part of the water distribution system at the bottom of the filter pool, it can effectively wash out filters for sludge in debris, and keep filtering tank water running. Long, short handle, Plum-shaped, made in stainless steel wedge wire material, Reasonable structure, connected firmly, high compressive strength, gaps are not aberrations, can make no backwater district between the filter plate, not sludge deposit in, effect.

Water filter nozzle with a long handle is used in Backwash water distribution system filter pool, Water filter nozzle with shot handle is used in single Backwash water and gravity, pressure filtration water treatment equipment, such as tanks and ion-exchange filter bed filtration Filter nozzle and cap is used in the water filter of living water.

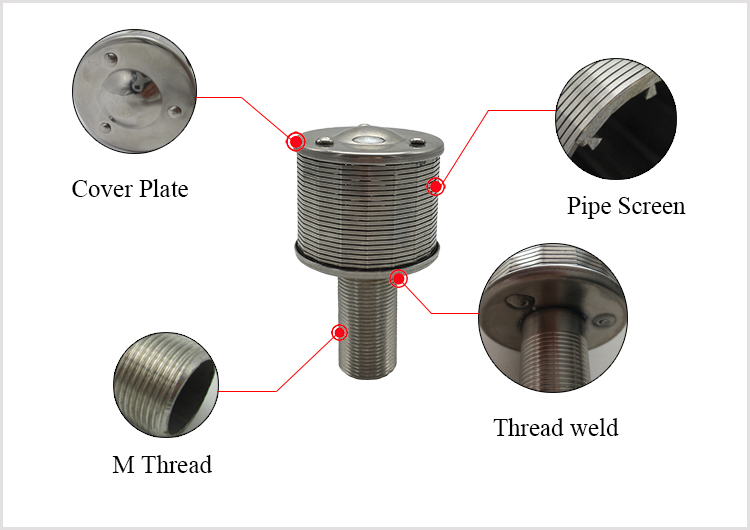

Wedge Wire Screen Nozzle filter for industry

Specifications of Long-handle stainless steel wedge wire filter nozzle:

No.	Type	Ton	SlotOpening	Size				0.2-0.25mm slot opening Area of through-flow mm2(reference)
No.	Type	Ton	SlotOpening	D	L1	L	M	0.2-0.25mm slot opening Area of through-flow mm2(reference)
1	SH45-1-C	0.5	0.2-0.5	45	45	95	24	500
2	SH53-2-B	1	0.2-0.5	53	45	100	24	570
3	SH53-2-C	1.5	0.2-0.5	53	50	110	32	700
4	SH57-3-B	2	0.2-0.5	57	45	110	32	600
5	SH70-4-B	3	0.2-0.5	70	55	120	32	1000
