Quick Details
- Pressure: Low Pressure
- Standard or Nonstandard: Nonstandard
- Power: Electric
- Structure: Gear Pump
- Brand Name: BOSUN
Specifications

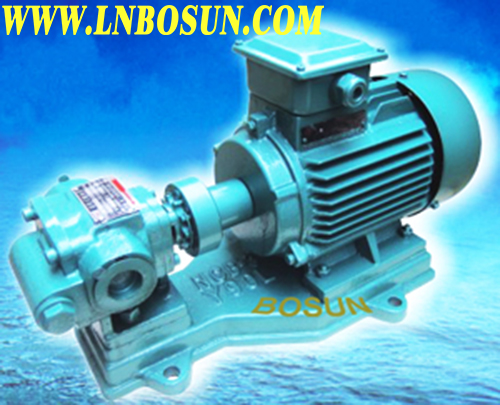

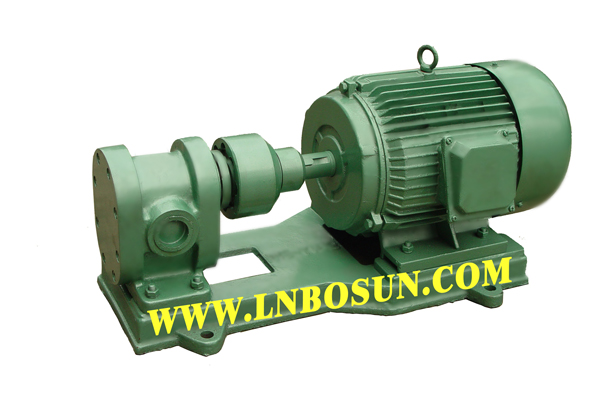

the marine gear pump is used to transfer oil as MFO transfer pump, HFO transfer pump, DO transfer pump and lube oil transfer pump.
Type: KCB (2CY) series
Model | Nozzle Size |
Capacity | Discharge Pressure (MPa) |
Suction Head |
Motor Power (KW) | |
(inch) | (m3/h) | (L/min) | (m) | |||
KCB18.3 (2CY-1.1/14.5-2) | 3/4 | 1.1 | 18.3 | 1.45 | 5 | 1.5 |
KCB33.3 (2CY-2/14.5-2) | 3/4 | 2 | 33.3 | 1.45 | 5 | 2.2 |
KCB55 (2CY-3.3/3.3-2) | 1 | 3.3 | 55 | 0.33 | 5 | 1.5 |
KCB55 (2CY-3.3/5-2) | 1 | 3.3 | 55 | 0.5 | 5 | 2.2 |
KCB83.3 (2CY-5/3.3-2) | 1/2 | 5 | 83.3 | 0.33 | 5 | 2.2 |
KCB83.3 (2CY-5/5-2) | 1/2 | 5 | 83.3 | 0.5 | 5 | 3 |
KCB200 (2CY-8/3.3-2) | 2 | 8 | 133 | 0.33 | 5 | 4 |
KCB200 (2CY-12/1.3-2) | 2 | 12 | 200 | 0.13 | 5 | 4 |
KCB200 (2CY-12/3.3-2) | 2 | 12 | 200 | 0.33 | 5 | 5.5 |
KCB200 (2CY-12/6-2) | 2 | 12 | 200 | 0.6 | 5 | 5.5 |
KCB200 (2CY-12/10-2) | 2 | 12 | 200 | 1 | 5 | 7.5 |
KCB300 (2CY-18/3.6-2) | 3 | 18 | 300 | 0.36 | 5 | 5.5 |
KCB300 (2CY-18/3.6-2) | 3 | 18 | 300 | 0.36 | 5 | 7.5 |
KCB483.3 (2CY-29/3.6-2) | 3 | 29 | 483.3 | 0.36 | 5 | 7.5 |
KCB483.3 (2CY-29/10-2) | 3 | 29 | 483.3 | 1 | 5 | 11 |
KCB633 (2CY-38/2.8-2) | 4 | 38 | 633 | 0.28 | 5 | 11 |
KCB633 (2CY-38/8-2) | 4 | 38 | 633 | 0.8 | 5 | 22 |
KCB960 (2CY-60/3-2) | 4 | 60 | 960 | 0.3 | 5 | 18.5 |
KCB960 (2CY-60/6-2) | 4 | 60 | 960 | 0.6 | 5 | 30 |
KCB2000 | 6 | 120 | 2000 | 0.3 | 5 | 30 |
2CY-120/3-2 | ||||||
KCB2500 (2CY-150/3-2) | 6 | 150 | 2500 | 0.3 | 5 | 37 |
the internal eccentric gear pump is appplied to handling various oils such as crude oil, HFO, lube oil, gasoline, diesel oil and vegetable oil. Compared to external gear pump (KCB series), the NCB series internal eccentricgear pump is smaller andquieter, with lower pulsation, higher efficiency, higher pressure and longer life.
Main data of NCB series internal eccentric gear pump:
Capaicty: up to 120m3/h (2000LPM)
Pressure: up to 2.5MPa
Material: cast iron/carbon steel/stainless steel/brass
Sealing: framework oil seal/mechanical seal/gland packing
