| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Oceania, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Max. Power: 1.2W
- Number of Cells: 12pcs
- Size: 85x85x1.8mm
- Material: Monocrystalline Silicon
- Brand Name: WSL Solar
- Model Number: WSL-S001
Specifications

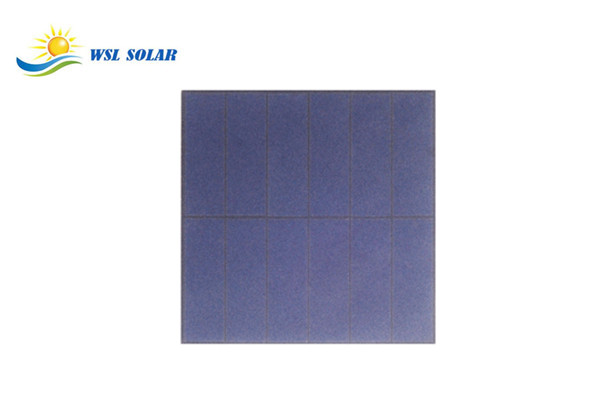

this 6v 1.2w IBC solar panel is built with the super high efficiency Sunpower solar cell. It is laminated by PET film, which is light weight and thin. this 6 volt solar panel is great for charging your 3.7-volt DC batteries and ideal for use in off grid applications such as smart phones, radio, Bluetooth, wireless sensors, RF Radio Sensitivity or solar gifts.
Features:
- Sunpower solar cell with efficiencies of up to 23% guarantee high power output
- Matte finish and no busbar on panel surface
- ETFE laminated, light weight and thin
- Waterproof, scratch resistant & UV resistant
- Excellent performance under low light environments
- Custom manufacturing in various size & shapes available
Solar Panel Specification
| Item No. | WSL-S001 |
| Solar Panel Size | 85x85x1.8mm |
| Peak Power (Pmax) | 1.2W |
| Voltage at Pmax (Vmp) | 6V |
| Current at Pmax (Imp) | 200mA |
| Open Circuit Voltage (Voc) | 7.2V |
| Short Circuit Current (Isc) | 220mA |
| Cell Type | High Efficiency Sunpower Solar Cell |
| Power Tolerance | ±5% |
| Encapsulation method | PET Film |
| Back Sheet | Double-sided FR4 PCB |
| Product Warranty | 2 Years |
| Lead time | 20 Days |
| Storage temperature | -20°C ~ 45°C |
| Working temperature | -40°C ~ 65°C |
| Standard Test Conditions (STC) | 1000W/m2, 1.5AM, 25°C Cell temperature |
to watch the video of this type of custom solar panels.
