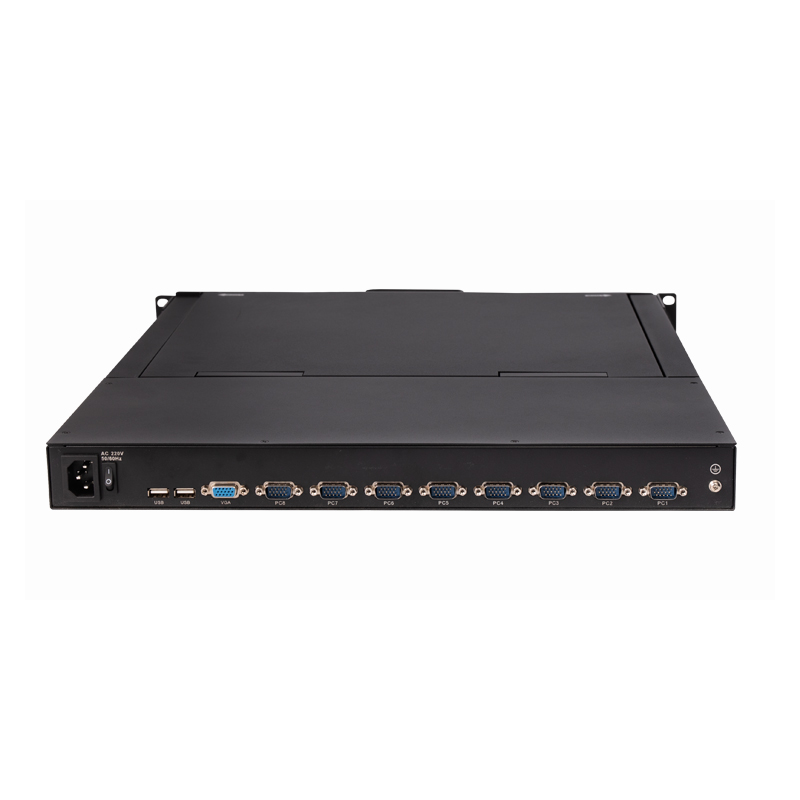

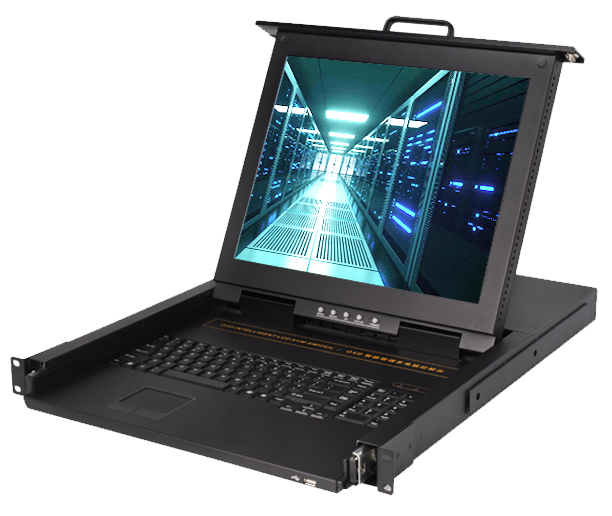

17-Inch, 8-Port KVM Console with LCD, 1 /4/8/16 Interface

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Specifications 17inch 8port KVM Console with LCD 1 4816 interface

Model:	KVM-1701U KVM-1704U KVM-1708U KVM-1716U
Computer Connections:	Direct 4, Max: 1 /Direct 4, Max: 128 / Direct 8, Max: 256 / Direct 16, Max: 512
Cable port:	D-SUB15 (LCD, PS11/USB keyboard, mouse).OSD switch Support.
Switch mode:	Hotkey, OSD menu
Switch Scan Time:	1-255 second (OSD adjustable)
LCD Display:	17" TFT LCD Resolution: 1280*1024 Brightness:300nits Contrast:1000:1
Keyboard/Mouse:	104 Mechanical mute Keyboard Touchpad
Input:	AC100-240V 47-63HZ, 30W
Cabinet Material:	High-strength and Anti-corrosive steel plate
Color:	Insulated black paint (other colors optional)
Dimension ( L x W x H ):	510x440x44.5MM
Weight:	20.6-25.3Kg
for Cabinet:	520-1040MM
Storage temp:	-30?C~70?C
Operating temp:	-10?C~60?C
Humidity:	0%-80%RH
Lifetime:	120000 hours
Certificate:	CCC, FCC, CE
