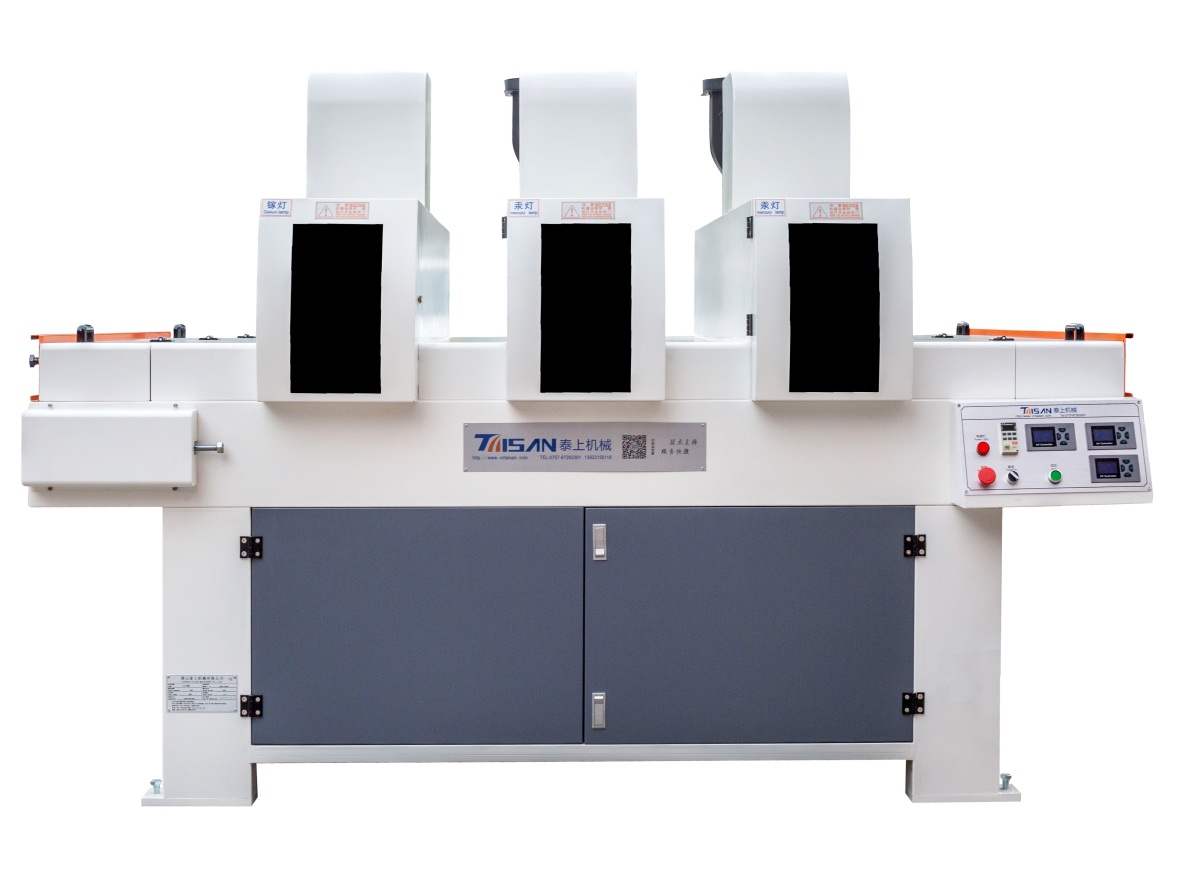

High Energy UV Curing Instant Drying Machine

FOB Price:	7200.00 - 7500.00 USD/Set
Supply Ability:	200 Set(s) per Month
Shipping:	foshan port
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	film packing

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 years
Weight: 1000kg
Dimension(L*W*H): 2500*1800mm
Brand Name: taisan
Certification: CE
Power(W): 0.75KW
Voltage: 380v50HZ
Model Number: 1420
Condition: New
Name: UV dying machine
working width: 600mm,1000mm,1320mm
feeding speed: 0-30m/min
feeding power: 0.75KW
tube power: 9.6KW*2
fan power: 0.75KW*2-3
paint type: UV
power supply: 380V50HZ
machine dimension: 3000*1060*1860,3000*1360*1860,3000*1960*1860

Specifications

UV drying machine:

Suitable products:this equipment is mainly suitable for paint instantly drying of furniture, door panels, wood plates, metal plates, glass,PVC sheets,etc. after UV coating

Working principle:Adopt imported high mercury UV lamp and reflector plate, ultraviolet drying.

Coating advantage:Increased hardness of painted products surface, UV paint instantly drying,greatly reduce the time of coating process.

high energy Uv Curing instant drying machine
