Sicon Chat Union Electric Co., Ltd.
China Manufacturer with main products: EV Charging Stack |
EV Charging Stack SCU Electric
| FOB Price: | 500.00 - 5000.00 USD/Unit |
|---|---|
| Supply Ability: | 500 Unit(s) per Month |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden case |
Quick Details
- Maximum Current: N/A
- Rated Voltage: 12V
- Application: Charger Controller
- Brand Name: SCU
- Charging Mode: N/A
Specifications
EVMS EV Charging Stack (Power Unit + Charge Post)
EVMS EV charging stack or is a split-type charging system meeting multiple standards CCS, CHAdeMO, GB/T. Adopting modular design concept and forefront power electronic technology,consists of power stack, control units and charge posts. both Indoor and Outdoor types of ev charging stations available.
Scu feature icon
Flexible design
Flexible multi-protocol designed: CCS, CHAdeMO, GB/T.
240KW outdoor type stack: 2, 4, 8 outlets, each output 0 ~ 60KW or 0 ~ 120KW;
360KW indoor type stack: 2 ~ 12 outlets, 30 ~ 180KW flexible output.
Scu feature icon
Humanization design
12.1 inch LCD/LED screen to display information in real time, easy operation and humanized user interface;As a professional,we support various online payment methods;
Scu feature icon
Perfect function
High adaptability of temperature range, isolated heat dissipation air ducts;
High efficiency, high reliability, ultra low radiation, fast maintenance, flexible capacity expansion, energy efficiency and environmental protection.
EV charging stack types
Power unit of EV charging stack
EVMS-240 (power unit)
Use environment: outdoor
System capacity: 240KW
Maximum outlets: 8

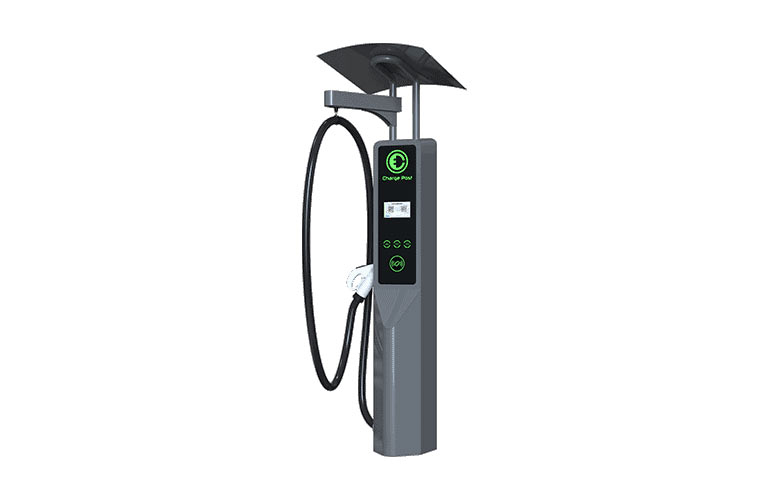

Charge post of ev charging stack
EVMS-240 (charge post)
Protection degree: IP55
Dimension: 320*280*1740
Output capacity: 15~60KW or 0~120kw
Specifications of EV charging stack
Model |
EVMS-240 |
Use environment |
Outdoor |
System capacity |
240KW |
Maximum outlets |
8 |
Output capacity of each route |
15~60KW or 0~120kw |
Input voltage |
400VAC±20% |
Input voltage range |
260V~530V (260V~304VAC, output power derating 50%) |
Power factor |
>0.99 |
Working frequency |
50/60HZ |
Output voltage |
200VDC-500VDC/ 300VDC-750VDC/150VDC-1000VDC |
Overall efficiency |
95% |
BMS auxiliary power supply |
12V/10A |
Communication interface |
Ethernet, CAN/RS485, 3G/4G |
Acoustic noise(dB) |
≤60dB |
Protection degree |
IP55 |
Dimension |
1300*750*1950(power stack)/320*280*1740(charge post) |
