HPC High Power Charger Sicon Chat Union Electric

FOB Price:	500.00 - 5000.00 USD/Unit
Supply Ability:	500 Unit(s) per Month
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	wooden case

Quick Details

Brand Name: SCU
material: N/A
Color: N/A
Warranty: N/A
Card Type: N/A

Specifications

HPC Ultra Fast Charging Station 350kW

EVHS-350, is a new and innovative solution to the growing demand for fast high current charging of next-generation electric vehicles(E-Bus and Luxury EVs). EVHS-350 system adopts modular structure design and the most advanced ultra-fast charging technology. this kind of high power ev charger consists of one power unit and 2 charge posts.

It's a high power EV charger to charge any CCS Compatible eBus or eVehicles with 350kw, 500A max.

Scu feature icon

Compatible car brands

BMW, Volkswagen, GM, Porsche, Audi, Peugeot, Citroen, Kia, Renault, Daimler, Mercedes, Jaguar

Scu feature icon

Feature

HPC charger supports CCS connector up to 500A liquid-cooled cables Reliable, robust, modular hardware Simple, quick and easy installation Daylight readable touch screen display RFID authorization

Scu feature icon

Application

Public operations such as highway rest stops, petrol stations, airport etc. Private operations such as EV dealers, EV fleets etc.

High Power Charger types

HPC Power Unit

Configuration: one power unit + 2 charge post

Display: 10'' TFT Color screen

Communication Protocols: OCPP 1.6J

Scu_hpc_dispenser_500A_outlet

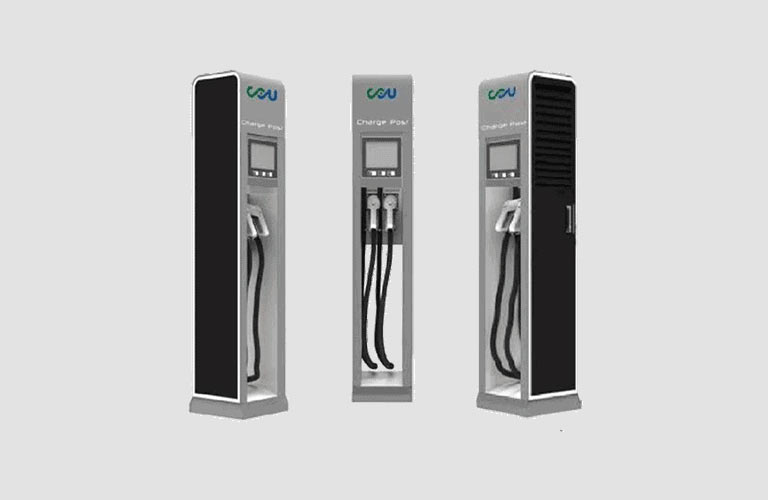

HPC Dispenser 500A/outlet

Specifications of HPC Charger

AC Input for the DC Output	Power connection	3P + N + PE
	Voltage range	400 Vac ± 20 %
	Frequency	50 Hz or 60 Hz
	Overall efficiency	95%
DC Output	Voltage	150Vdc to 1000Vdc
	Max Current	500A
	Nominal Power	350kW
Others	DC-Interface	CCS 2
	RFID system	ISO/IEC14443A/B, Mifare; Optional: FeliCa? 1, NFC reader mode, ISO/IEC15693, Calypso, Legic
	Network connection	Standard configuration: LAN Interface; Support 2G/3G/4G/Wi-Fi modem
	Communication Protocols	OCPP 1.6J
	Operating temperature	-35C-60C ( -20C to -30C, heating required)
	Storage Temperature	-40 C to +70 C
	Operating humidity	≤95% non-condensing
	Protection degree	IP54, IK10

as a reliable, we have types of related products for sale, if you have needs, please contact us.
