Bioevopeak Co., Ltd.

China Manufacturer with main products: Lab Equipment, Life Sciences Instruments, Biotechnology & Diagnosis Analyzers, Quality Control & Analysis Device, Environmental Monitoring...

Home >Products Catalog > Bioevopeak Automatic Precision Vacuum Drying Oven with CE Approved

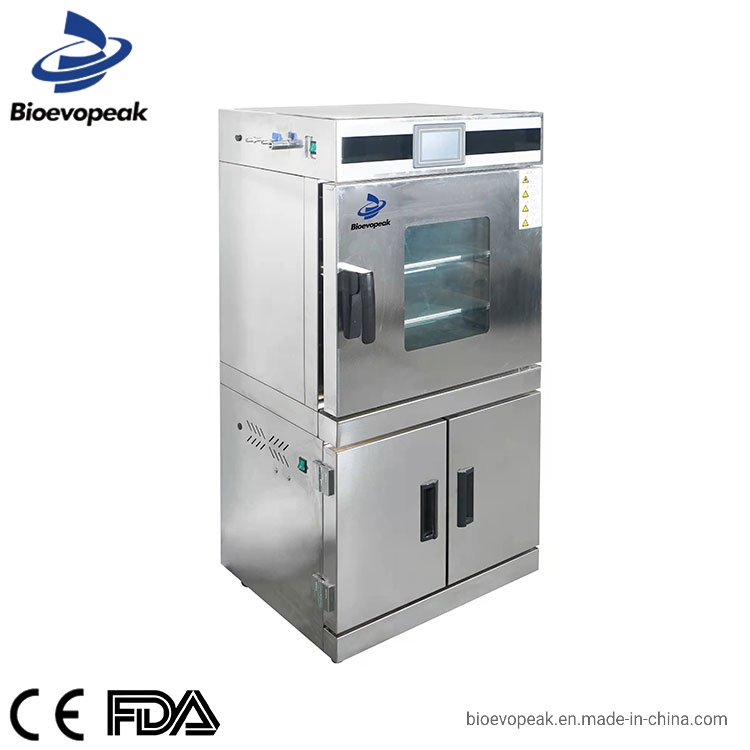

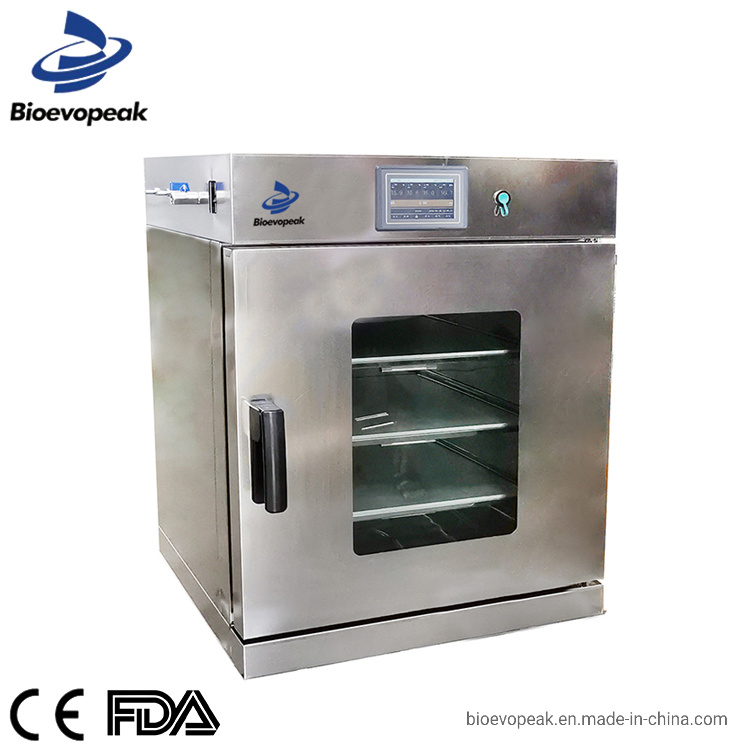

Bioevopeak Automatic Precision Vacuum Drying Oven with CE Approved

FOB Price:	2271.00 - 3197.00 USD/Unit
Supply Ability:	200 Unit(s) per Month
Shipping:	Qingdao, Shanghai, Tianjin, Ningbo, Guangzhou, Shenzhen
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	High-Quality Cartons/Crates

Quick Details

Classification: Other
Brand Name: Bioevopeak
Classification: Vacuum Drying Oven
Power: 2.0kW;1.6kW;1.2kW
Weight: 15kg
Material: Stainless steel
Model Number: DOV-55P, DOV-90P

Specifications

Bioevopeak Automatic Precision Vacuum Drying Oven with CE Approved

Vacuum Oven

Uses:
It is designed for drying heat-sensitive, easily decomposed and easily Oxidized substances. It is widely used in medicine, food, light Industry, chemical industry, agricultural scientific research, Environmental protection and other experimental fields.

Features
1.SUS304 embossed stainless steel housing, SUS304 mirrored stainless steel studio, 5083 corrosion resistant aluminum plate.
2.Independent pluggable shelf heating, each shelf temperature controlled separately.
3.Fixed value or program operation mode, true color 5.0-inch touch Screen multi-section PID temperature controller, high temperature Control accuracy, real-time temperature curve record, convenient for Users to see the heating process. the program mode can realize Temperature control and vacuum degree multi-stage programming operation To improve the experimental efficiency.
4.Automatic vacuum degree control system, set the vacuum degree, Automatically reach the set vacuum degree. Standard with inflatable port, manual and electric double set of exhaust device.
5.Users can configure the vacuum pump, standard with the vacuum pump oil Return device, convenient for customers to use, avoid the vacuum pump Oil return.
6.BLT type standard with vacuum pump, air pipeline equipped with air filter device, improve the service life of vacuum pump

Specifications

Model		DOV-55P	DOV-90P
		DOV-55PV	DOV-90PV
Heating Mode		Shelf direct heating
Function	Temp. Range	RT+10-250℃
	Vacuum Degree Range	<133Pa
	Temp. Resolution Ratio	0.1℃
	Temp. Motion	±1℃
	Heating-up Time	≤40 minutes
Structure	Inner Chamber	SUS304 mirror stainless steel
	Outer Shell	SUS304 embossed stainless steel
	Shelf	5083 Corrosion-resistant aluminum plate
	Insulation Layer	Aluminium silicate fibre
	Heater	Mica electrothermal film
	Observation Window	Bulletproof tempered glass
	Vacuum Meter	Absolute pressure accuracy class 0.25
	Exhaust device	the manual and electric double exhaust device
	Air intake port	Standard inflation port
	BLT Vacuum Pump System	Double stage rotary vane vacuum pump 2L/S	Double stage rotary vane vacuum pump 4L/S
	(BL: without Vacuum Pump)	Vacuum pump air inlet drying filter
		Vacuum pump exhaust oil mist filter
	Nozzle Diameter	10mm
	Power	DOV-P:1.2kW	DOV-P:1.6kW
		DOV-PV: 1.6kW	DOV-PV: 2.0kW
Controller	Temp. Control Mode	5.0-inch LCD color touch screen multi-stage PID program temperature control,
		Single shelf independent temperature control
	Temp. Setting Mode	Touch Screen Type
	Timer	0-9999 minutes / 0-9999 hours (can adjust)
	Operation Function	Fixed value operation, regular operation, automatic stop
	Fixed Value Mode	Control temperature and vacuum at the same time
	Program Mode	Control temperature and control vacuum at the same time,30 programmable operation
	Additional Function	Vacuum pump oil return preventer
		Real-time temperature curve recording, with U disk data storage and export function
		Sensor deviation correction, temperature overshoot self-setting, internal parameter locking, power off parameter memory
	Temp. Sensor	PT100
Safety Device		over Temperature acousto optic alarm, sensor fault alarm, vacuum overvalue alarm
Specification	Inner Chamber(WDH mm)	415370340	450450450
	Exterior Size(WDH mm)	635565796	670645906
		(BLT:6355651296)	(BLT: 6706451406)
	Packing Size(WDH mm)	804705957	8407851062
		(BLT: 8047051457)	(BLT: 8407851562)
	Capacity	52L	91L
	Load per Rack	15kg
	Shelf Space	140mm	185mm
	Power Supply(50/60HZ)	AC220V/6.3A	AC220V/9.1A
	Current Rating
	NW/GW(kg)	DOV-P:67/92	DOV-P:82/105
		DOV-PV:87/112	DOV-PV:102/125
Accessory	Shelf	2
	Shelf Support	4
Optional Accessories		Shelf(Independent Temperature control), RS485 transfer to the USB communication Interface, Printer, Remote control, wireless SMS alarm
