Sicon Chat Union Electric Co., Ltd.
China Manufacturer with main products: EV Charging Stack |
UPS for Industrial Use Sicon Chat Union Electric
| FOB Price: | 500.00 - 5000.00 USD/Unit |
|---|---|
| Supply Ability: | 500 Unit(s) per Month |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden case |
Quick Details
- Application: Instrumentation
- Type: Line Interactive
- Protection: Overcurrent
- Phase: Three Phase
- Brand Name: SCU
Specifications
Specially designed for industrial application with high performance, high efficiency and high protection level, providing uninterrupted high-quality power supply for modern industrial manufacturing. Different ,contact us for more info of industrial UPS system price.

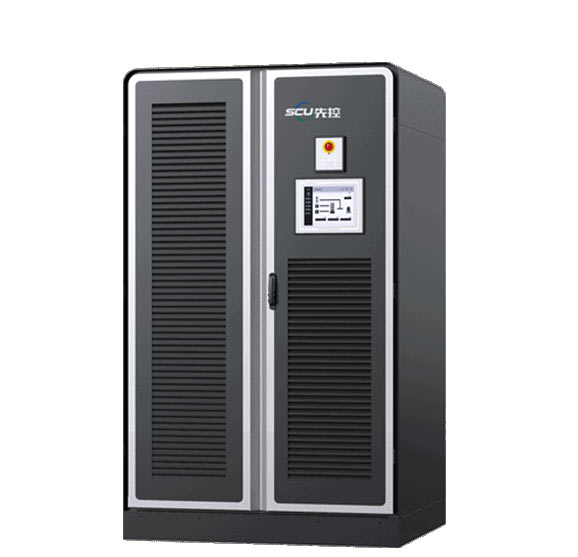

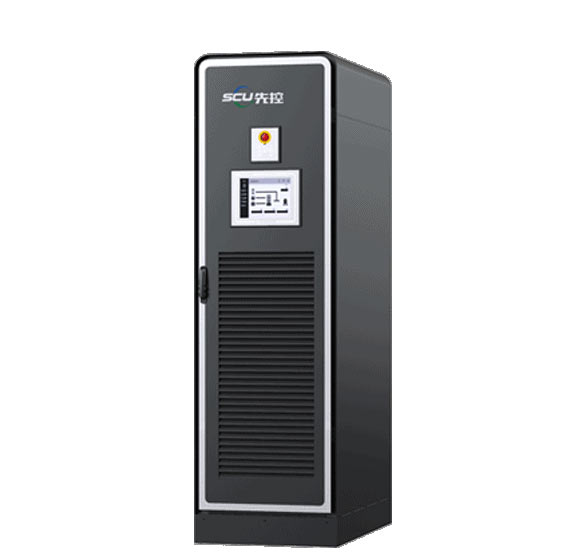

DSM series (80-640KVA)
DSM Industrial UPS Products, a robust UPS for industrial applications
in modern industry, the electrical environment is more complex, and the common problems such as voltage sag, surge and load fluctuation lead to abnormal operation of Electromechanical, transmission and electronic equipment. DSM series has super power grid adaptability and load capacity, higher protection level and multiple operation modes. DSM UPS for industrial use is more robust and durable, and can fully guarantee the power quality of key loads.
Scu feature icon
Stable performance
Three phase no neutral design, to solve zero ground voltage;
Standardized and modular design, supporting 4units UPS in parallel;
Super load capacity, output power factor 0.9;
Support lithium ion battery access.
Scu feature icon
Powerful functions
Voltage conditioning features adaptable to varied input and output voltage requirements;
Compatibility for diverse industrial environments and applications;
Flexibility in configuration and installation specific to various UPS systems in industrial applications.
Scu feature icon
High adaptability
Cold and hot air ducts operate in isolation,
Protection level IP40, to reduce the influence of environmental factors;
Configure output isolation transformer to realize electrical isolation.
Different Types of UPS Systems
Product
SCU industrial UPS
DSM80D/160D/240D
Max. Capacity: 80kVA/160kVA/240kVA
Size: 600*1000*2000 W*D*H(mm)
Protection degree: IP40
Power Conversion System PCS
DSM320D/400D
Max. Capacity: 320kVA/400kVA
Size: 1200*1000*2000 W*D*H(mm)
Protection degree: IP40
Energy Storage Converter
DSM480D/560D/640D
Max. Capacity: 480kVA/560kVA/640kVA
Size: 1600*1000*2000 W*D*H(mm)
Protection degree: IP40
Specifications of Industrial UPS
Model / Capacity |
DSM80D(80kVA);DSM160D(160kVA);DSM240D(240kVA); DSM320D(320kVA); | |||
DSM400D(400kVA); DSM480D(480kVA); DSM560D(560kVA); DSM640D(640kVA) | ||||
AC input |
Input mode |
3Ph+N+PE | ||
Rated input voltage |
380V/400V/415V |
480V |
220V/208V | |
Input frequency |
50Hz±10%,60Hz±10% | |||
Input PF |
≥0.99 | |||
DC input |
Rated input voltage |
384V DC | ||
AC output |
Output PF |
0.9 | ||
Output voltage |
380V/220V AC 400V/230V AC 415V/240V AC |
480V AC |
220V/128V AC 208V/120V AC | |
Overload capacity |
Operate 10mins with 150% load | |||
AC/AC efficiency |
≥96% |
|
| |
Remark |
UPS adapts to 208 / 120V and 220 / 128v mode, and its output power is reduced by half; | |||
If you want to know more about, please contact us.
