Modular UPS Systems (Li-Ion Batt)

FOB Price:	500.00 - 5000.00 USD/Unit
Supply Ability:	500 Unit(s) per Month
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	wooden case

Quick Details

Application: Medical
Type: Line Interactive
Protection: Lightning
Phase: Single Phase
Brand Name: SCU

Specifications

in the IT world, data security needs the protection. SCU, a professional UPS system manufacturer, can provide high-quality modular type at a competitive price.

CMS series (30-900KVA)

Advantage of Modular UPS

as an , SCU offers our business partners the most flexible and competitive modular UPS solution, with power modules 6kVA, 15kW, 30kW, UPS 50kW and 75kW, and UPS systems 12~30kVA, 60kW~900kW, then 4 unites parallel up to 3.6MW, and available with Lithium-ion Batteries Solutions

SCU Uninterruptible Power Supply (UPS) have been protecting clients' business over 20 years from small IT net work to 1MW to 100MW data centers.

Scu feature icon

Superior Reliability

Multi-level decentralized control technology;

Flexible redundancy:N+1,N+X, 2N

Physical isolation of cold and hot air ducts;

Support lithium ion UPS battery access.

Scu feature icon

Excellent Energy Saving

96.5% efficiency at online double Conversion mode;

99% efficiency at IECO mode;

Output PF 1, high load capacity;

Module sleep function ensures the power module always works in the best efficiency state;

Scu feature icon

High Availability

Generator Compatible;

Modular, standardized design;

Pay as grow, reduce the total cost of ownership (TCO)

Hot swap, quick repair and expansion;

Small footprint, high power density;

MOdularTypeUps

30-120kW UPS system with 15kW power module

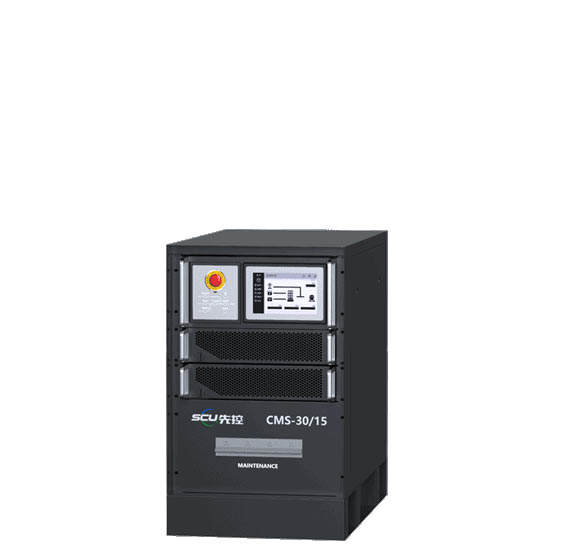

30kva UPS

CMS-30/15

Max. Power: 30kW

Power module: 15kW

442*800*662(W*D*H)mm

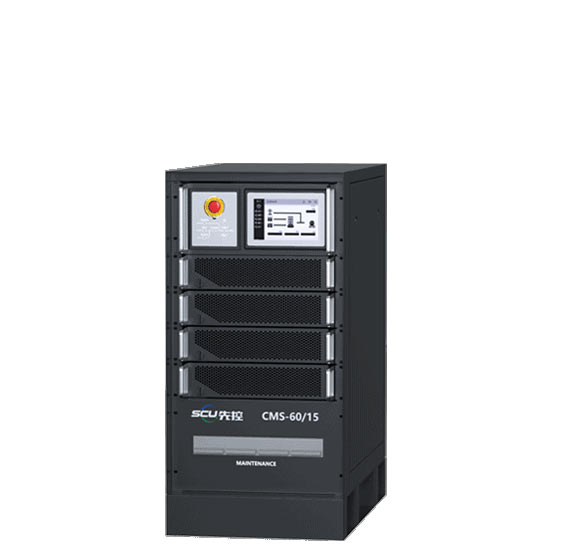

60kva UPS

CMS-60/15

Max. Power: 60kW

Power module: 15kW

442*800*840(W*D*H)mm

120kva Uninterruptible Power Supply UPS

CMS-120/15

Max. Power: 120kW

Power module: 15kW

442*800*1195(W*D*H)mm

MOdular UPS specifications

Model / capacity		CMS-30/15(30kVA); CMS-60/15(60kVA); CMS-120/15(120 KVA);
Power module	Model / capacity	CM15;15kVA/15kW
Mains input	Input mode	3Ph+N+PE
	Rated input voltage	380V/220V AC,400V/230V AC,415V/240V AC
	Input frequency	50Hz±10%,60Hz±10%
	Input PF	≥ 0.99
DC input	Rated input voltage	±240V DC
DC input	Input voltage range	±160V~±330V
AC output	Output PF	1
	Output voltage	380V/220V AC,400V/230V AC,415V/240V AC
	Overload	Operate 10mins with 125% load
	Efficiency	≥96%
	Communication function	Modbus,SNMP,Dry contact
