- Brand Name: Gearlink
- Type: Doppler Ultrasound Equipment
- Warranty: j4859c price
- Portable: j4859c price
- Certification: j4859c price
Specifications

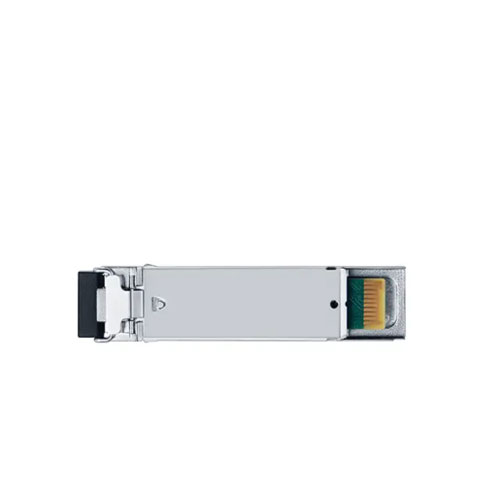

GearLink's gigabit GCS3L0C31 is used in Gigabit Ethernet, dual-channel, and bidirectional transmission synchronous optical network (SONET). Sfp 1.25 g 1310nm 10km transceiver conforms to multi-source protocol and SFF-8472, with digital diagnostic monitoring(DDM) function. The package of GCS3L0C31 is SFP with LC interface, the rate is 1.25G, the optical wavelength is 1310NM, and the maximum transmission distance is 10KM.
Compatibility of SFP 1.25G 1310nm 10Km LC Transceiver
GLC-LH-SM |
LH SMF 1310nm 10km SFP |
GLC-GE-DR-LX |
1000BASE-LX-SMF 1310nm 10km SFP/100BASE |
WS-G5486 |
1000BASE-LX SMF 1310nm 10km SFP |
GLC-LX-SM-RGD |
1000BASE-LX SMF 1310nm 10km GBIC |
SFP-GE-L |
LH SFP |
GLC-LH-SMD |
1000BASE-LX |
Specification of SFP 1.25G 1310nm 10Km LC Transceiver
Absolute Maximum Ratings of SFP 1.25G 1310nm 10Km LC Transceiver
Parameter |
Symbol |
Unit |
Min |
Max |
Storage Temperature Range |
Ts |
oC |
-40 |
85 |
Relative Humidity |
RH |
% |
5 |
95 |
Power Supply Voltage |
Vcc |
V |
-0.5 |
4 |
Recommended Operating Conditions of SFP 1.25G 1310nm 10Km LC Transceiver
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Case Operating Temperature Range |
Tc |
oC |
-10 |
|
70 |
Power Supply Voltage |
Vcc |
V |
3.135 |
3.3 |
3.465 |
Data rate |
|
GB/s |
- |
1.25/1.0625 |
- |
Now theWs g5486 price,Sfp ge l price andJ4859c price Is affordable, if you have needs, please contact us.
If you have needs toBuy glc lh SMD, please leave us a message.
