Home >Products Catalog > Liquid Flowmeter > DN20 (3/4'') New Electromagnetic Flow Meter for Measuring Conductive Liquids with High Precision RS485

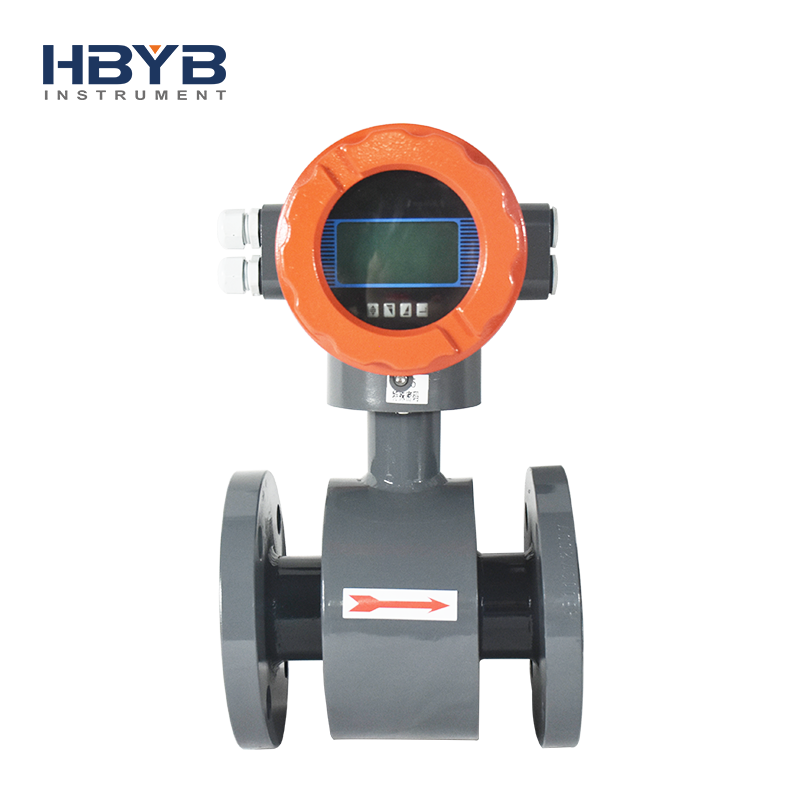

DN20 (3/4'') New Electromagnetic Flow Meter for Measuring Conductive Liquids with High Precision RS485

Supply Ability:	3,000 Piece(s) per Month
Shipping:	Qingdao/Shanghai/Tianjin/Dalian
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands

Quick Details

Brand Name: HBYB
Accuracy: 0.5%
Power Supply: 220V AC/ 24V DC /3.6V Lithium battery
output: Pulse/ Frequency/4-20mA
Medium: Conductive Liquid
Model Number: HBLD
Connection: Flange/Clamp/Thread/Insert
Communication output: Profibus DP /Hart /Modbus /GPRS/RS485
Protection grade: IP65 /IP67/ IP 68(optional)

Specifications

the measuring principle of electromagnetic flow meter is based on Faraday's law of electromagnetic induction. the sensor is mainly composed of a measuring tube with an insulating lining, a pair of electrodes installed by inserting the measuring tube wall, a pair of coils and an iron core to generate a working magnetic field. When a conductive fluid flows through the measuring tube of the sensor, a voltage signal proportional to the average flow rate of the fluid will be induced on the electrode. the signal is operationally amplified and processed to achieve various display functions. DN20 34 New Electromagnetic Flow meter for Measuring Conductive Liquids with High Precision RS485
