Jwell Extrusion Machinery Co., Ltd.
China Manufacturer with main products: Jwell Extruder China, Jwell Machinery China |

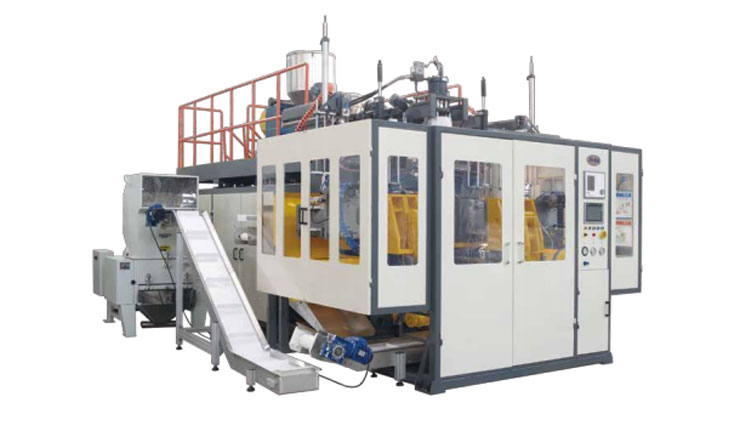

5 Ltr Blow Moulding Machine 2022
| FOB Price: | 1250.00 - 220000.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
Related products from verified members
Quick Details
- Warranty: /
- Brand Name: JWELL
- Power Type: /
- Type: /
- Condition: New
Specifications
is suitable for producing 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank, etc.
Optional multi-layer co-extrusion.
Optional view strip line system.
According to the product size, 5 ltr plastic blow moulding machine select different cavities of die head.
According to the different materials, optional JW-DB single station hydraulic screen-exchanger system.
According to customer's requirements, Jwell plastic extrusion china factory provides optional auto-deflashing online, scrap conveying online, finished product conveying online.
Description about 5 Ltr Blow Moulding Machine
Item |
Description |
Place of origin |
China |
Brand name |
JWELL |
Model number |
BM05D |
Minimum order quantity |
1 SET |
Packaging details |
Wooden pallet packing |
Delivery time |
90days |
Payment terms |
TT. LC |
Specifications of 5 Ltr Blow Moulding Machine
Technical parameters | |||||
Model |
Unit |
BM02D |
BM05D |
BM12D |
BM20D |
Max product volume |
L |
2 |
5 |
12 |
20 |
Dry cycle |
PC/h |
900*2 |
700*2 |
600*2 |
600*2 |
Die head structure |
|
Continuous type | |||
Main screw diameter |
mm |
65 |
75 |
90 |
90 |
Max plasticizing capacity (PE) |
kg/h |
70 |
90 |
160 |
160 |
Driving motor |
Kw |
22 |
30 |
45 |
45 |
Oil pump motor power |
Kw |
7.5 |
11 |
15 |
15 |
Clamping force |
KN |
40 |
70 |
120 |
160 |
Space between platen |
mm |
138-368 |
150-510 |
240-640 |
280-680 |
Platen size W*H |
mm |
286*330 |
350*400 |
450*500 |
500*520 |
Max. Mould size |
mm |
300*350 |
360*400 |
500*520 |
560*520 |
Platen moving stroke |
mm |
420 |
450/520 |
600/650 |
650 |
Heating power of die head |
Kw |
6 |
7.5 |
10 |
12.5 |
Machine dimension L*W*H |
m |
3.0*1.9*2.4 |
3.7*3.1*2.7 |
4.2*3.2*3.0 |
4.3*3.2*3.1 |
Machine weight |
T |
5 |
8.5 |
12 |
14 |
Total power |
Kw |
45 |
60 |
90 |
93 |
Note: Informations listed above are for reference only, the production line can be designed by customer's requirements. | |||||
5 Ltr Blow Moulding Machine Application
5 Ltr Blow Moulding Machine Application
Applicate to make 5 Ltr blow molding products. Provide complete project for:
View strip line
Take out robot
Conveyors for product and scrap
Crusher
Compressor
Chiller
MOOG
Accumulation head
Mold
Deflashing
Leak tester
5 Ltr Blow Moulding Machine Performance and Advantages
SIEMENS human-machine interface, Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen. B&R Austria human-machine interface and parison programmer can adjust within 300 points. MOOG parison programmer, Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Blowpin system: up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine) Electric system: SIEMENS CPU unit/SIEMENS temperature-control unit/SIEMENS digital-output unit/SIEMENS analog-output unit/MITSUBISHI CPU unit/ABB invertor revolving speed-contro/Schneider electric componets.
