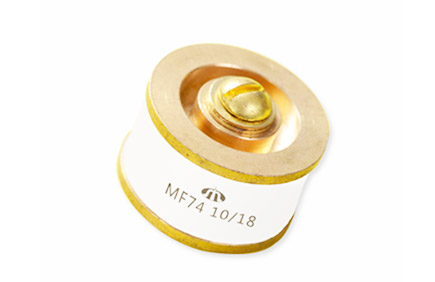

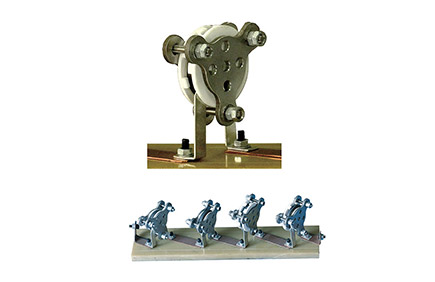

NTC Thermistor, Inrush Current Limiter(Power/High-Power/Super-Power)

FOB Price: 0.30 - 50.00 USD/Unit
Supply Ability: 100,000,000 Unit(s) per Year
Shipping: 3-4weeks deliver
Payment Terms: T/T
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangsu in China
Packaging Details: changeable.

Quick Details

  • Output: Max Steady State Current
  • Theory: Current Sensor
  • Usage: Consumption Sensor
  • Brand Name: Nanjing Shiheng Electronic Technology Co., Ltd
  • material: medal
  • Model Number: MF72/73/73T/74/75
  • Max Steady State Current: 0.1-12(A)
  • Dimensions(mm): 7-27.5(mm)
  • Approx.R of Max.Cur.: 0.014~18.70
  • Operating Temp.: -140
  • Max surge capacity(UF): 47~1200

Specifications

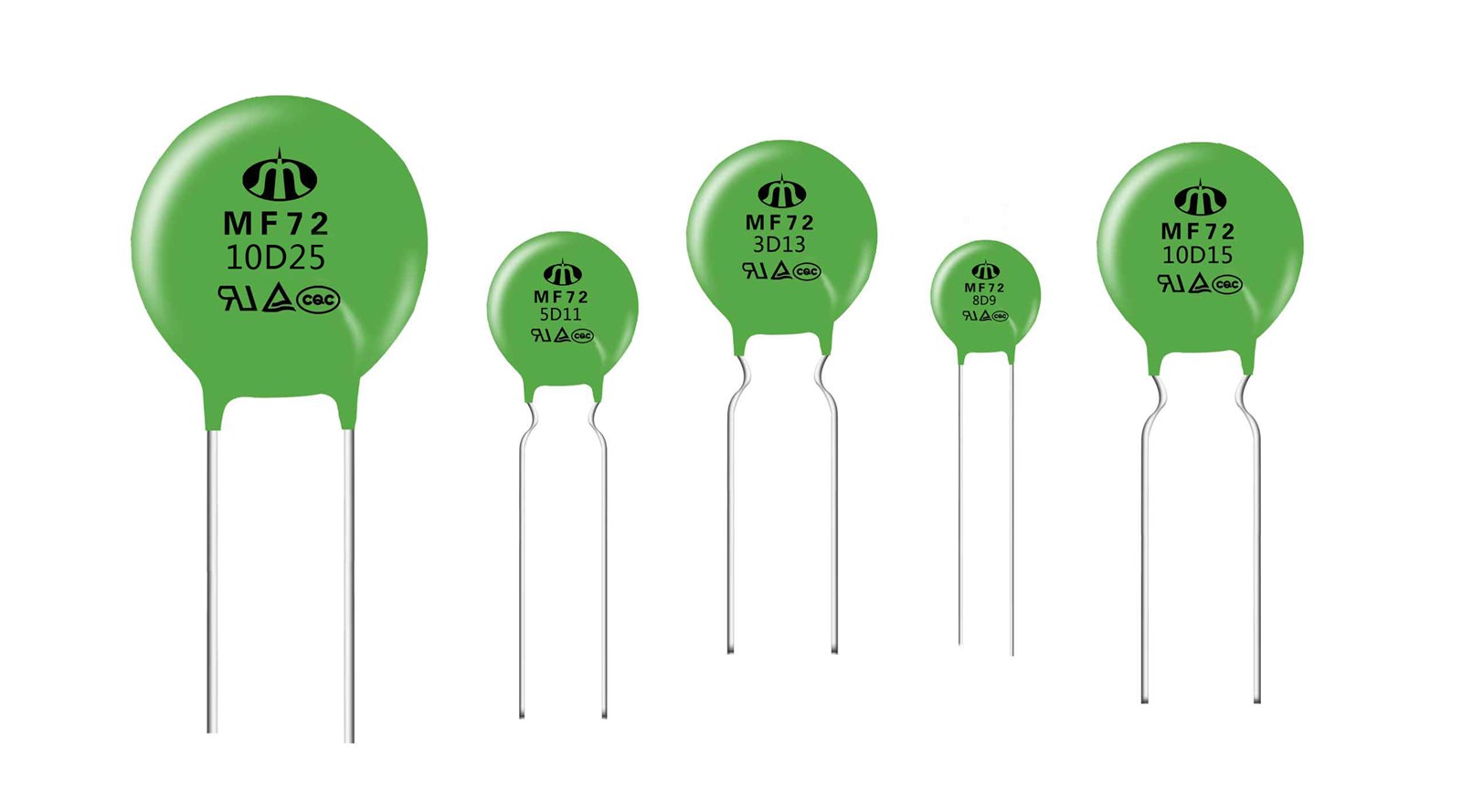

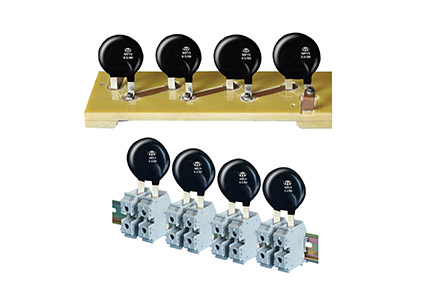

MF72 Power NTC Thermistor series



Introduction

When you turn on An electrical equipment, the surge current can be restrained by a power NTC termistor connected in series with the power circuit. Because of the continuing action of current,Temperature of power NTC thermistor Raising, the resistance will rapidly drop to a small value, the Consumed power can be ignored. so it can't affect normal operating Current. Therefore, using power NTC thermistor is a most effectively and most brief measure to restrain surge current, protecting electrical Equipment from destruction.



Applications

Coversion power-supply, switch power-supply, UPS power-supply

Electronic energy saving lamps, electronic ballast and all kinds of electric heater

All kinds of RT, display

Bulb and other lighting lamps



Characteristics

 Small size, strong power and strong capability of surge current protection.

Fast response to surge current

Big material constant (B value), Small remain resistance

 Longevity of service. High reliability

Integral series, extensive operating range



Dimensions(mm)

Part No

Dim(mm)

Sym

D

max

T

max

d

±0.05

F1±1

Straight lead

Kinked lead






Lmin

L1min

L2±2

MF72D5

7

5

0.6/0.45

5

25

17/5

5

MF72D7

9

5

0.6

5

25

17/5

5

MF72D9

11

5.5

0.8/0.6

7.5

25

17/5

5

MF72D1I

13

5.5

0.8

7.5

25

17/5

5

MF72D13

15.5

6

0.8

7.5

25

17/5

5

MF72D15

17.5

6

0.8

7.5

25

17/5

5

MF72D20

22.5

7

1.0

10

25

/

/

MF72D25

27.5

8

1.0

10

25

/

 /
