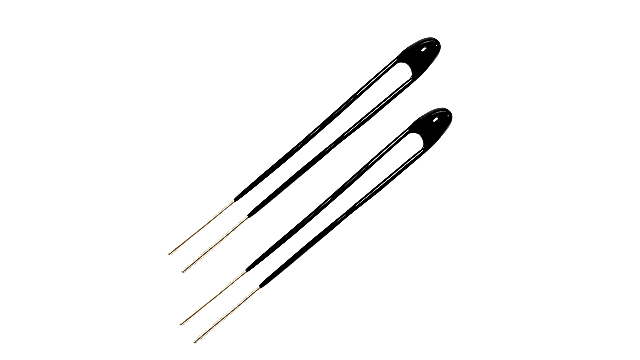

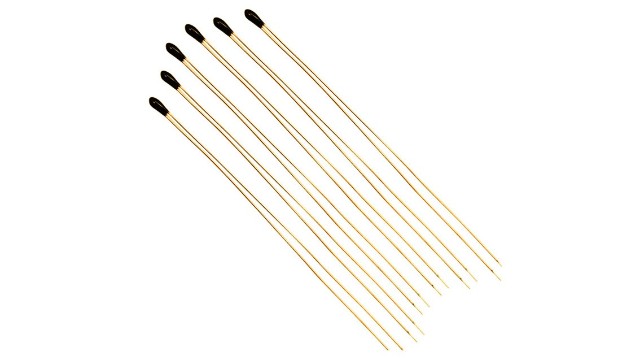

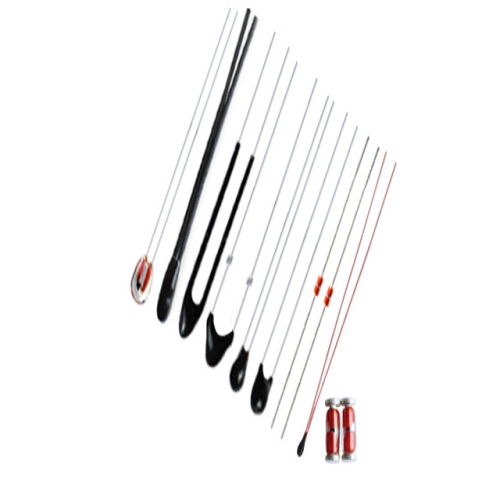

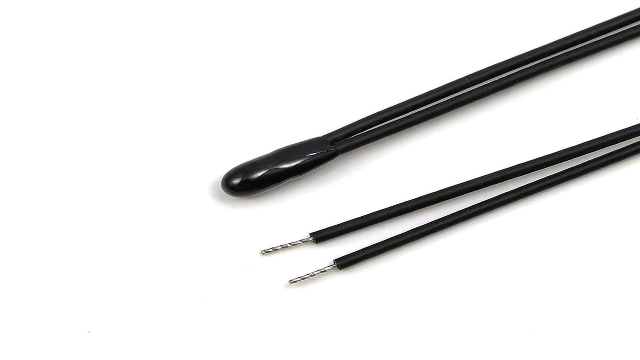

MF52 Temp Measurement NTC Thermistor Series

FOB Price: 0.03 - 0.10 USD/Unit
Supply Ability: 100,000,000 Unit(s) per Year
Shipping: CHANGEABLE
Payment Terms: T/T
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangsu in China
Packaging Details: BAG,BOX,CAHNGEABLE

Quick Details

  • Output: Analog Sensor
  • Theory: Resistance Sensor
  • Usage: Temperature Sensor
  • Brand Name: Nanjing Shiheng Electronic Technology Co., Ltd
  • material: medal
  • Model Number: MF52A/B/C/D/E/DE/F
  • Rated Resistance R25: 0.1-1000
  • B Value(25/50K): 3100-4500
  • Rated Power (mw): 50-
  • Dissi. Coef. (mw/C): 2.0+In Still Air
  • Thermal time Constant(S): 12- In Still Air
  • Operating Temp. (C): -40--125+

Specifications


Applications

Air-condition equipment

Heating apparatus

Electronic thermometer

Liquid level sensor Automobile electricity

Electronic table-board

Battery of mobile telephone


Characteristic

High testing precision

Small size,Fast response

Steady operating for long time

Good quality of coherence and interehange

Scale production,high ratio of features to cost

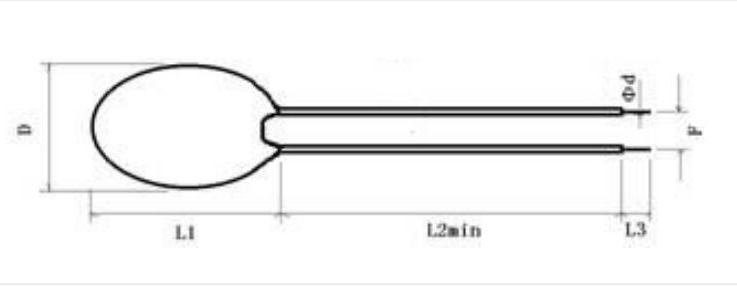

Dimensions(mm)


MF52 Temp Measurement NTC Thermistor Series
MF52 Temp Measurement NTC Thermistor Series
MF52 Temp Measurement NTC Thermistor Series


A:(Tin. Nickle Cu or Cp wire)

Normal dimension table

 Code

Dmax

L1max

L2min

d

±0.05

F

±0.5

A1

2.5

4

25

0.3

1.7

A2

3

4.5

25

0.45

2.2



B:(Enamelled cu wire)

Normal dimension table

 Code

Dmax

L1max

L2min

L3 ±1

D±0.05

B1

2

3.5

 by user determine

3

0.2

B2

3

4

 by user determine

3

0.3


C:

(High-temperature wire)

Normal dimension table



Code

Dmax

L1max

L2min

L3 ±1

Wire AWG

C1

3

7.5

 by user determine

5

30#

C2

4

7.5

 by user determine

5

28#



D:

(Normal temperature wire)

Normal dimension table

Code

Dmax

L1max

L2min

L3 ±1

Wire AWG

D1

3

7.5

 by user determine

5

30#

D2

4

7.5

 by user determine

5

28#



E:

Lead and head are all special specification)

Normal dimension table

Code

Dmax

L1max

L2min

L3 ±1

Wire AWG

E1

by user determine

by user determine

 by user determine

5

by user determine

E2

by user determine

by user determine

 by user determine

5

by user determine



DE:

(Cp Lead Coated with epoxy resin)

Normal dimension table

 Code

Dmax

L1max

L21max

L3

D±0.05

F±0.05

DE1

3

6.0

 55

by user determine

0.3

/

DE2

4

7.5

 35

by user determine

0.45

/


F:

(Tinned steel wire)

Normal dimension table

 Code

Dmax

L1max

L2±1.5

D±0.01

F±0.05

T max

F

3.8

9.5

 17

0.6

2.5

3.5


Main Techno-Parameter


Part No.

Rated Resistance R25(KΩ )

B Value(25/50°KΩ)

Rated Power (mw)

Dissi. Coef. (mw/°C)

Thermal time Constant(S)

Operating Temp. (°C)

MF523100

0.1  ~20

3100

50

2.0

in Still Air

12

in Still Air

-40~+125°C

MF52 3270

0.2  ~20

3270

MF52 3380

0.5  ~50

3380

MF52 3470

0.5  ~50

3470

MF52 3600

1  ~100

3600

MF52 3950

5  ~100

3950

MF52 4000

5  ~100

4000

MF52 4050

5  ~200

4050

MF52 4150

10  ~250

4150

MF52 4300

20  ~1000

4300

MF52 4500

20  ~1000

4500
