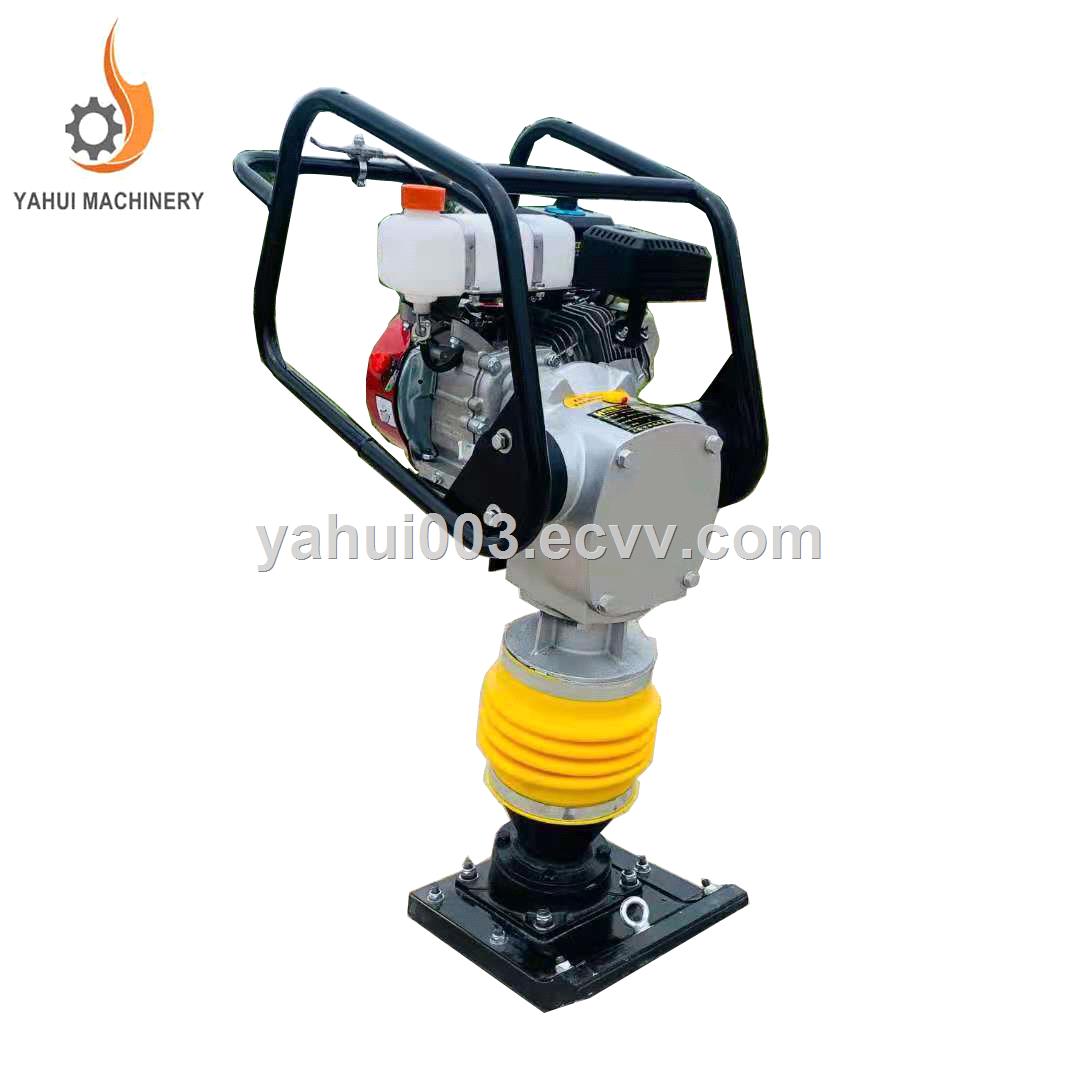

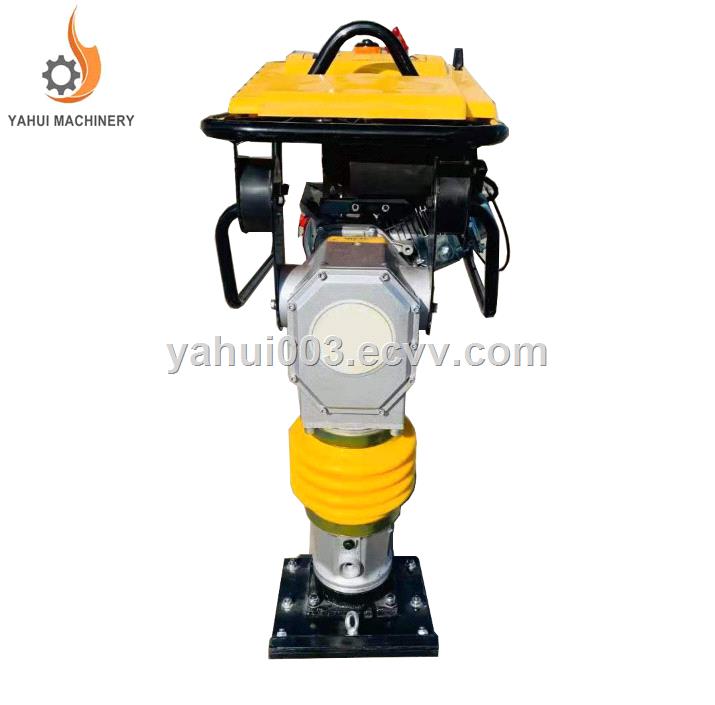

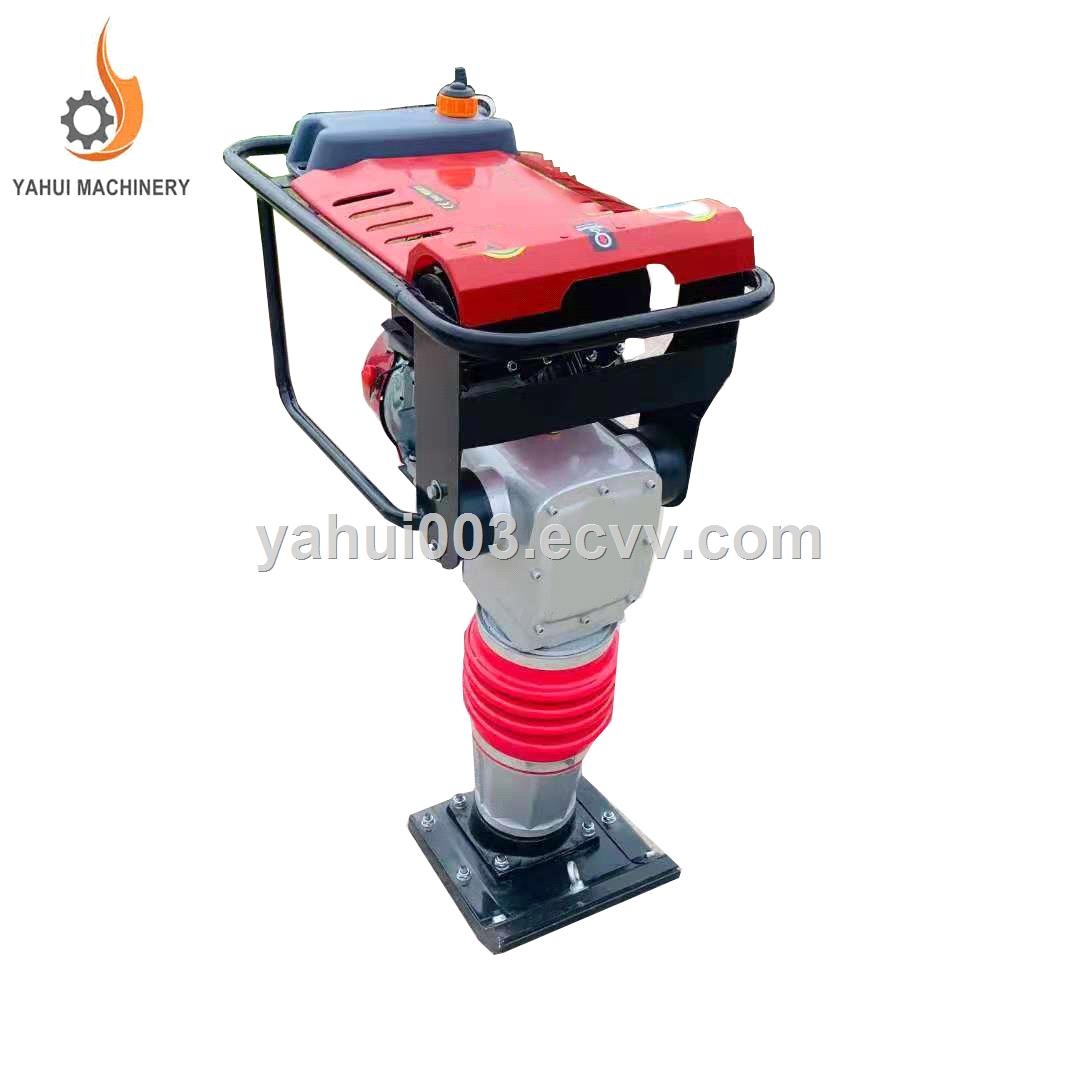

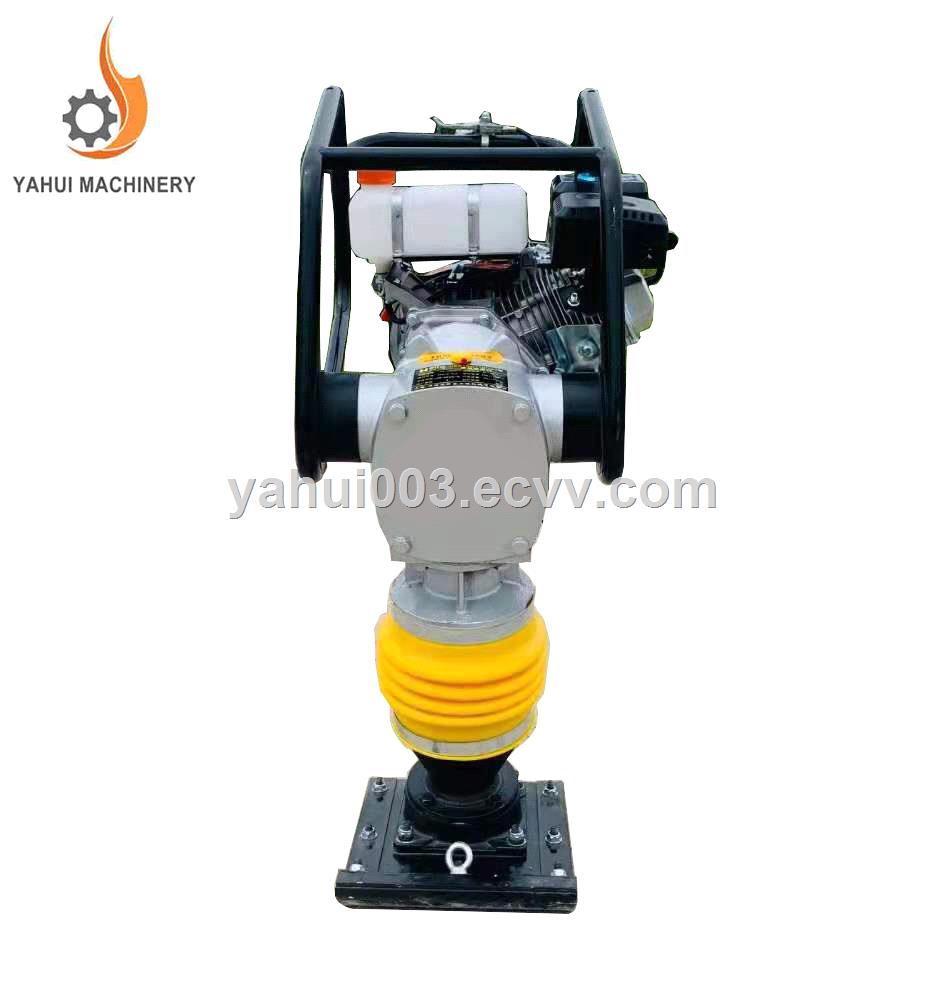

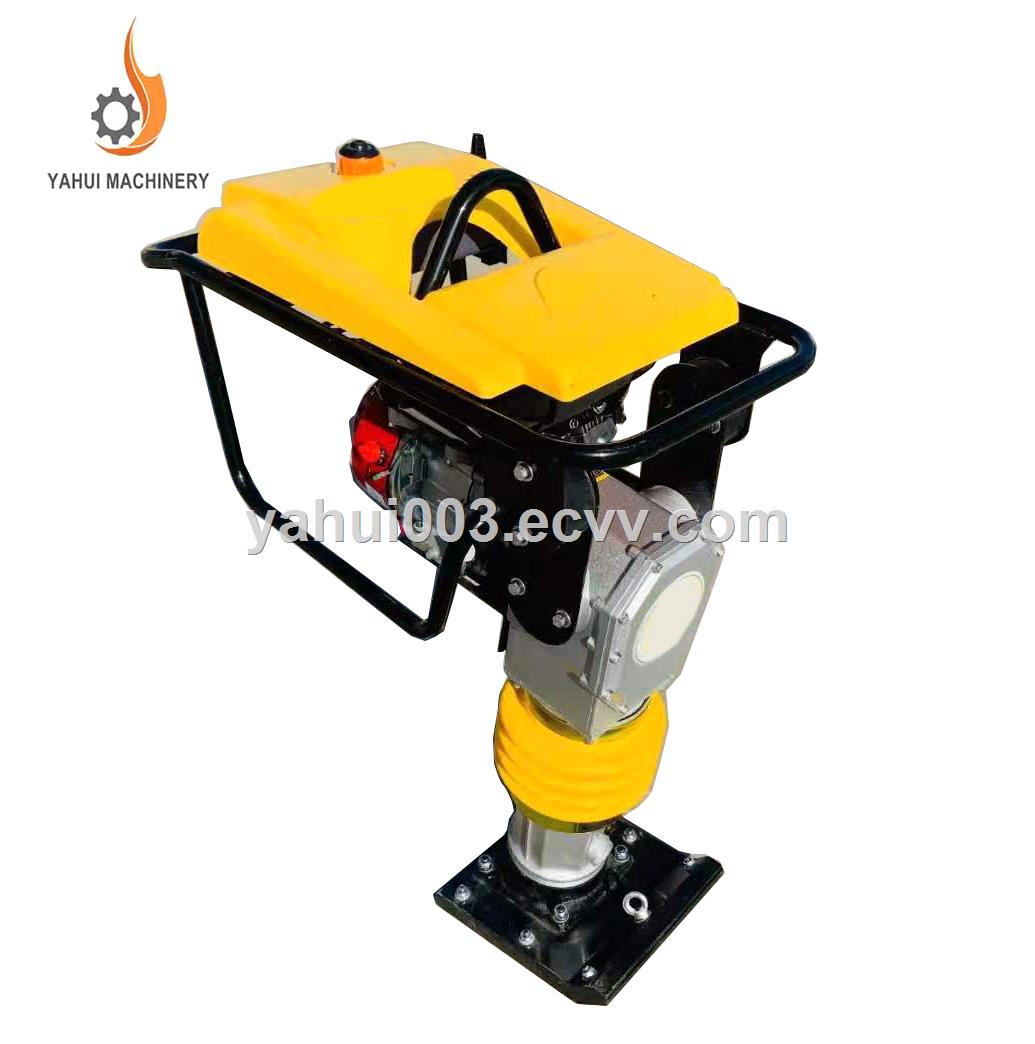

Factory Supply Soil Tamping Machine Vibratory Impact Rammer, Small Earth Compactor, Compacting Machine

FOB Price:	300.00 - 350.00 USD/Box
Supply Ability:	50,000 Case(s) per Year
Shipping:	by sea, by railway
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	wooden case.5005501000mm

Quick Details

Certification: quality
Weight: 85kg
Power(W): 56-90N.m
Brand Name: jiasi
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Dimension(L*W*H): 500*550*1000mm
Voltage: 220V,380V
Impacting: 56-9n.m
power: 5.5hp
fuel: gasoline
size: 500*550*1000

Specifications

the following example is for you reference.

1.Brief Introduction:

this series of vibratory impact rammer is not only suitable for sand, gravel, three clays, sand soil compaction, but also suitable for asphalt sand, asphalt gravel concrete and clay compaction.It is widely used in highway, municipal, road, railway engineering subgrade slope compaction and maintenance.It can also be used for the foundation compaction of Bridges, reservoirs and dykes, as well as the construction of narrow places such as grooves, indoor ground, courtyards and wall roots.

2.Techincal parameters:

Technical parameters

Parameters\|type	HCR70,80,85,90,100,110	HCD70,80,85,90,100,110
Working weight, kg	70-110	70-110
Impact times per minute	250-750	420-750
Impact strength, N.M	56-90	56-90
Starting height, mm	40-65	40-65
Forwarding speed, mm	10-13	10-13
Dimension of tamping plate, mm	250*335	280*300
Power	Max. Power/Rev 5.5-6.5Ps/3600rpm	Max. Power/Rev 2.2-3kw/2850 rpm
	4Stroke air-cooled	Voltage 380V
	Fuel consumption power: 310g/kwh	Electricity current 5.2A

3.Performance features:

Main structure and principle

1. Hcr70, 80, 85, 90, 100 and 110 impact rammers are composed of gasoline engine, clutch, crankcase, connecting rod spring of large and small gears, piston rod, inner cylinder block, outer cylinder block, ramming plate, dustproof rod box, etc. Except that the power of hcd70, 80, 85, 90, 100 and 110 impact rammers is motor, other structures are the same as hcr70, 80, 85, 90, 100 and 110 impact rammers.

2. When the impact rammer works, the power is transmitted to the pinion through the transmission device. after one-stage deceleration, the piston rod is driven to move up and down through the connecting rod on the eccentric shaft of the big gear, forcing the spring to absorb and release the energy, so that the rammer can take off and tamp the ground quickly. In addition, because the rammer tilts forward at a certain angle, the impact rammer can move forward freely during rapid impact.
