Solar Panel Parallel Connectors with Fuse Inline Mc4 y Connector for Solar Panels Series Parallel Solar Panel Connection

FOB Price: 15.56 - 39.50 USD/Set
Supply Ability: 50,000 Set(s) per Month
Shipping: Express/Sea
Payment Terms: T/T
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Standard packing

Quick Details

  • Gender: Female & male
  • Application: Solar panel system
  • Type: Solar parallel connectors
  • Brand Name: NSPV
  • Color: Black/Red
  • Model Number: 1500VDC Solar Y Connectors in line fuse

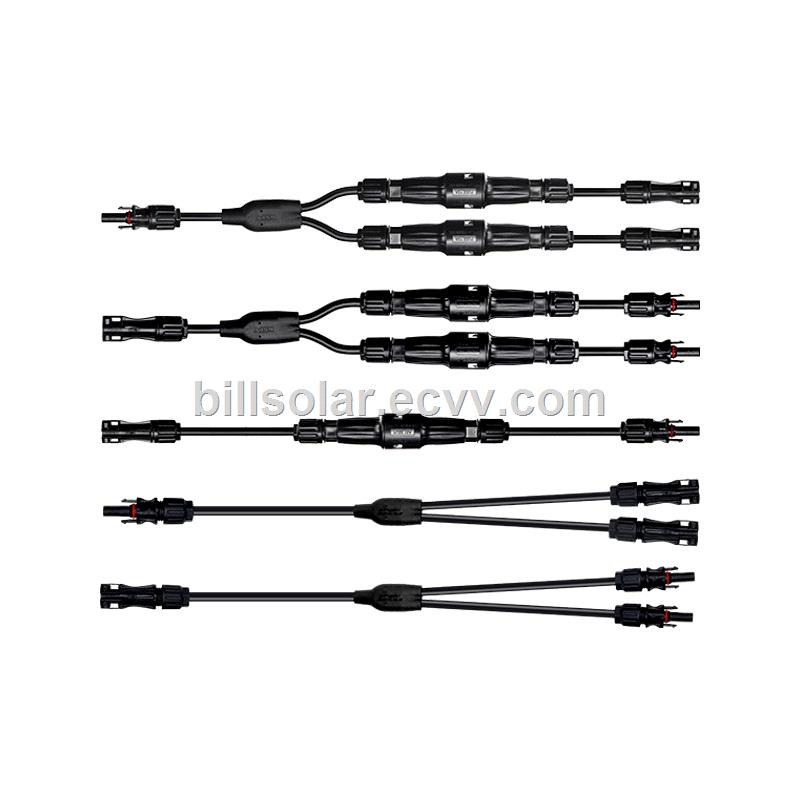

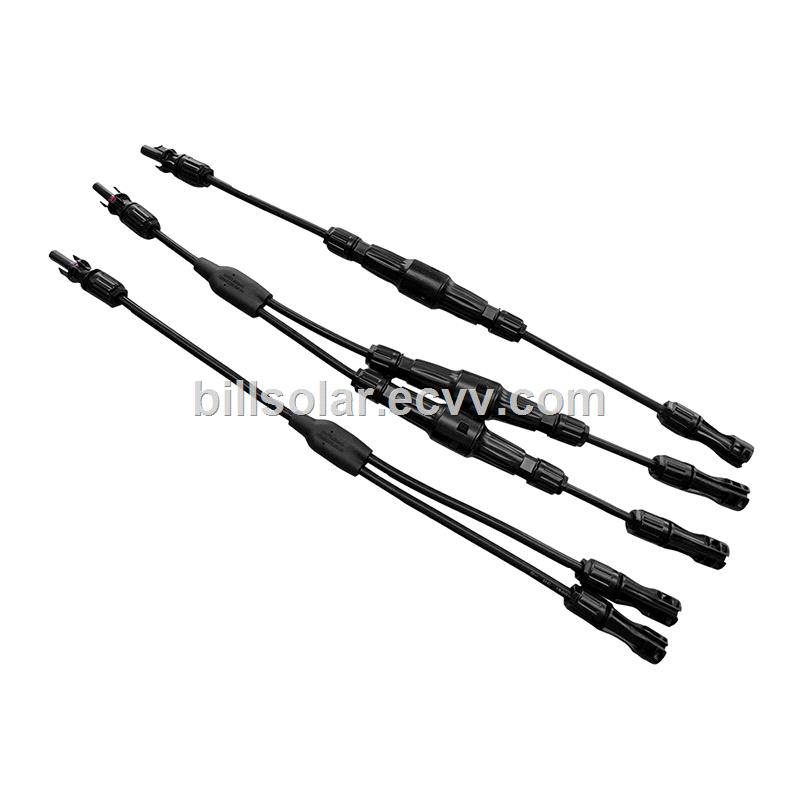

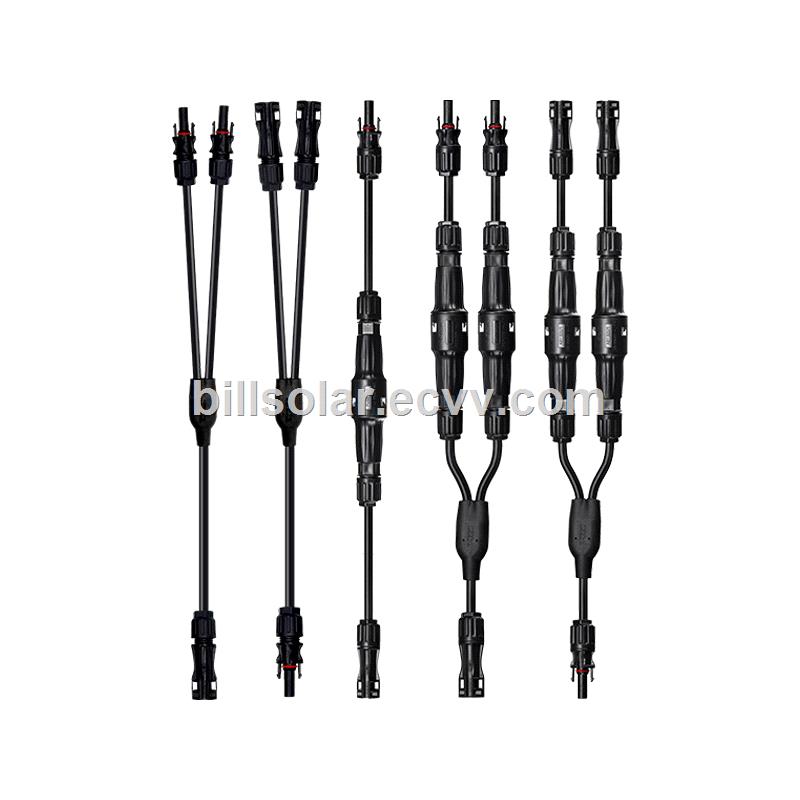

  • 1. solar parallel connectors: 2F1M/2M1F with cable
  • 2. solar straight cable harness with fuse: 4F2-15 with 4CN/P-15

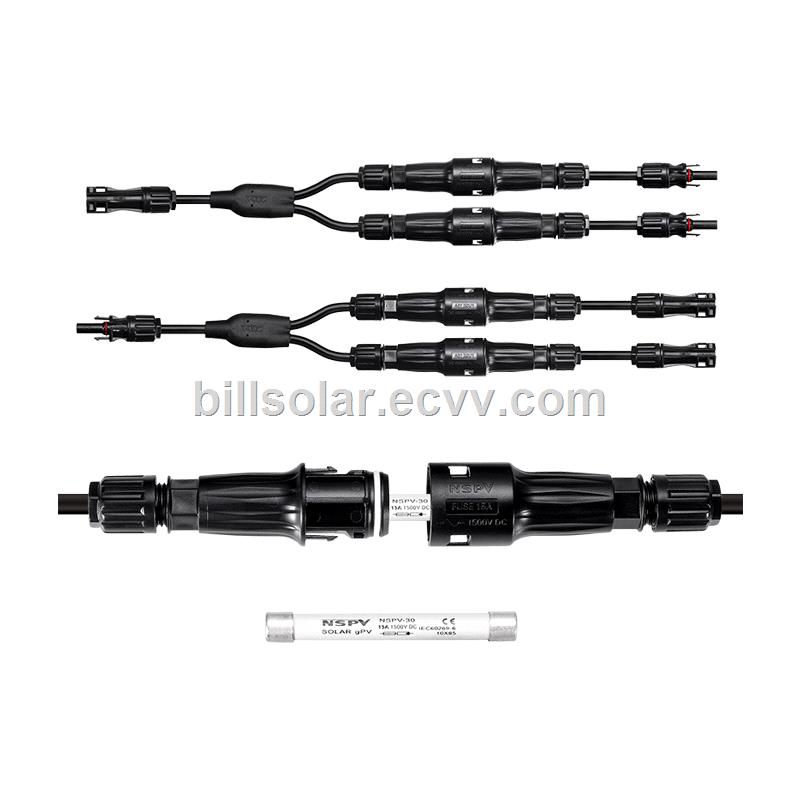

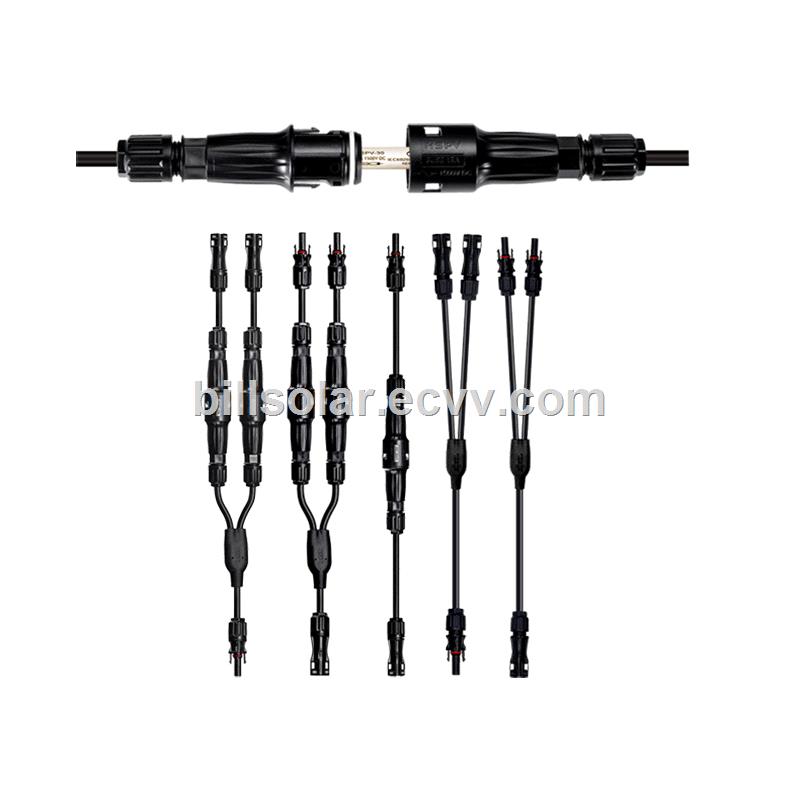

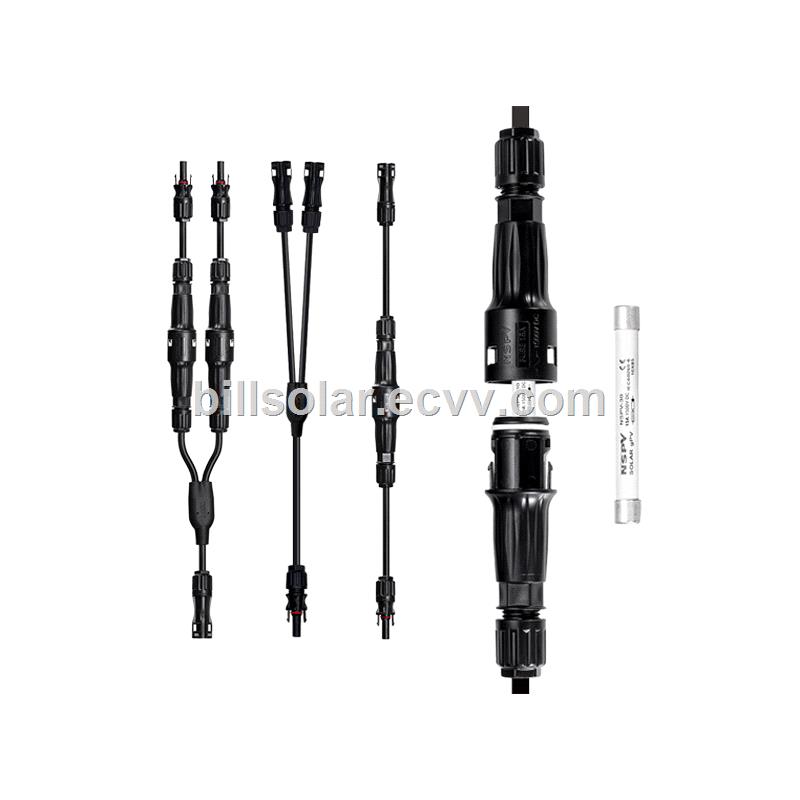

  • 3. solar parallel connectors with fuse: 4F2-15 with cable & 4CN/P-15

Specifications

1500VDC solar panel parallel connectors with fuse inline
Specifications:

Insulation material
PPE/TPE/PA
Safety degree
II
Rated voltage
1500VDC
Flame class
UL94-V0
Rated Impulse voltage
12KV
Installation type
Outdoor,UV resistant(F1)
Test voltage
8kV(50Hz,1min)
Ambient temperature range
-40℃+85℃(IEC)
Contact resistance
≤ 0.25 mΩ
Suitable cable cross sections
1.5~10mm2/16~8AWG
Contact material
Copper,Tin plated
Connecting system
Crimp connection
Degree of protection
IP68(1m,1H)
Upper limiting temperature
110℃(IEC)
Overvoltage category/Pollution degree
CATIII/2
Regulatory approval
TUV/CE(IEC62852:2014)

Solar panel parallel connectors with fuse inline mc4 y connector for solar panels series parallel solar panel connection
