Home  >Products Catalog > Solar connectors > Solar Cable Connectors 1500VDC PV Connectors Match Mc4-Evo2 10mm2 Mc4 Plug Connector 4mm 6mm Solar Panel Wire Connector

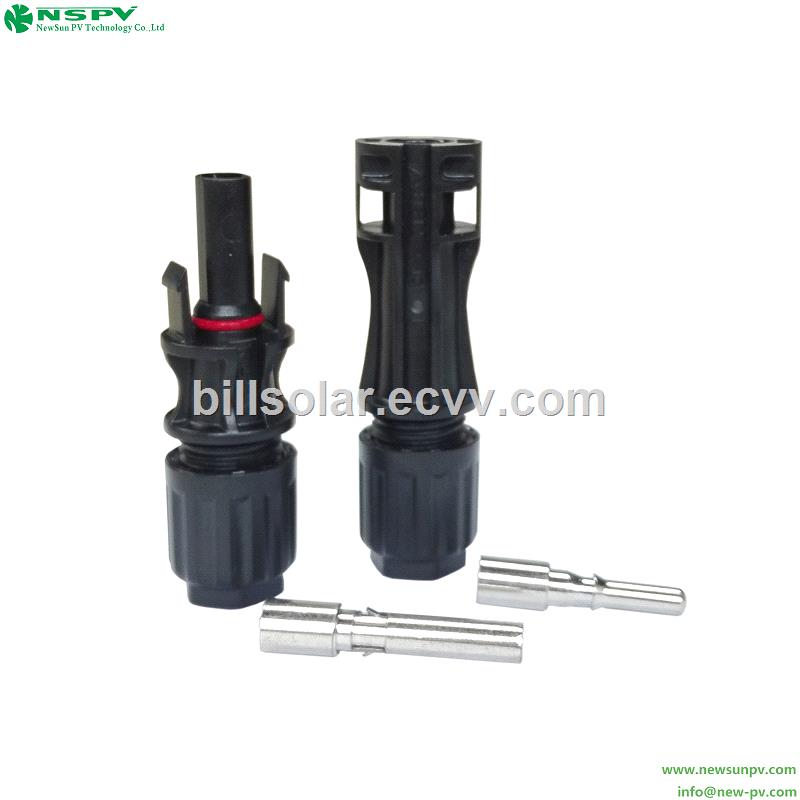

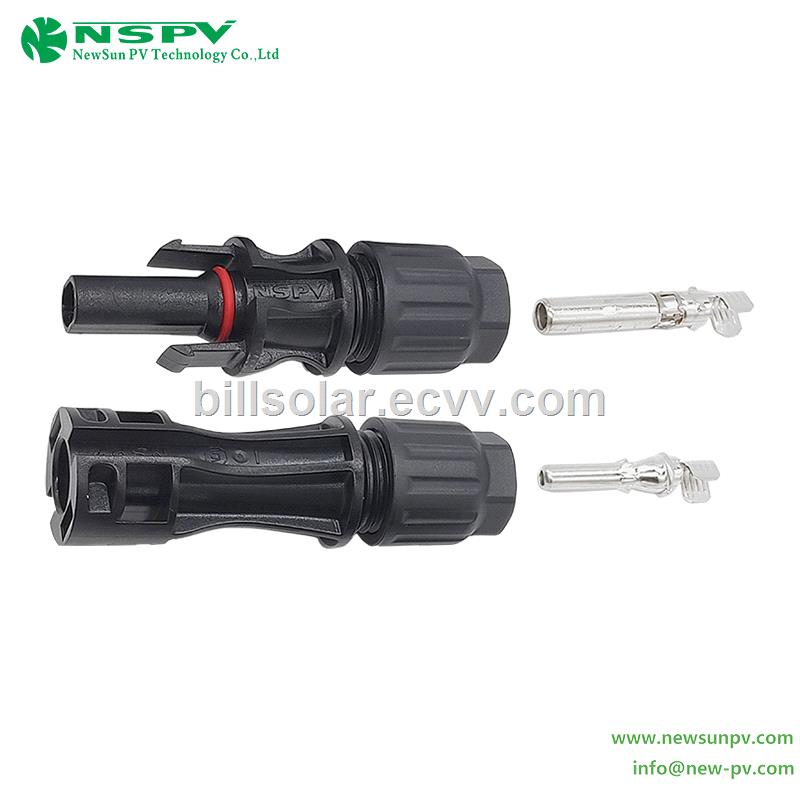

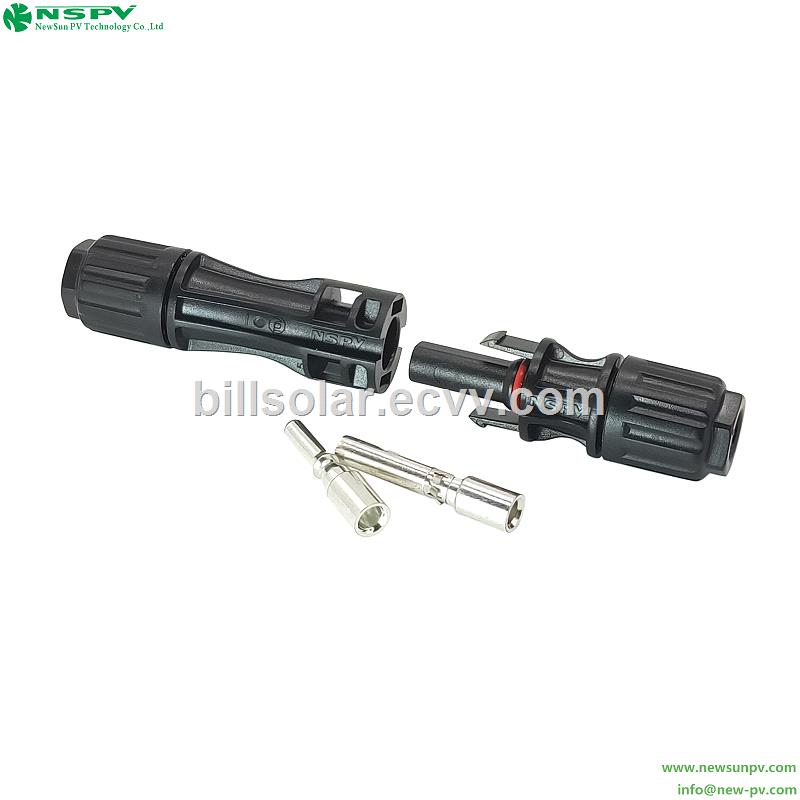

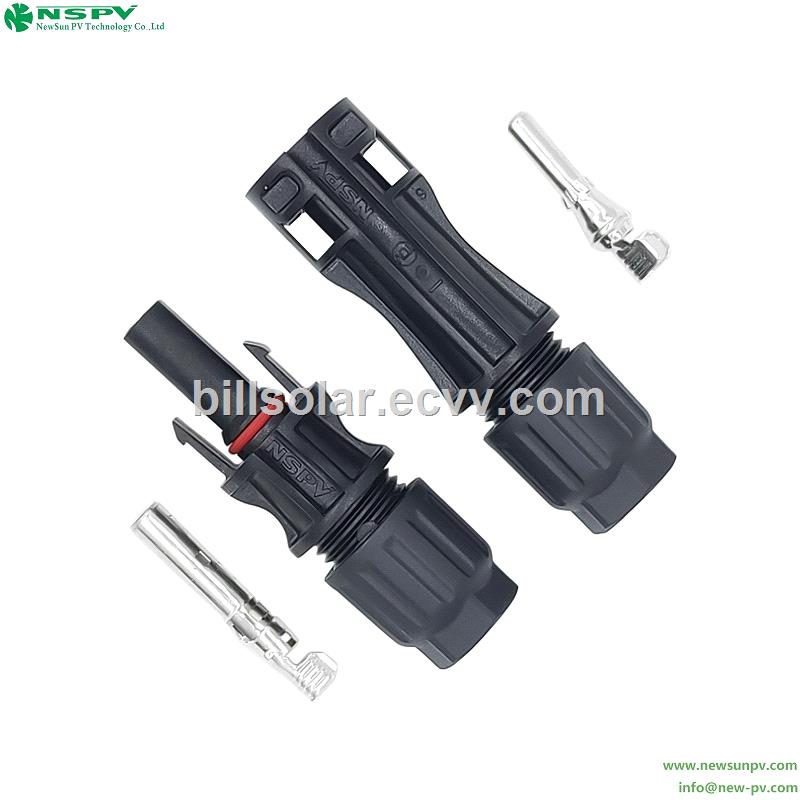

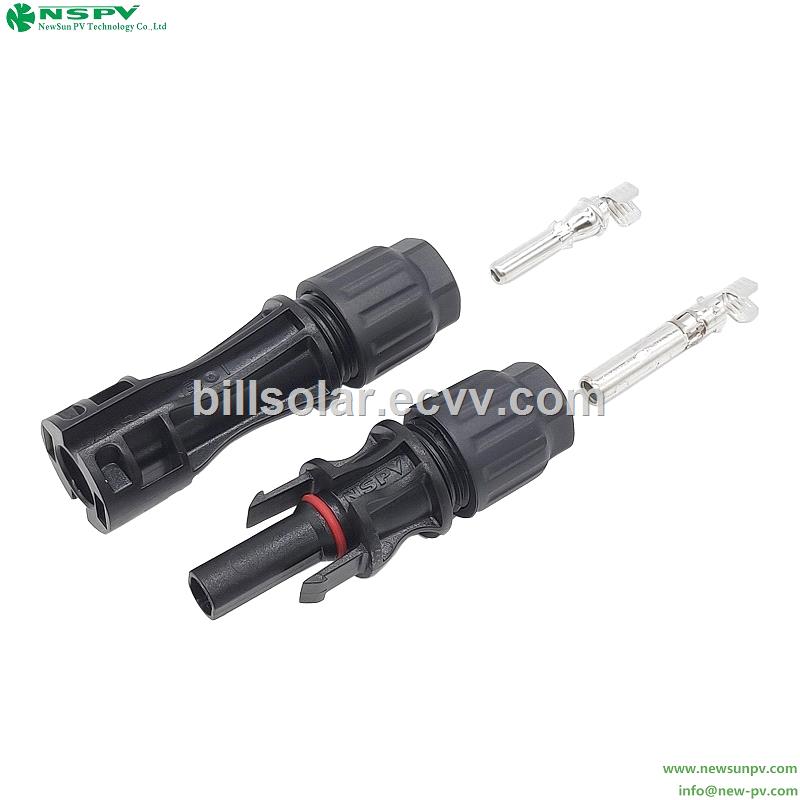

Solar Cable Connectors 1500VDC PV Connectors Match Mc4-Evo2 10mm2 Mc4 Plug Connector 4mm 6mm Solar Panel Wire Connector

FOB Price: 1.20 - 1.90 USD/Pair
Supply Ability: 200,000 Pair(s) per Month
Shipping: Express/Sea
Payment Terms: T/T
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Standard packing

Quick Details

  • Gender: Female & male
  • Application: Solar panel system
  • Type: MC4 pv connectors
  • Brand Name: NSPV
  • Color: Black
  • Model Number: 4CN-15/4CP-15
  • Name: Solar cable connectors
  • 4CN-15: Male Connector
  • 4CP-15: Female Connector
  • Terminal pins: Stamping pin&Lathing pin
  • Cable Size: 10.0mm2& 8AWG

Specifications

1500VDC PV4.0 Cable Connector Specifications

Insulation material
PPE/PA
Safety degree
II
Rated voltage
1500VDC
Flame class
UL94-V0
Rated Impulse voltage
12KV
Installation type
Outdoor,UV resistant(F1)
Test voltage
8kV(50Hz,1min)
Ambient temperature range
-40℃+85℃(IEC)
Contact resistance
≤ 0.25 mΩ
Suitable cable cross sections
1.5~10mm2/16~8AWG
Contact material
Copper,Tin plated
Connecting system
Crimp connection
Degree of protection
IP68(1m,1H)
Nut cap locking force
1.5-1.8Nm
Overvoltage category/Pollution degree
CATIII/2
Upper limiting temperature
110℃(IEC)
Regulatory approval
TUV/CE(IEC62852:2014)
Rated Impulse voltage
16kV
Solar cable connectors 1500VDC solar pv connectors match staublimc4 evo2 mc4 10mm2 solar panel wire connector mc4 plug
Solar Cable Connectors 1500VDC PV Connectors Match Mc4Evo2 10mm2 Mc4 Plug connector 4mm 6mm Solar Panel Wire Connector
