Solar Inverter Connector Inverter-Connectors Solar Inverter AC Connectors Solar AC Connectors 3p 5p Cable To Panel Ends

FOB Price: 5.00 - 9.00 USD/Pair
Supply Ability: 80,000 Pair(s) per Month
Shipping: Express/Sea
Payment Terms: T/T
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Standard packing

Quick Details

  • Gender: Female & male

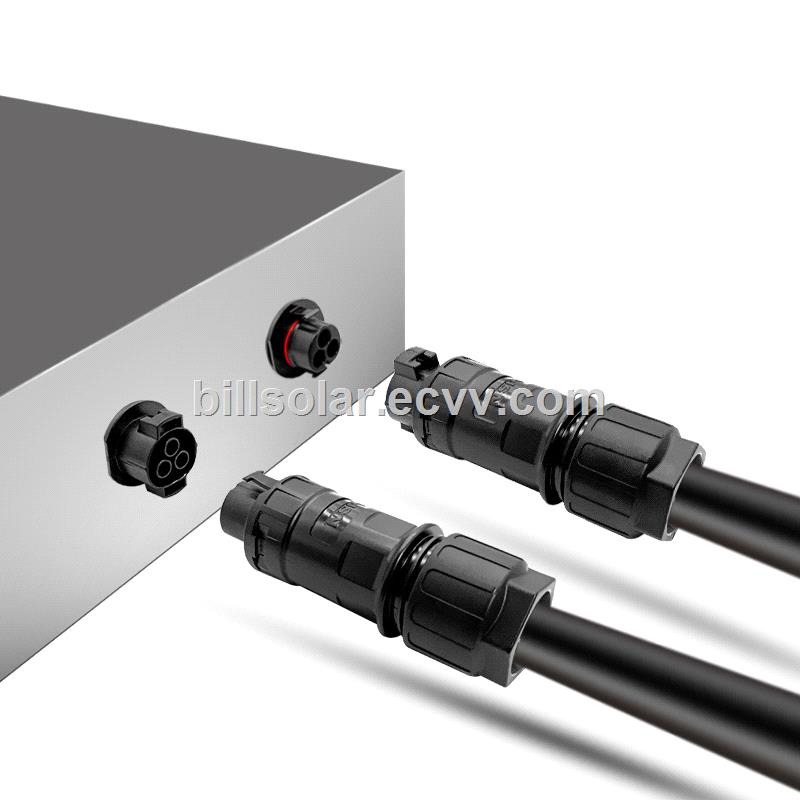

  • Application: Solar inverter & pv combiner box
  • Type: Solar AC connector
  • Brand Name: NSPV
  • Color: Black
  • Model Number: 3PCF/3PCM/3PPF/3PPM or 5PCF/5PCM/5PPF/5PPM
  • 3PCF: 3p cable female
  • 3PCM: 3p cable male
  • 3PPF: 3p panel female
  • 3PPM: 3p panel male
  • 5PCF: 5p cable female
  • 5PCM: 5p cable male
  • 5PPF: 5p panel female
  • 5PPM: 5p panel male

Specifications

Solar Inverter AC Connectors Specifications

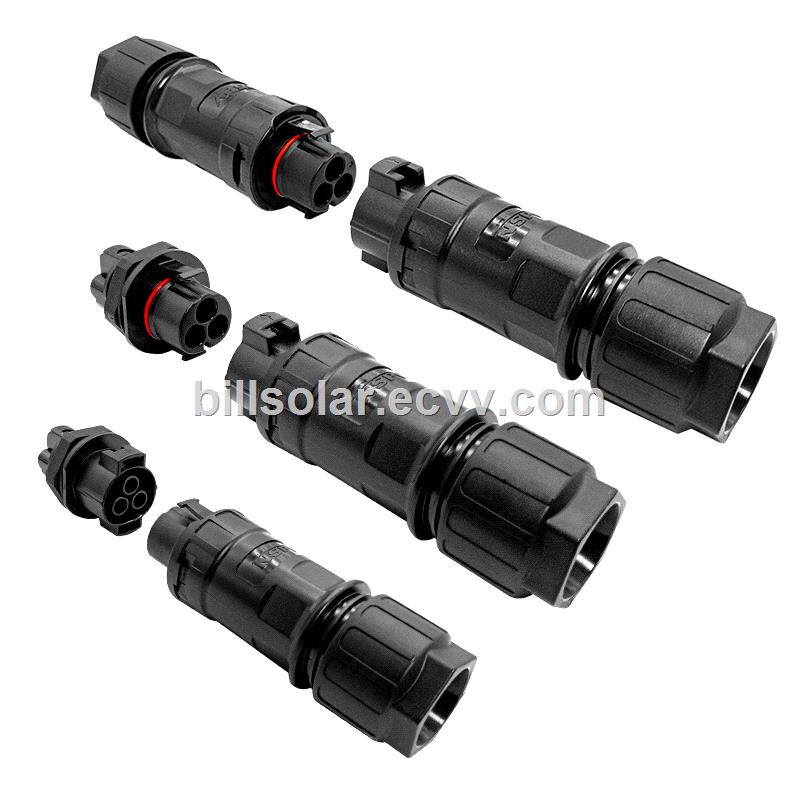

AC3P Connector II
Product Specifications
Insulation Material PPE/PA Safety Degree  II
Rated Current Max.50A(10sqmm) Flame Class UL94-V0
Rated Voltage 500V AC Suitable Cable OD Max. Φ21mm
Test Voltage 4kV Ambient Temperature range -40+85(IEC)
Typical Contact resistance 0.25 mΩ Suitable Cable cross sections 2.5~6mm2/14~10AWG
Contact Material Copper,Tin Plated Connecting System Screw/crimping Connection
Degree of protection IP68 Insulation Resistance 1000 MΩ
Contaction Diameter/number of contact 4.0x3 Standard EN 61984
Solar inverter connector inverterconnectors solar inverter ac connectors solar ac connectors 3p 5p cable to panel ends

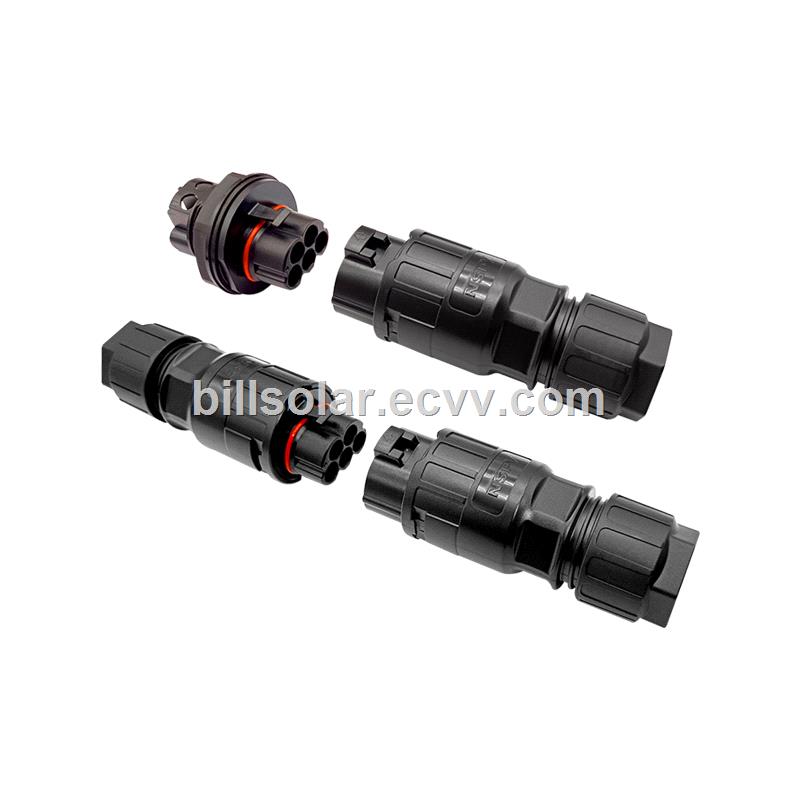

AC5P Connector II
Product Specifications
Insulation Material PPE/PA Safety Degree  II
Rated Current Max.50A(10sqmm) Flame Class UL94-V0
Rated Voltage 500V AC Suitable Cable OD Max. Φ21mm
Test Voltage 4kV Ambient Temperature range -40+85(IEC)
Typical Contact resistance 0.25 mΩ Suitable Cable cross sections 2.5~6mm2/14~10AWG
Contact Material Copper,Tin Plated Connecting System Screw/crimping Connection
Degree of protection IP68 Insulation Resistance 1000 MΩ
Contaction Diameter/number of contact 4.0x5 Standard EN 61984

Solar inverter connector inverterconnectors solar inverter ac connectors solar ac connectors 3p 5p cable to panel ends
